THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

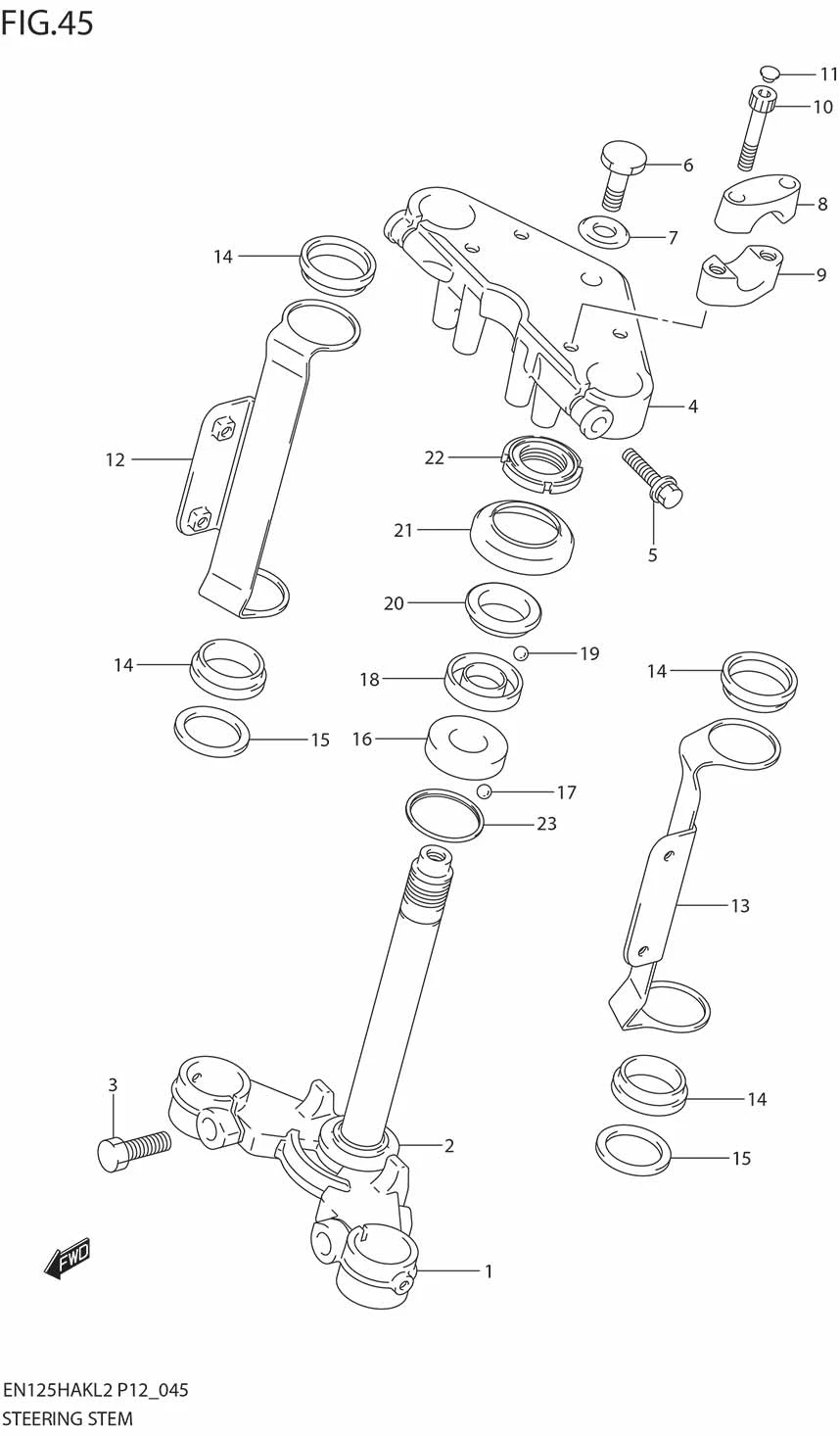

FIG.45 STEERING STEM

FIG.45 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-26H30-000 STEM, STEERING 1 Rp306.000
2 51622-45FA0-000 RACE, OUTER LOWER 1 Rp28.500
3 01570-1235B-000 BOLT, STEM 2 Rp15.500
4 51311-45F10-000 HEAD, STEERING STEM 1 Rp452.500
5 01580-0840B-000 BOLT, HEAD 2 Rp10.500
6 51351-05300-000 BOLT, STEM HEAD 1 Rp25.500
7 51356-05300-000 WASHER, STEM HEAD 1 Rp12.500
8 56211-45F10-000 HOLDER, HANDLE UPPER 2 Rp36.000
9 56221-45F10-000 HOLDER, HANDLE LOWER 2 Rp38.000
10 07130-0845B-000 BOLT 4 Rp5.500
11 09250-06011-000 CAP 4 Rp18.500
12 51530-45F10-000 BRACKET, HEADLAMP RH 1 Rp58.500
13 51540-45F10-000 BRACKET, HEADLAMP LH 1 Rp58.500
14 51553-29312-000
SUB: 51553-29311-000		 DAMPER, HEADLAMP BRACKET 4 Rp10.500
15 51555-45F00-000 SPACER, HEADLAMP BRACKET 2 Rp13.500
16 51611-33002-000 RACE, INNER LOWER 1 Rp82.000
17 06111-08003-000 STEEL BALL, LOWER 18 Rp8.500
18 51611-20002-000 RACE, INNER UPPER 1 Rp55.500
19 06111-06004-000
SUB: 06111-06003-000		 STEEL BALL, UPPER 22 Rp1.000
20 51621-28000-000 RACE, OUTER UPPER 1 Rp23.000
21 51643-36H00-000 DUST SEAL 1 Rp19.000
22 51631-28000-000 NUT, STEERING STEM 1 Rp27.000
23 51644-45FA0-000 SEAL, STEERING LOWER 1 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
