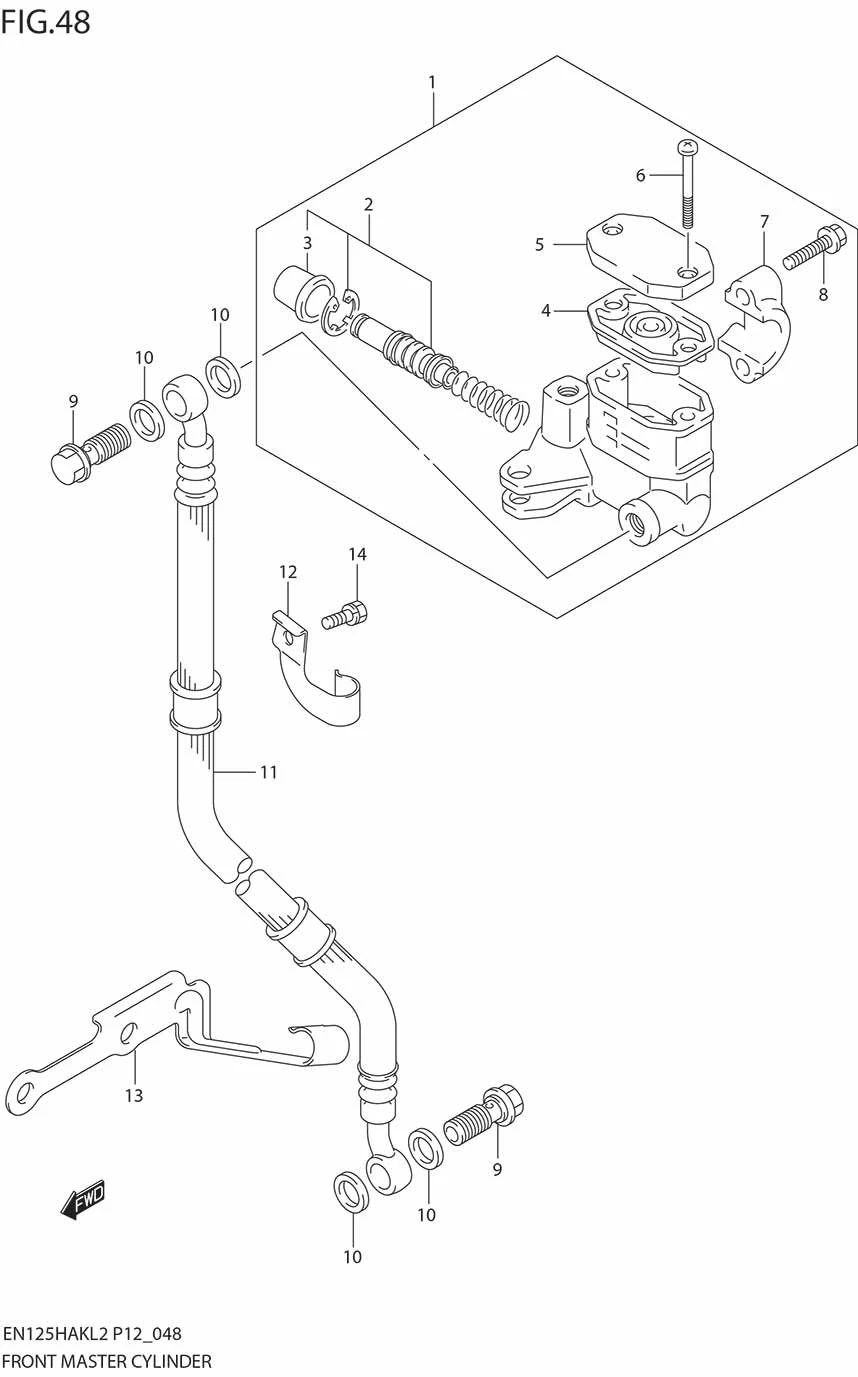

FIG.48 FRONT MASTER CYLINDER

FIG.48 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-053D0-000 CYLINDER ASSY, FRONT MASTER 1 Rp230.500
2 59600-45880-000 ?PISTON/CUP SET 1 Rp54.000
3 59666-44300-000 ??BOOT 1 Rp16.000
4 59667-053B0-000 ?DIAPHRAGM 1 Rp18.000
5 59669-053B0-000 ?CAP, RESERVOIR 1 Rp39.500
6 02112-0435B-000 ?SCREW, RESERVOIR 2 -
7 59671-053A1-000 ?HOLDER 1 Rp28.500
8 01547-0625A-000
SUB: 01547-0625B-000		 ?BOLT 2 Rp6.500
9 09360-10061-000 BOLT (10X1.00X22) 2 Rp36.500
10 09161-10009-000 WASHER 4 Rp12.500
11 59480-26H20-000 HOSE, BRAKE 1 Rp130.000
12 59246-26H20-000 CLAMP, BRAKE HOSE 1 Rp9.000
13 59268-26H10-000 CLAMP, BRAKE HOSE NO.2 1 Rp20.000
14 01570-0612B-000 BOLT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
