THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

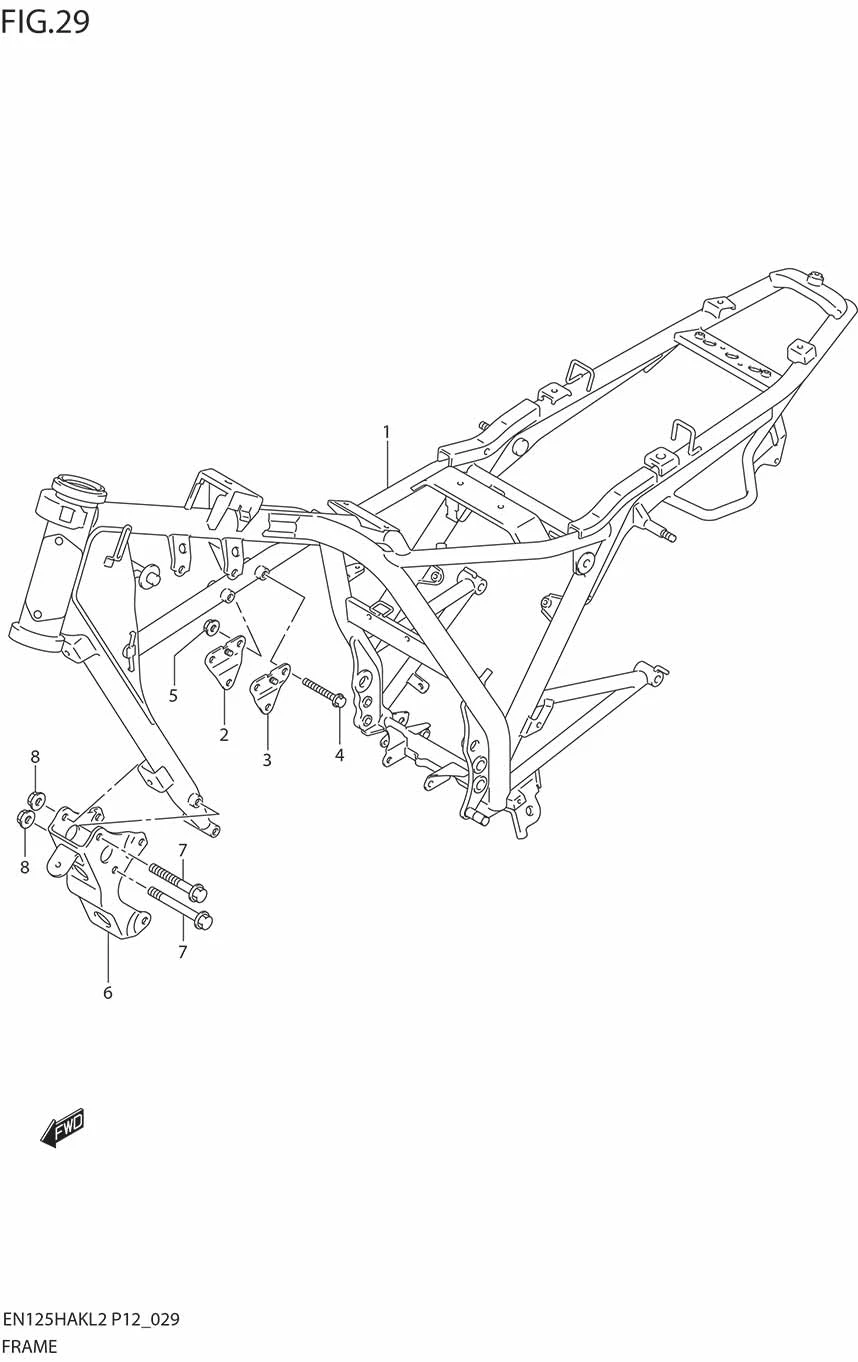

FIG.29 FRAME

FIG.29 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-26H20-000 FRAME 1 -
2 41970-26H00-000 PLATE, MOUNT UPPER RH 1 Rp28.000
3 41980-26H00-000 PLATE, MOUNT UPPER LH 1 Rp28.000
4 09103-08081-000 BOLT 2 Rp18.500
5 08319-3108A-000 NUT 2 Rp4.000
6 41992-05322-000 BRACKET, MOUNT LOWER 1 Rp83.000
7 01550-0865B-000
SUB: 01550-0865A-000		 BOLT, LOWER 2 Rp8.500
8 08319-3108A-000 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
