THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

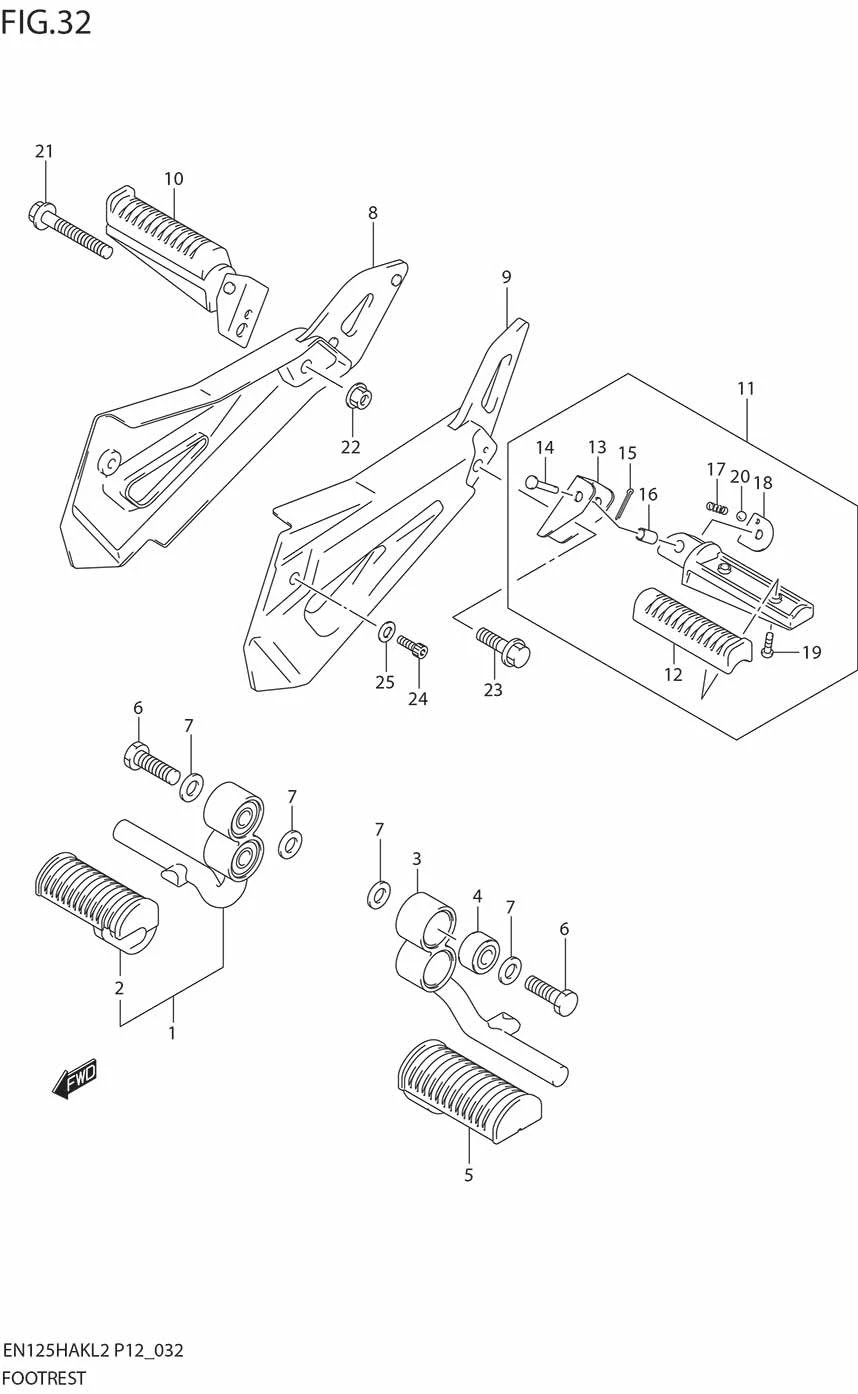

FIG.32 FOOTREST

FIG.32 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43501-45F20-000
SUB: 43501-45F50-000		 FOOTREST ASSY, FRONT RH 1 Rp177.000
2 43551-36500-000 ?RUBBER, RH 1 Rp50.500
3 43521-45F10-000 BAR, FRONT LH 1 -
4 09319-10033-000 BUSH 2 -
5 43551-05500-000 RUBBER 1 Rp54.500
6 43539-45F00-000 BOLT 4 Rp4.500
7 09160-10059-000
SUB: 09160-10124-000		 WASHER 8 Rp3.500
8 43811-45F10-000 COVER, RH 1 Rp164.500
9 43821-45F11-000 COVER, LH 1 Rp164.500
10 43600-45F10-000
SUB: 43600-45F00-000		 FOOTREST, PILLION RH 1 Rp122.000
11 43700-45F10-000
SUB: 43700-45F00-000		 FOOTREST, PILLION LH 1 Rp122.000
12 43550-45F00-000 ?RUBBER 2 Rp52.000
13 43621-45F00-000 ?HOLDER 2 Rp101.500
14 DISCONTINUE
SUB: 09200-06040-000		 ?PIN 2 -
15 04111-2015A-000
SUB: 04111-16146-000		 ?COTTER PIN 2 Rp4.500
16 DISCONTINUE
SUB: 43611-45F00-000		 ?SPACER 2 -
17 DISCONTINUE
SUB: 43613-45F00-000		 ?SPRING 2 -
18 43614-05700-000
SUB: 43614-45F00-000		 ?PLATE 2 Rp4.500
19 02112-05143-000 ?SCREW 4 Rp3.500
20 06111-08004-000 ?STOPPER 2 Rp3.500
21 01550-1060A-000
SUB: 01550-1060B-000		 BOLT, RH 1 Rp5.500
22 08316-1010A-000
SUB: 08316-1010B-000		 NUT, RH 1 Rp3.500
23 01550-1030B-000 BOLT, LH 1 Rp25.500
24 DISCONTINUE
SUB: 07130-0620B-000		 BOLT, FRONT 2 -
25 08322-0106B-000 WASHER 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
