THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

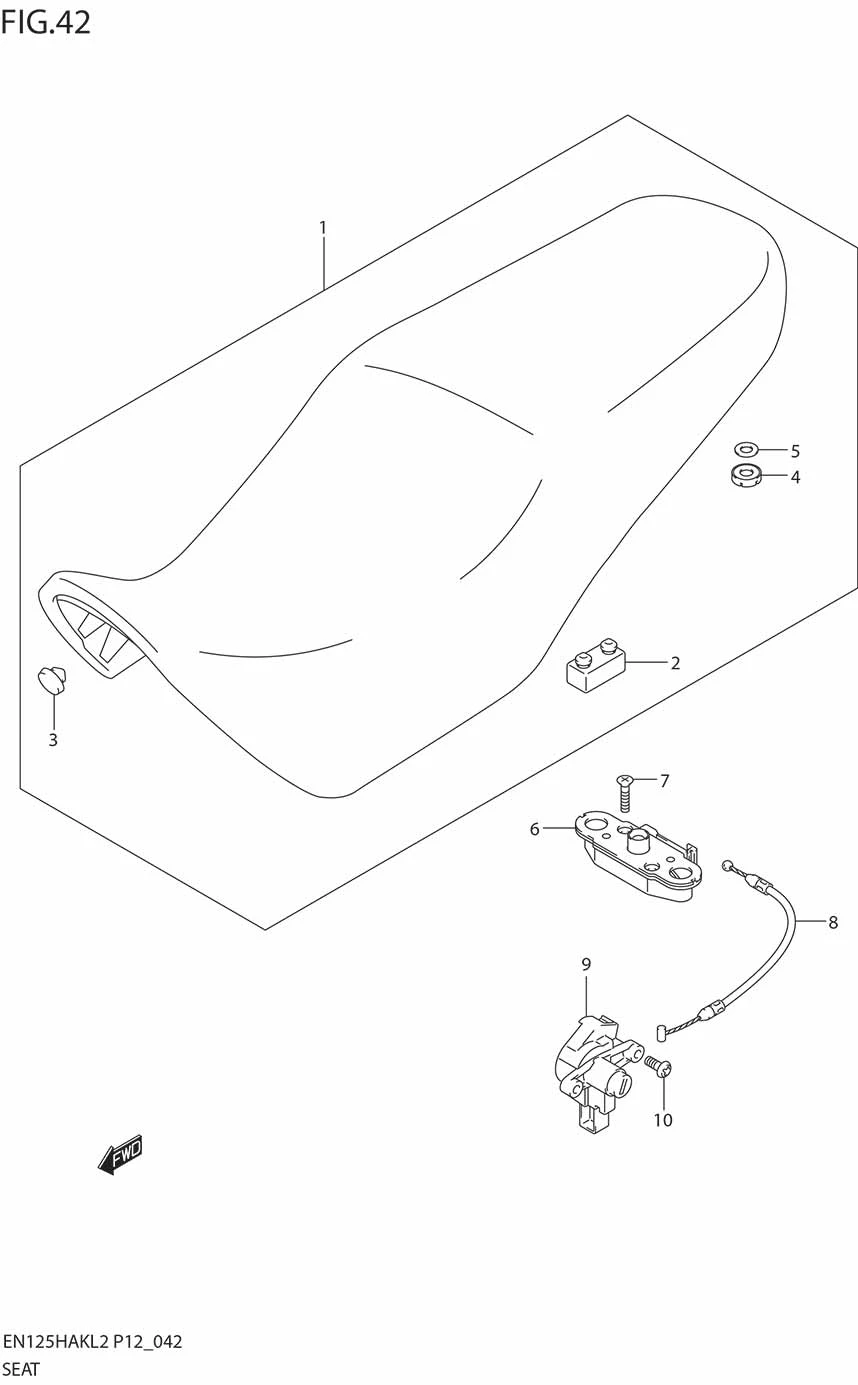

FIG.42 SEAT

FIG.42 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-45FC0-000 SEAT ASSY 1 -
2 45149-45F00-000 ?CUSHION 4 Rp12.500
3 DISCONTINUE
SUB: 09329-10001-000		 ?CUSHION 2 -
4 45213-13601-000 ?CUSHION 2 Rp21.000
5 08322-0110B-000 ?WASHER 2 Rp4.500
6 45220-45F01-000 BRACKET, SEAT SUPPORT 1 Rp52.500
7 02122-0630B-000 SCREW 2 Rp15.500
8 45280-45F00-000 CABLE SEAT LOCK 1 Rp21.000
9 DISCONTINUE
SUB: 95700-45F00-000		 LOCK ASSY, SEAT 1 -
10 09139-06164-000 SCREW (6X14) 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
