THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

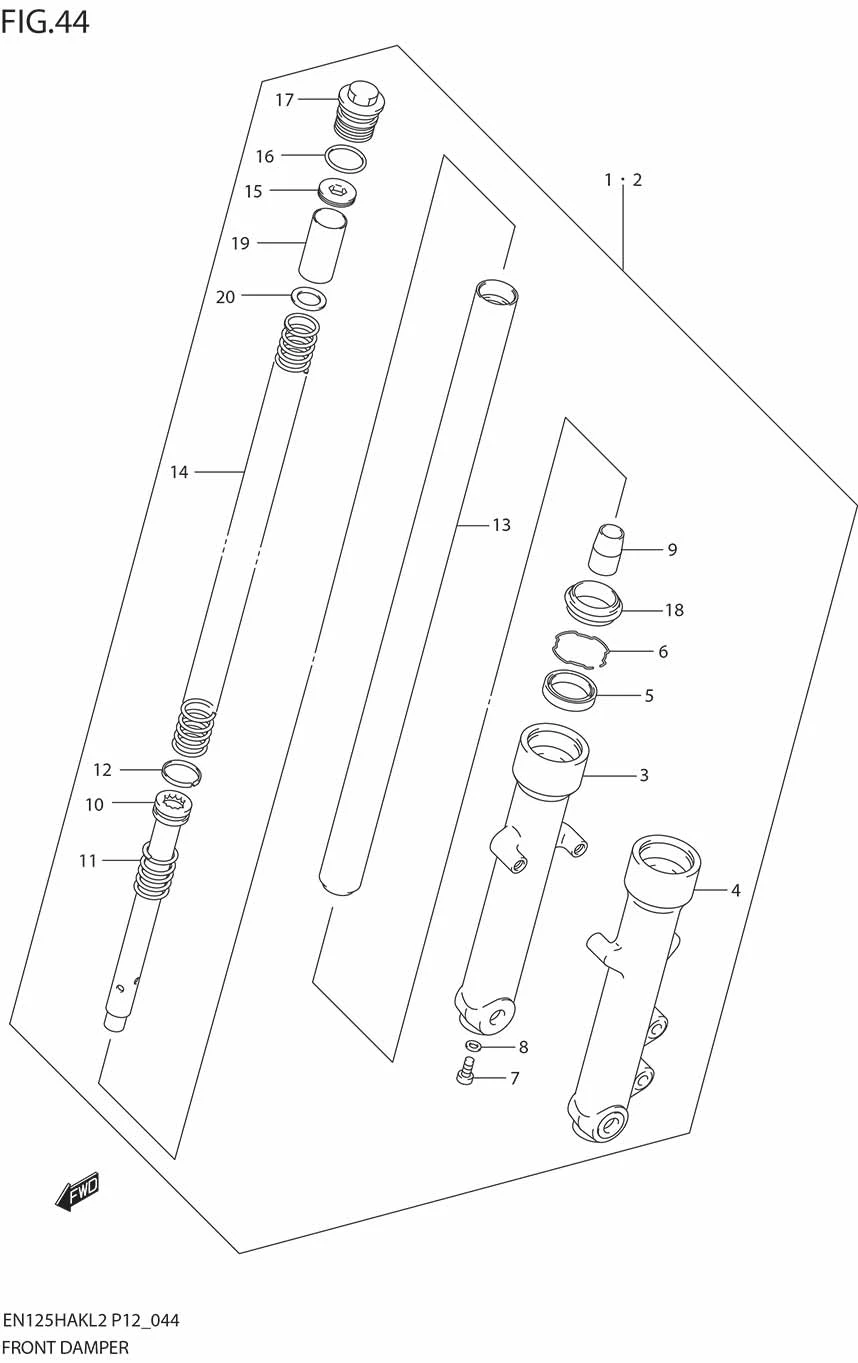

FIG.44 FRONT DAMPER

FIG.44 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-45F40-000 DAMPER ASSY, FRONT FORK RH 1 Rp780.000
2 51104-45F40-000 DAMPER ASSY, FRONT FORK LH 1 Rp780.000
3 51130-45F40-000 ?TUBE, OUTER RH 1 Rp348.000
4 51140-45F40-000 ?TUBE, OUTER LH 1 Rp348.000
5 51153H45F10H000
SUB: 51153-45F40-000		 ?OIL SEAL 2 Rp44.500
6 51156-45F40-000 ?RING, OIL SEAL STOPPER 2 Rp21.000
7 DISCONTINUE
SUB: 51147-45F40-000		 ?BOLT 2 -
8 51148-45F40-000 ?GASKET 2 Rp7.000
9 51195-45F40-000 ?PIECE, OIL LOCK 2 Rp20.000
10 51146-45F40-000 ?CYLINDER 2 Rp56.500
11 51177-45F40-000 ?SPRING, REBOUND 2 Rp9.500
12 51182-45F40-000 ?RING 2 Rp11.000
13 51110-45F40-000 ?TUBE, INNER 2 Rp330.500
14 51171-45F40-000 ?SPRING, MAIN 2 Rp52.500
15 51178-45F40-000 ?PLUG 2 Rp31.500
16 51117-45F40-000 ?O RING 2 Rp5.500
17 51189-45F40-000 ?CAP 2 Rp57.000
18 51173-45F40-000 ?SEAL, DUST 2 Rp22.500
19 51176-45F40-000 ?SPACER 2 Rp18.500
20 51192-45F40-000 ?WASHER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
