THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

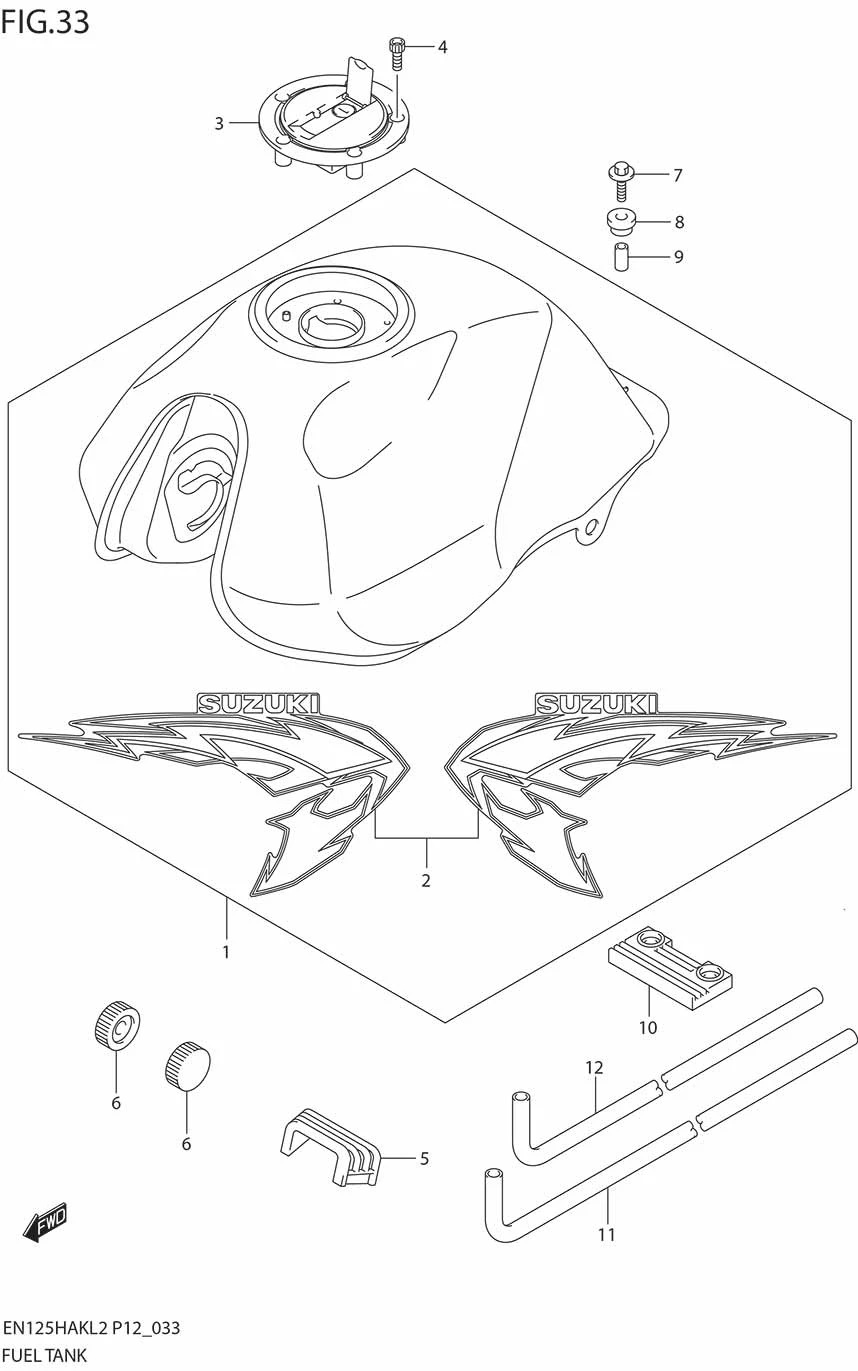

FIG.33 FUEL TANK

FIG.33 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1-1 44100-45FJ0-YVU TANK ASSY, FUEL (BLACK) 1 -
1-2 44100-45FJ0-YNL TANK ASSY, FUEL (BLUE) 1 -
1-3 44100-45FJ0-PE4 TANK ASSY, FUEL (RED) 1 -
2-1 68110-45FC0-YVU ?TAPE SET 1 - FOR YVU
2-2 68110-45FC0-GTB ?TAPE SET 1 - FOR YNL
2-3 68110-45FC0-HYY ?TAPE SET 1 - FOR PE4
3 44200-45F02-000
SUB: 44200-45F01-000		 CAP ASSY, FUEL TANK 1 Rp222.000
4 09106-05017-000 BOLT 3 Rp18.000
5 44541-45F00-000 CUSHION, FRONT UPPER 1 Rp44.000
6 09329-10016-000 CUSHION, FRONT 2 Rp3.500
7 DISCONTINUE
SUB: 09116-06084-000		 BOLT 2 -
8 09320-10022-000 CUSHION 2 Rp3.500
9 09180-06067-000 SPACER 2 Rp8.500
10 DISCONTINUE
SUB: 44542-38300-000		 CUSHION, LOWER 1 -
11 44423-45FG0-000 HOSE, WATER DRAIN 1 Rp35.000
12 44424-45FG0-000 HOSE, BREATHER 1 Rp29.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
