THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

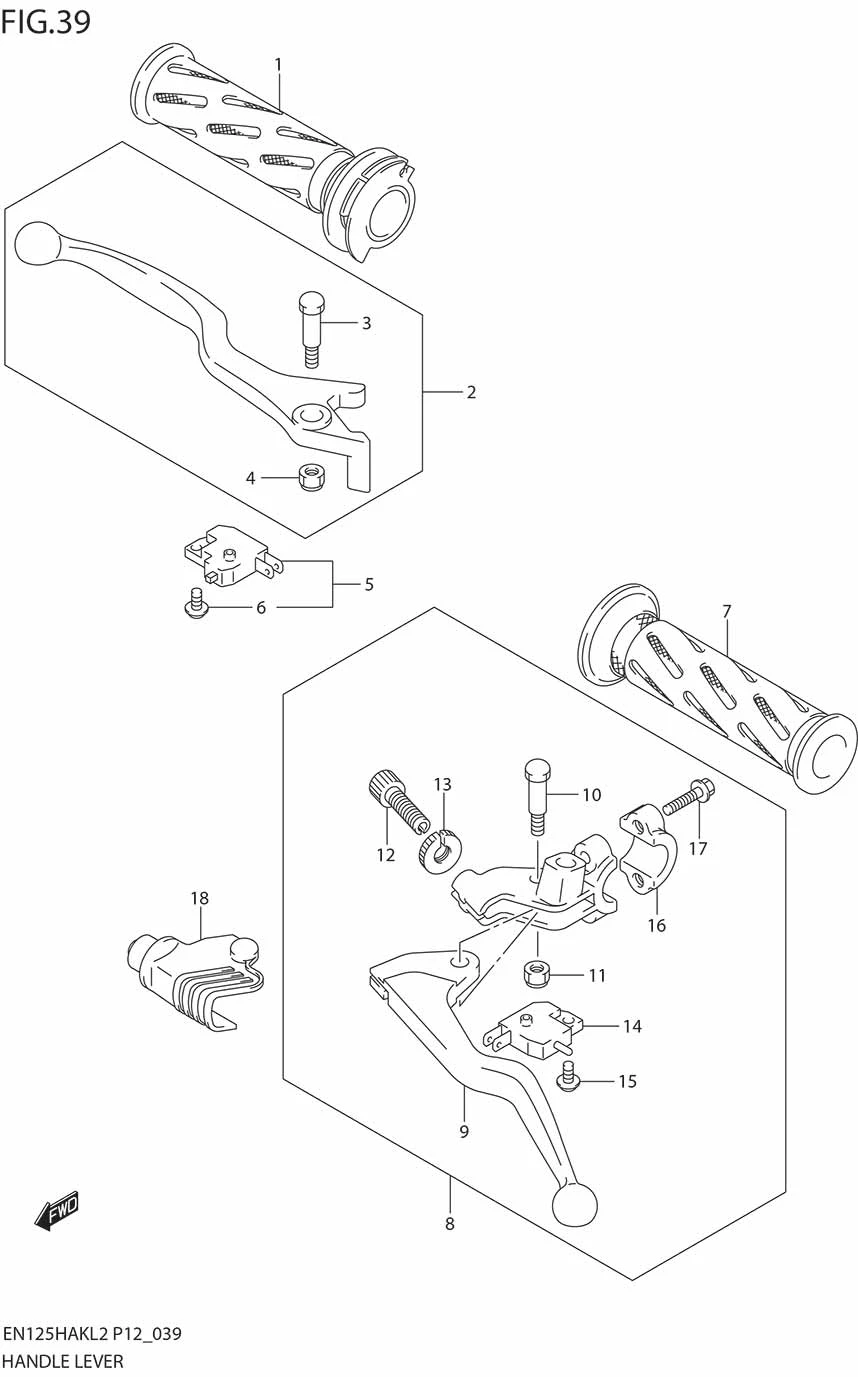

FIG.39 HANDLE LEVER

FIG.39 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-28G10-000 GRIP, THROTTLE 1 Rp44.500
2 57300-45F10-000 LEVER, BRAKE 1 Rp87.000
3 09139-06114-000 ?SCREW 1 Rp15.000
4 57433-09F00-000 ?NUT 1 Rp3.500
5 57460-17C00-000
SUB: 57460-17C01-000		 SWITCH ASSY, STOP 1 Rp72.000
6 DISCONTINUE
SUB: 57465-17C00-000		 ?SCREW 1 -
7 57211-45FB0-000 GRIP, LH 1 Rp33.500
8 57500-053E2-000
SUB: 57500-053C0-000		 LEVER ASSY, CLUTCH 1 Rp179.000
9 57621-053C0-000 ?LEVER, CLUTCH 1 Rp52.000
10 57431-21D11-000
SUB: 57431-45C01-000		 ?BOLT 1 Rp100.000
11 08319-2106B-000 ?NUT 1 Rp4.000
12 57441-45C00-000 ?ADJUSTER 1 Rp75.500
13 57442-45C00-000 ?NUT 1 Rp71.000
14 57560-28G00-000 ?SWITCH ASSY, CLUTCH 1 Rp12.000
15 DISCONTINUE
SUB: 02112-0412A-000		 ?SCREW 1 -
16 57512-45F00-000 ?BRACKET, HOLDER 1 Rp53.500
17 01547-0620B-000 ?BOLT 2 Rp6.500
18 57661-05300-000 COVER, CLUTCH LEVER 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
