THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

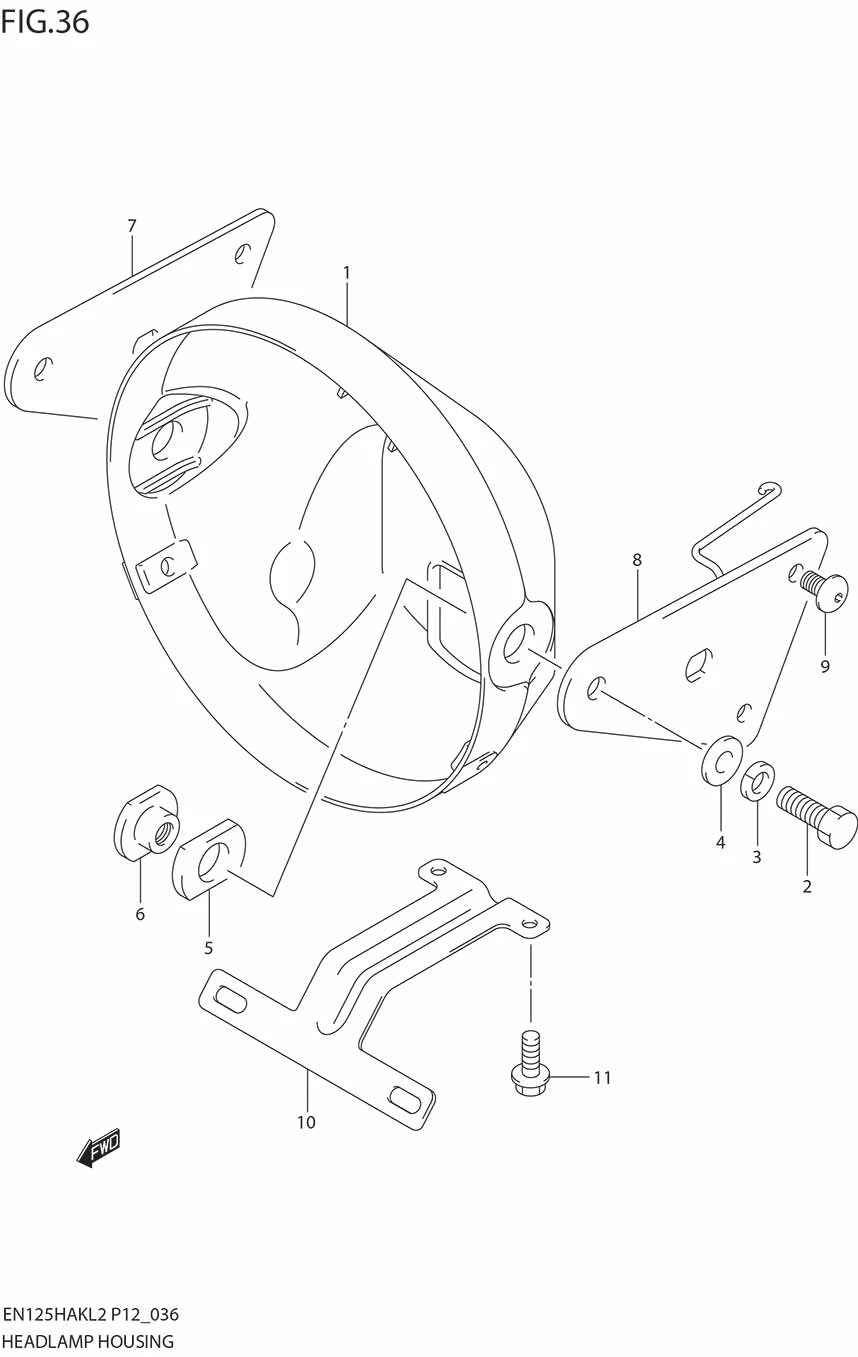

FIG.36 HEAD LAMP HOUSING

FIG.36 HEAD LAMP HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1 51811-45F20-000 HOUSING, HEADLAMP 1 Rp105.500
2 01204-08207-000 BOLT 2 Rp13.500
3 08321-01087-000 LOCK WASHER 2 Rp13.500
4 08322-01087-000 WASHER 2 Rp13.500
5 51827-45F10-000 CUSHION 2 Rp10.500
6 51825-45F10-000 NUT 2 Rp20.000
7 51850-45F00-000 PLATE, RH 1 Rp28.000
8 51860-45F10-000 PLATE, LH 1 -
9 09139-06027-000 BOLT 4 Rp17.500
10 48191-45F10-000 PLATE, FRONT LICENSE 1 -
11 01550-0610B-000
SUB: 01550-0610A-000		 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
