THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

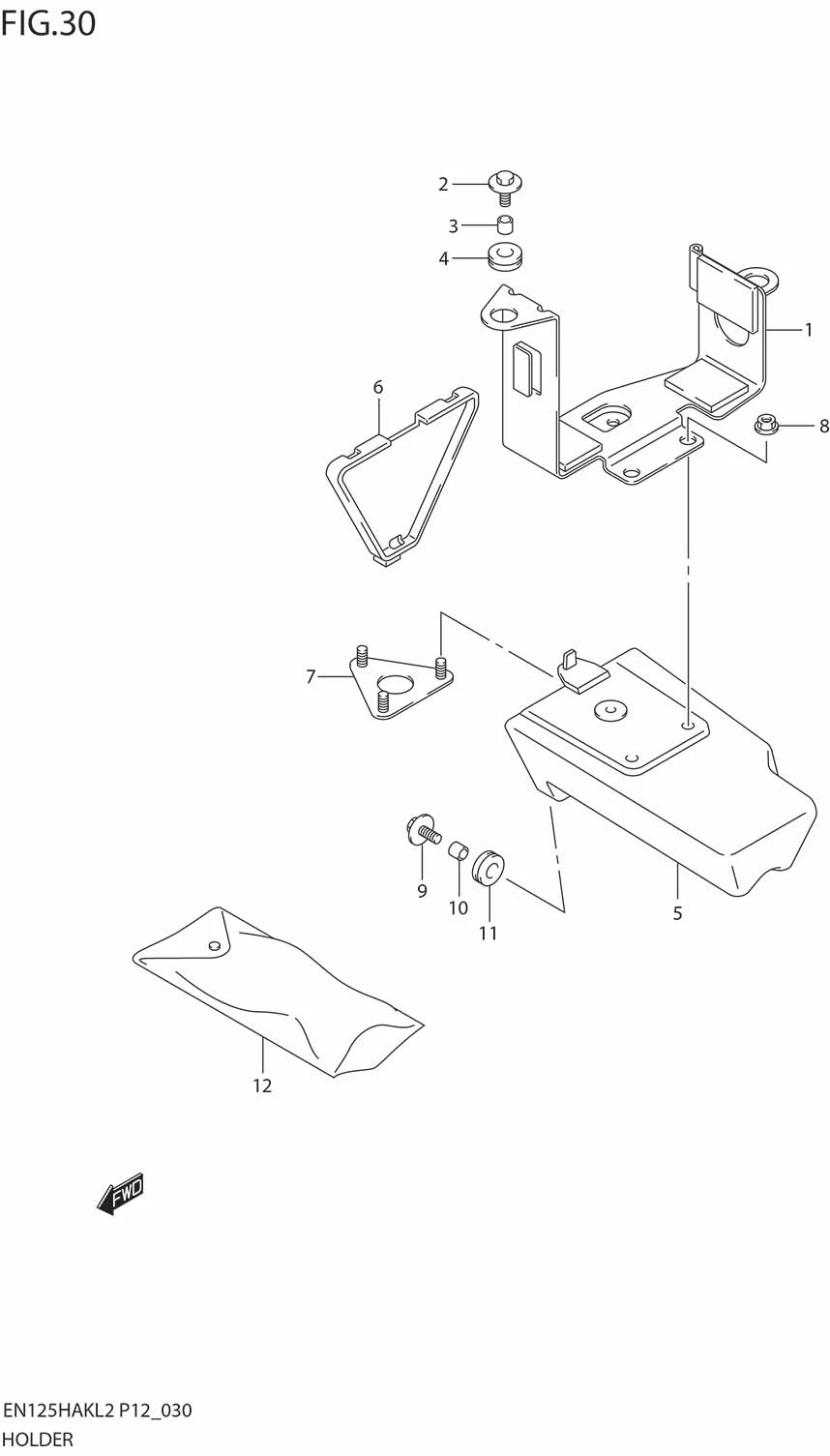

FIG.30 HOLDER

FIG.30 HOLDER
No No. Part Description Qty Price Per Pcs Remarks
1 41540-05330-000 HOLDER, BATTERY 1 Rp51.000
2 09116-06168-000 BOLT 2 Rp15.000
3 DISCONTINUE
SUB: 09180-06038-000		 SPACER 2 -
4 09320-08510-000
SUB: 09320-08021-000		 CUSHION 2 Rp15.500
5 47431-05300-000 HOLDER, TOOL 1 -
6 47432-05300-000 CAP 1 Rp31.500
7 DISCONTINUE
SUB: 47440-05301-000		 PLATE, HOLDER 1 -
8 08316-1006A-000
SUB: 08316-1006B-000		 NUT 3 Rp2.000
9 09116-06168-000 BOLT 1 Rp15.000
10 DISCONTINUE
SUB: 09180-06038-000		 SPACER 1 -
11 09320-08510-000
SUB: 09320-08021-000		 CUSHION 1 Rp15.500
12 96510-45F10-000 TOOL ASSY 1 Rp77.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
