THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

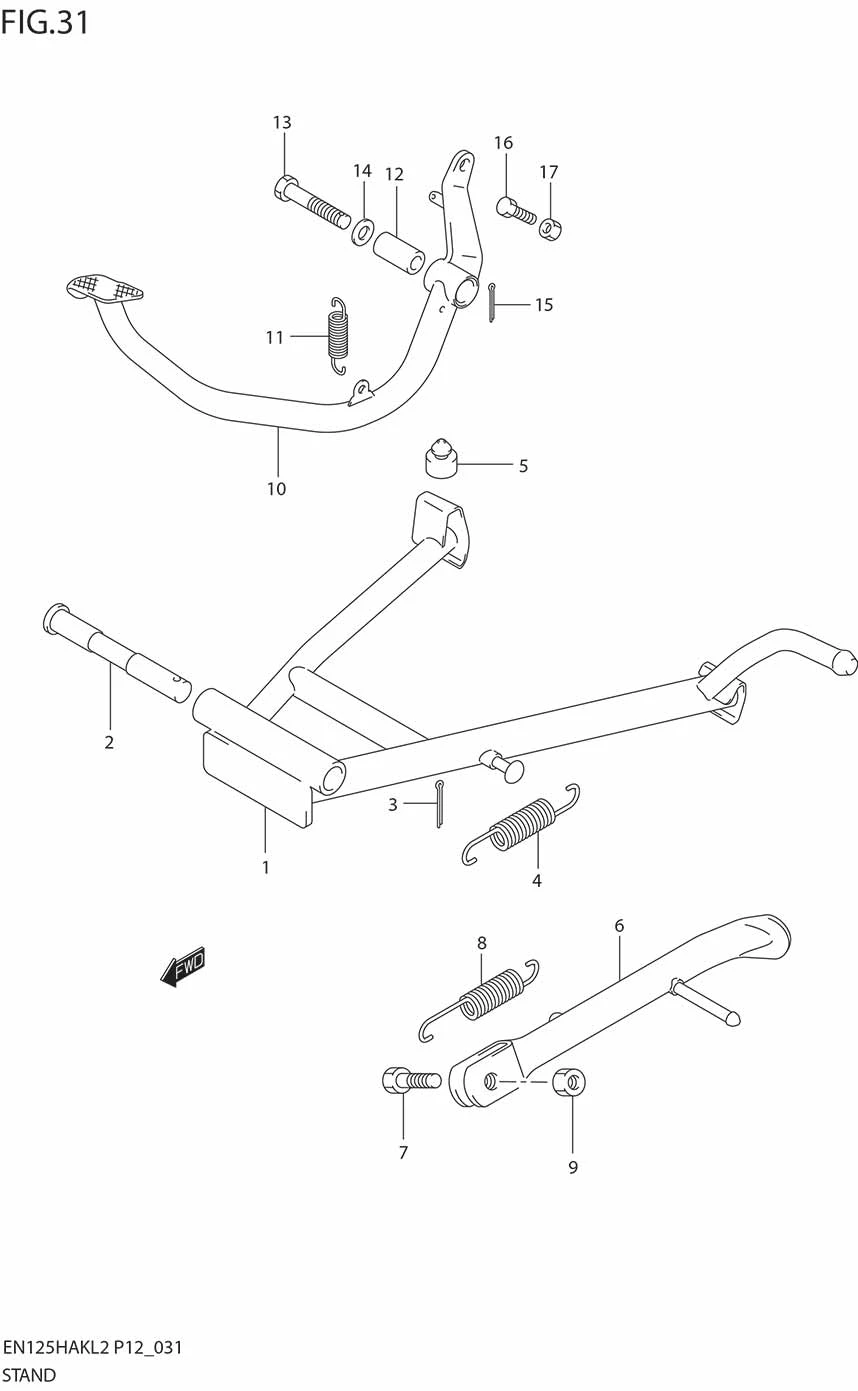

FIG.31 STAND

FIG.31 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-45F00-000 STAND, CENTER 1 Rp200.000
2 42211-36504-000 SHAFT 1 Rp93.500
3 04111-2525A-000 COTTER PIN 1 Rp3.500
4 09443-18006-XC0
SUB: 09443-18002-000		 SPRING 1 Rp40.000
5 42278-26H00-000 CUSHION 1 Rp11.500
6 42310-45F20-000 STAND, PROP 1 Rp42.500
7 09111-10060-000 BOLT 1 Rp13.000
8 42241-26H10-000 SPRING 1 Rp30.000
9 08319-3110A-000
SUB: 08319-3110B-000		 NUT 1 Rp4.500
10 43110-45F20-000 PEDAL, BRAKE 1 -
11 09443-14015-000 SPRING 1 Rp23.000
12 43231-05302-000 SPACER 1 Rp13.500
13 43213-45F00-000 BOLT 1 Rp13.000
14 08322-0110B-000 WASHER 1 Rp4.500
15 04111-2020A-000 COTTER PIN 1 Rp5.000
16 DISCONTINUE
SUB: 43159-45F00-000		 BOLT 1 -
17 08310-0006B-000 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
