THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

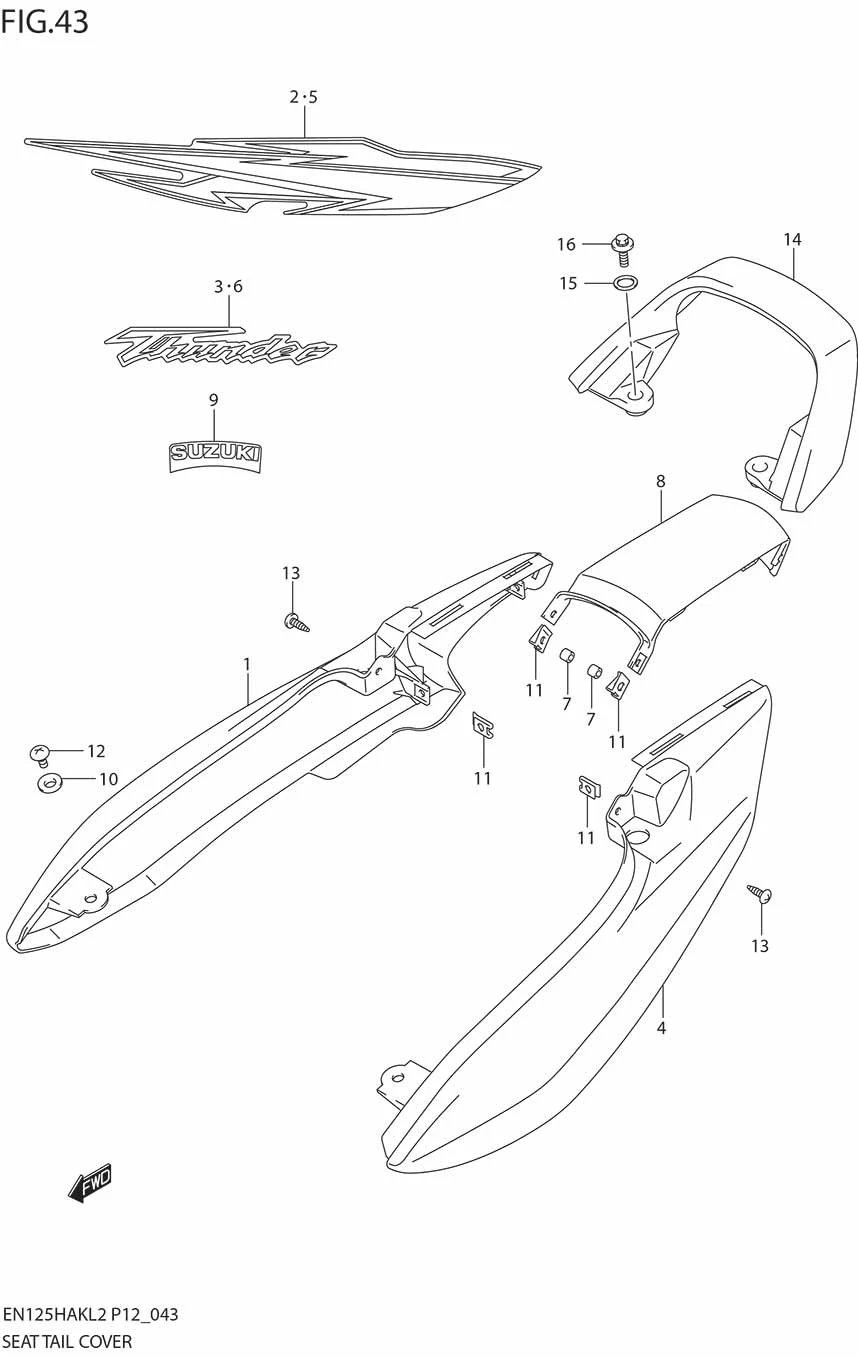

FIG.43 SEAT TAIL COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 45511-45FD1-YNL	COVER, SEAT TAIL RH (BLUE)	1	-	FOR GTB
1-3	DISCONTINUE SUB: 45511-45FD1-YVU	COVER, SEAT TAIL RH (BLACK)	1	-	FOR YVU
1-1	DISCONTINUE SUB: 45511-45FD1-PE4	COVER, SEAT TAIL RH (RED)	1	-	FOR HYY
2-1	68160-45FC0-HYY	TAPE, COVER RH (RED/BLACK)	1	-
2-2	68160-45FC0-GTB	TAPE, COVER RH (BLUE/BLACK)	1	-
2-3	68160-45FC0-YVU	TAPE, COVER RH (BLACK)	1	-
4-3	68165-45FC0-YVU	EMBLEM, COVER (BLACK)	1	-
4-6	DISCONTINUE SUB: 45512-45FD1-YVU	COVER, SEAT TAIL LH (BLACK)	1	-	FOR YVU
4-5	DISCONTINUE SUB: 45512-45FD1-YNL	COVER, SEAT TAIL LH (BLUE)	1	-	FOR GTB
4-4	DISCONTINUE SUB: 45512-45FD1-PE4	COVER, SEAT TAIL LH (RED)	1	-	FOR HYY
4-2	68165-45FC0-GTB	EMBLEM, COVER (BLUE/BLACK)	1	-
4-1	68165-45FC0-HYY	EMBLEM, COVER (RED/BLACK)	1	-
5-1	68170-45FC0-HYY	TAPE, COVER LH (RED/BLACK)	1	-
5-2	68170-45FC0-GTB	TAPE, COVER LH (BLUE/BLACK)	1	-
5-3	68170-45FC0-YVU	TAPE, COVER LH (BLACK)	1	-
6-1	68165-45FC0-HYY	EMBLEM, COVER (RED/BLACK)	1	-
6-3	68165-45FC0-YVU	EMBLEM, COVER (BLACK)	1	-
6-2	68165-45FC0-GTB	EMBLEM, COVER (BLUE/BLACK)	1	-
7	45522-45F01-000	CAP, TAIL COVER SCREW	2	Rp4.500
8-1	45513-45FG0-PE4	COVER, SEAT TAIL CENTER (RED)	1	Rp36.500	FOR HYY
8-2	45513-45FG0-YNL	COVER, SEAT TAIL CENTER (BLUE)	1	Rp36.500	FOR GTB
8-3	45513-45FG0-YVU	COVER, SEAT TAIL CENTER (BLACK)	1	Rp36.500	FOR YVU
9	68166-45FC0-YUH	EMBLEM, COVER CENTER (WHITE)	1	-
10	61315-45F00-000	SPACER, SEAT TAIL COVER	2	Rp5.500
11	09148-05038-000	NUT, SEAT TAIL COVER	6	Rp4.000
12	02142-0612A-000 SUB: 02142-0612B-000	SCREW, SEAT TAIL COVER	2	Rp4.000
13	03241-0512A-000 SUB: 03241-0512B-000	SCREW, SEAT TAIL COVER	2	Rp3.500
14	46211-45F30-13L	HANDLE, PILLION RIDER (SILVER)	1	-
15	DISCONTINUE SUB: 46212-28D00-000	CUSHION, PILLION HANDLE	2	-
16	09118-08159-000	BOLT, CARRIER FRONT (8X30)	2	Rp8.500
