THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

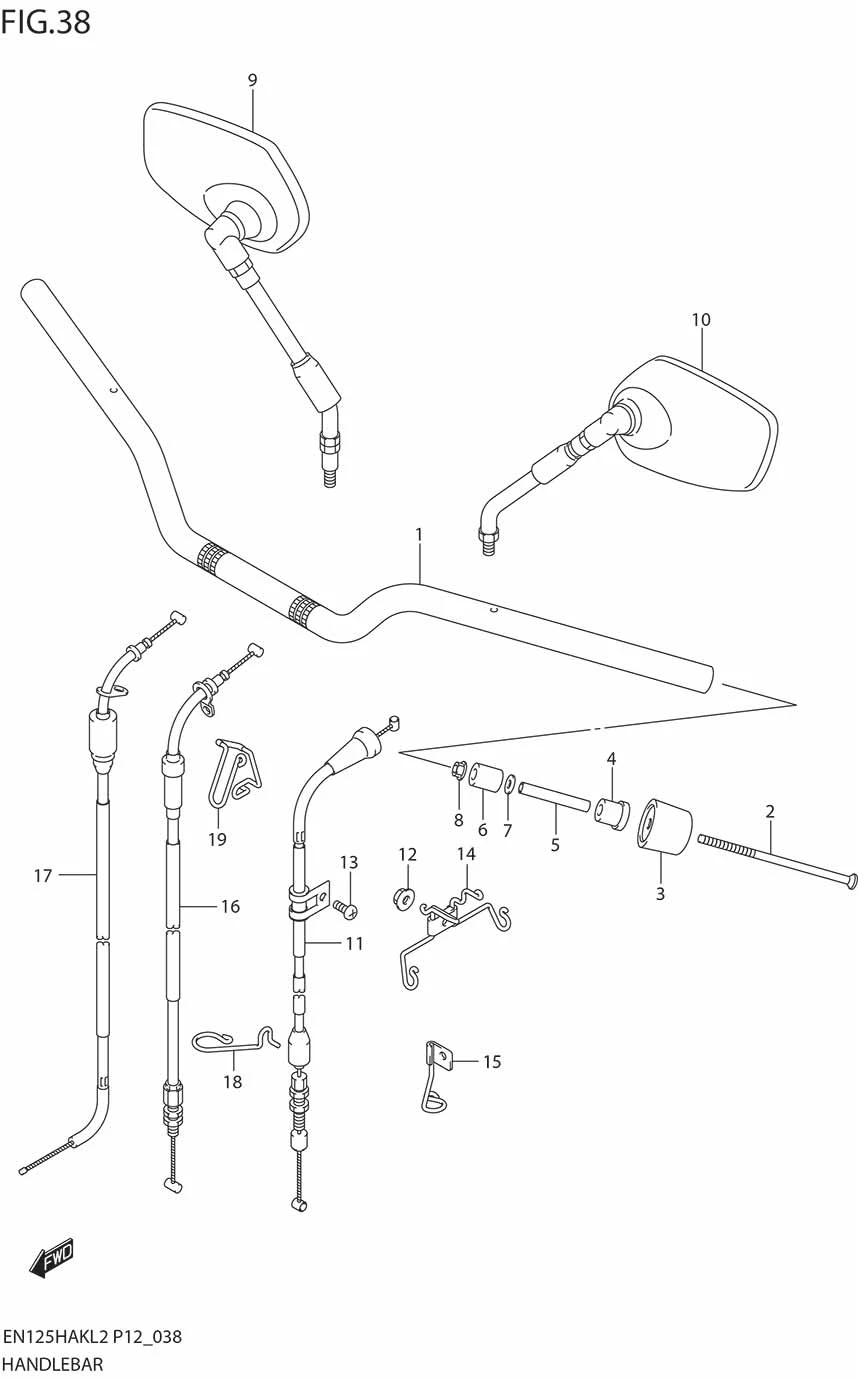

FIG.38 HANDLE BAR

FIG.38 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 56111-26H00-000 HANDLEBAR 1 Rp125.000
2 09127-06018-000 SCREW, BALANCER 2 Rp4.000
3 56278-45F10-000 BALANCER 2 Rp46.000
4 56272-45F00-000 EXPANDER, OUTER 2 Rp9.000
5 56276-17D00-000 SPACER 2 Rp9.000
6 DISCONTINUE
SUB: 56272-44500-000		 EXPANDER, INNER 2 -
7 09160-06126-000 WASHER 2 Rp3.000
8 09159-06024-000 NUT 2 Rp4.000
9 56500-45FB0-000 MIRROR ASSY, REAR VIEW RH 1 Rp128.500
10 56600-45FB0-000 MIRROR ASSY, REAR VIEW LH 1 Rp128.500
11 58200-26H80-000 CABLE ASSY, CLUTCH 1 Rp86.000
12 08316-1006A-000 NUT 1 Rp2.000
13 02112-1612B-000 SCREW 1 Rp4.000
14 58620-26H81-000 GUIDE, CLUTCH CABLE 1 Rp19.000
15 58620-05310-000 GUIDE, CLUTCH CABLE 1 Rp12.000
16 58300-26H50-000 CABLE ASSY, THROTTLE 1 -
17 58410-26H60-000 CABLE ASSY, STARTER 1 Rp82.500
18 58626-36H00-000 GUIDE, CABLE 1 Rp12.000
19 58621-26H00-000 GUIDE, CABLE 1 Rp15.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
