THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

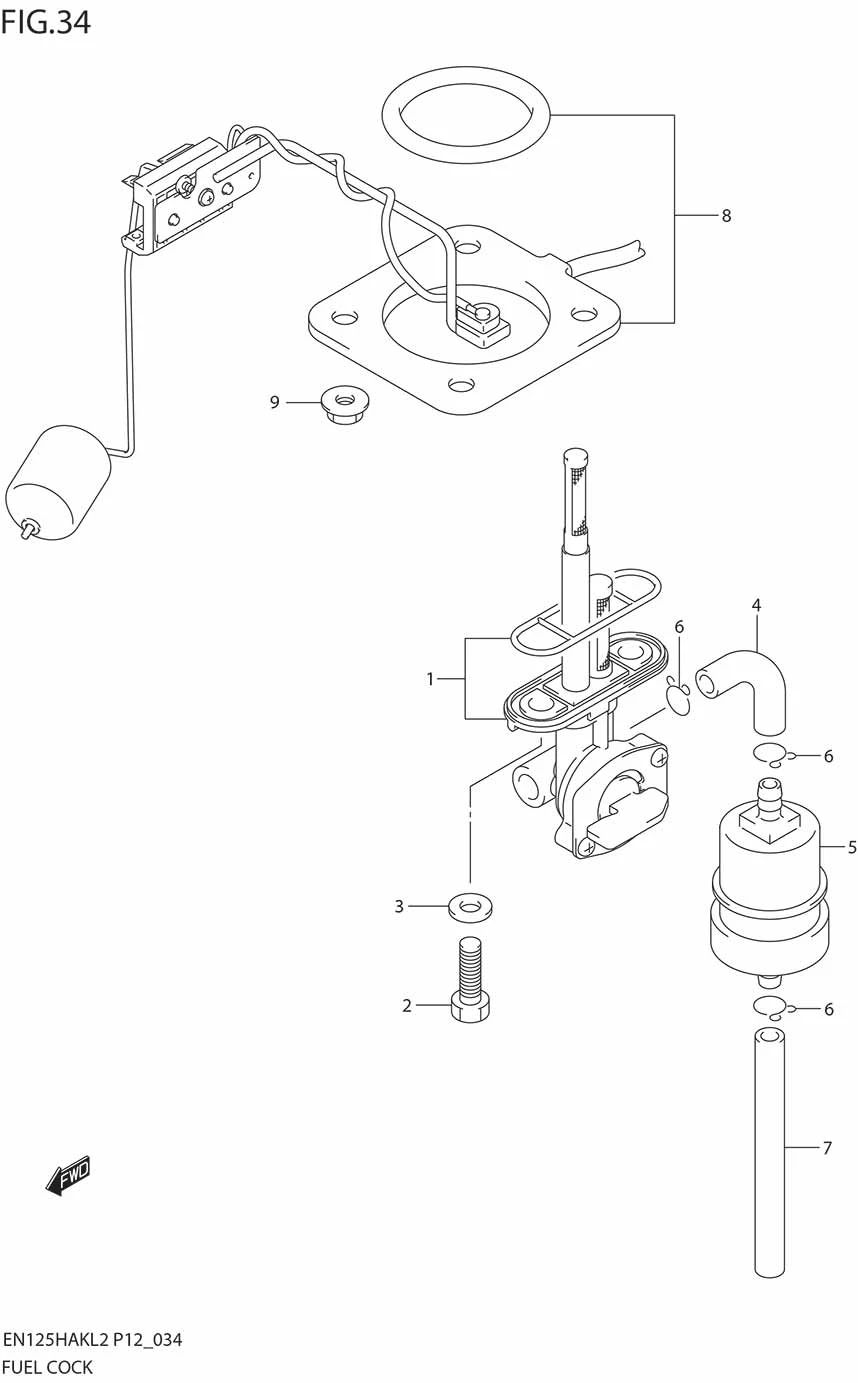

FIG.34 FUEL COCK

FIG.34 FUEL COCK
No No. Part Description Qty Price Per Pcs Remarks
1 44300-45FB0-000 COCK ASSY, FUEL 1 Rp111.500
2 09128-06057-000
SUB: 09128-06006-000		 BOLT 2 Rp20.500
3 09168-06026-000 GASKET 2 Rp20.000
4 44421-45F40-000 HOSE, FUEL UPPER 1 -
5 44330H45F11H000
SUB: 44330-45F10-000		 FILTER, FUEL 1 Rp34.500
6 09401-08401-000 CLIP 4 Rp10.500
7 44422-45F40-000 HOSE, FUEL LOWER 1 -
8 34810-26H01-000
SUB: 34810-26H00-000		 GAUGE ASSY, FUEL LEVEL 1 Rp105.000
9 08316-1006A-000 NUT 4 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
