THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

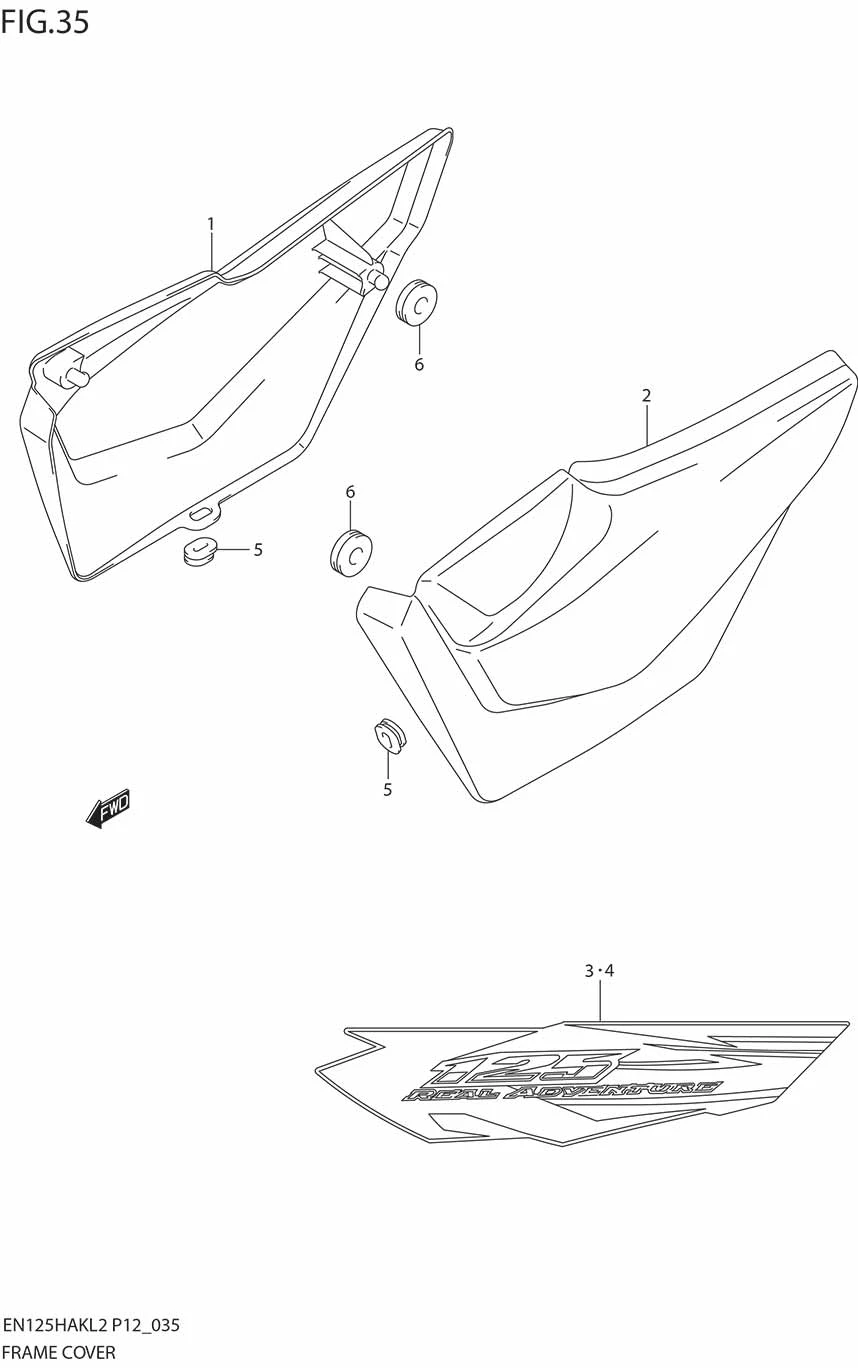

FIG.35 FRAME COVER

FIG.35 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 47111-45F30-YVU		 COVER, FRAME RH (BLACK) 1 -
2 DISCONTINUE
SUB: 47211-45F30-YVU		 COVER, FRAME LH (BLACK) 1 -
3-1 68130-45FC0-YVU TAPE SET, RH 1 -
3-2 68130-45FC0-GTB TAPE SET, RH 1 -
3-3 68130-45FC0-HYY TAPE SET, RH 1 -
4-1 68140-45FC0-YVU TAPE SET, LH 1 -
4-2 68140-45FC0-GTB TAPE SET, LH 1 -
4-3 68140-45FC0-HYY TAPE SET, LH 1 -
5 09320-03004-000 CUSHION, LOWER RH 2 Rp7.000
6 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 4 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
