THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 FRAMEFIG.30 HOLDERFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FUEL COCKFIG.35 FRAME COVERFIG.36 HEAD LAMP HOUSINGFIG.37 FRONT FENDERFIG.38 HANDLE BARFIG.39 HANDLE LEVERFIG.40 REAR FENDERFIG.41 LABELFIG.42 SEATFIG.43 SEAT TAIL COVERFIG.44 FRONT DAMPERFIG.45 STEERING STEMFIG.46 FRONT WHEELFIG.47 FRONT CALIPERFIG.48 FRONT MASTER CYLINDERFIG.49 REAR SWINGING ARMFIG.50 CHAINCASEFIG.51 REAR WHEEL

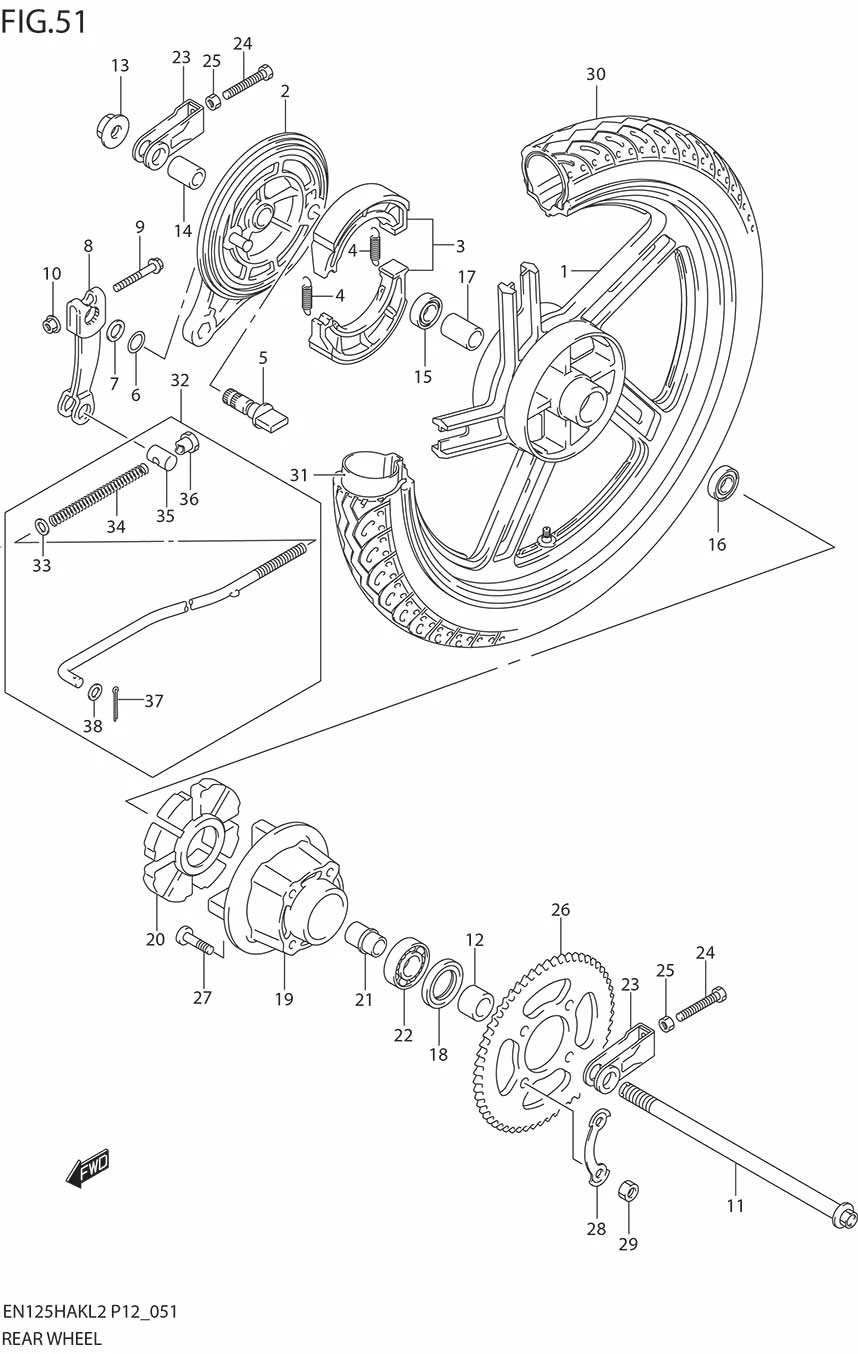

FIG.51 REAR WHEEL

FIG.51 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 64150-45F80-YGD WHEEL, REAR (MT1.85X18) 1 -
1-1 64150-45F80-YMJ WHEEL, REAR (MT1.85X18) 1 -
2 64200-26H20-000 PANEL, REAR BRAKE ANCHOR 1 -
3 54410-07021-000
SUB: 54400-45811-000		 SHOE SET, BRAKE 1 Rp85.000
4 55421-45F00-000 SPRING 2 Rp6.500
5 54441-45FB0-000 CAM, BRAKE 1 -
6 09280-14011-000 O RING (ID:13.8,D:2.50) 1 Rp7.500
7 09160-14055-000 WASHER 1 Rp16.500
8 64451-45FA0-000 LEVER, BRAKE CAM 1 Rp58.500
9 01550-0635A-000 BOLT 1 Rp3.000
10 08316-1006A-000 NUT 1 Rp2.000
11 DISCONTINUE
SUB: 64711-05330-000		 AXLE, REAR 1 -
12 09180-15042-000 SPACER, LH (15X28X19) 1 Rp42.500
13 08319-3114A-000 NUT 1 Rp53.000
14 09180-15002-000 SPACER, RH (15X22X33) 1 Rp38.500
15 08144-63027-000 BEARING, RH 1 Rp120.500
16 08143-62027-000 BEARING, LH 1 Rp29.500
17 09180-15011-000 SPACER, HUB (15.3X21.7X63) 1 Rp38.500
18 09285-28004-000
SUB: 09285-28001-000		 OIL SEAL (28X47X7) 1 Rp106.000
19 DISCONTINUE
SUB: 64610-05301-000		 DRUM, SPROCKET MOUNTING 1 -
20 64651-45F00-000 SHOCK ABSORBER, WHEEL 1 Rp104.000
21 64733-05301-000 RETAINER, DRUM 1 Rp35.500
22 09262-20069-000 BEARING (20X47X14) 1 Rp154.500
23 61410-36002-000 ADJUSTER, CHAIN 2 Rp98.500
24 DISCONTINUE
SUB: 09104-08034-000		 BOLT (8X50) 2 -
25 08310-0008A-000 NUT 2 Rp12.500
26 64511-34GA0-000 SPROCKET, REAR (NT:45) 1 Rp162.500
27 09119-08043-000 BOLT (8X33) 4 Rp13.500
28 09169-08012-000 WASHER 2 Rp12.500
29 08310-0008B-000 NUT 4 Rp15.500
30 DISCONTINUE
SUB: 65110-45F20-000		 TIRE, REAR (90/90-18 51P) 1 -
31 65200-45F20-000 TUBE ASSY, WHEEL INNER 1 -
32 43300-26H00-000 ROD ASSY, REAR BRAKE 1 Rp72.500
33 08322-0106B-000 ?WASHER 1 Rp6.000
34 09440-09004-000 ?SPRING 1 Rp12.500
35 09209-11002-000 ?PIN 1 Rp7.500
36 09150-06010-000 ?NUT 1 Rp4.500
37 04111-2015A-000 ?COTTER PIN 1 Rp4.500
38 08322-0106B-000 ?WASHER 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
