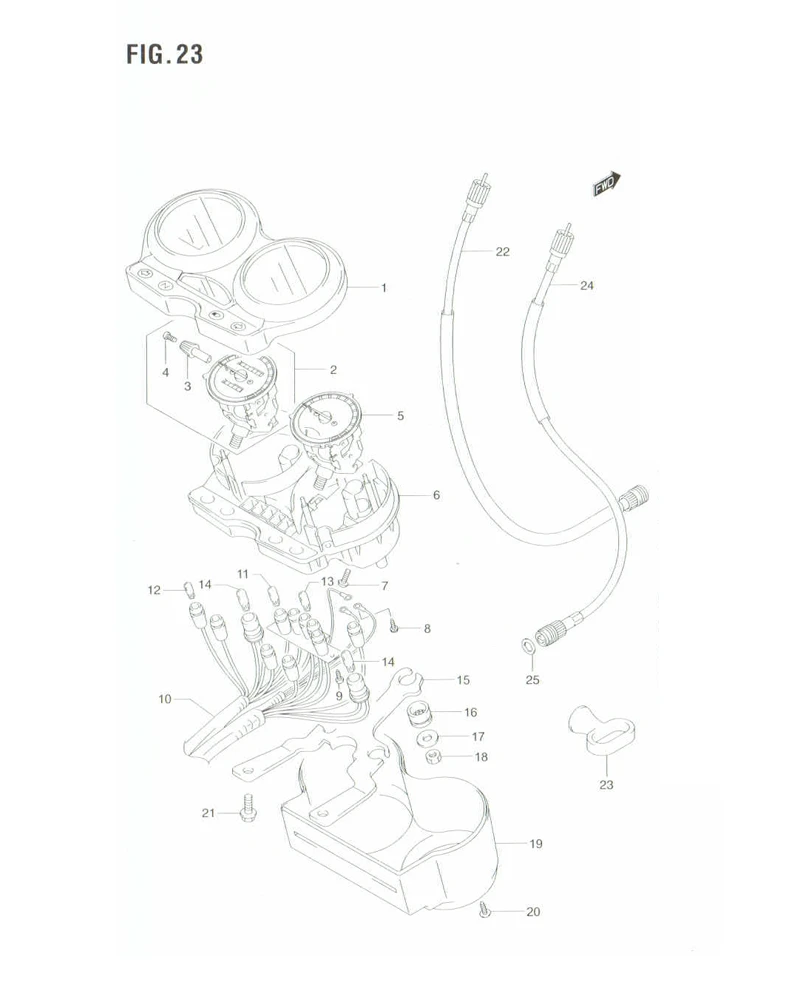

FIG. 23 SPEEDOMETER (MODEL K5/K6)

FIG. 23 SPEEDOMETER (MODEL K5/K6)
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 34100-34G30-000		 SPEDOMETER ASSY 1 -
1 34150-34G30-000
SUB: 34150-34G10-000		 CASE, UPPER 1 Rp154.500
2 34110-34G30-000 SPEEDO METER 1 Rp373.500
3 34124-34G10-000 .NOB 1 Rp18.500
4 02112-0306B-000
SUB: 02112-03063-000		 .SCREW 2 Rp12.000
5 DISCONTINUE
SUB: 34210-34G10-000		 TACHOMETER 1 -
6 34111-34G10-000 CASE, LOWER 1 Rp54.000
7 02112-04083-000 SCREW 6 Rp7.500
8 DISCONTINUE
SUB: 34383-09400-000		 SCREW 2 -
9 DISCONTINUE
SUB: 09132-03017-000		 SCREW (3X14) 2 -
10 DISCONTINUE
SUB: 34173-34G10-000		 CORD ASSY 1 -
11 09471-12071-000 BULB (14V 12W, T4) 4 Rp37.000
12 09471-12077-000 BULB (12V 1.7W, T6.5) 4 Rp6.000
13 09471-12077-000 BULB (12V 1.7W, T6.5) 2 Rp6.000
14 09471-12082-000 BULB (12V 3.4W, T10) 2 Rp12.000
15 34950-34G10-000 BRACKET 1 Rp74.000
16 DISCONTINUE
SUB: 34191-34G10-000		 CUSHION 2 -
17 DISCONTINUE
SUB: 08322-01063-000		 LOCK WASHER 2 -
18 08310-0006B-000
SUB: 08310-00063-000		 NUT 2 Rp4.500
19 34152-34G10-000 COVER 1 Rp41.000
20 DISCONTINUE
SUB: 03541-05103-000		 SCREW 2 -
21 01550-0812A-000
SUB: 01550-08123-000		 BOLT 2 Rp3.500
22 34910-45F01-000
SUB: 34910-26440-000		 CABLE ASSY, SPEEDOMETER 1 Rp78.000
23 58621-45F00-000 GUIDE, CABLE 1 Rp9.000
24 34940-05380-000
SUB: 34940-05340-000		 CABLE ASSY, TACHOMETER 1 Rp62.500
25 34943-05500-000 SEAL, TACHOMETER CABLE OIL 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
