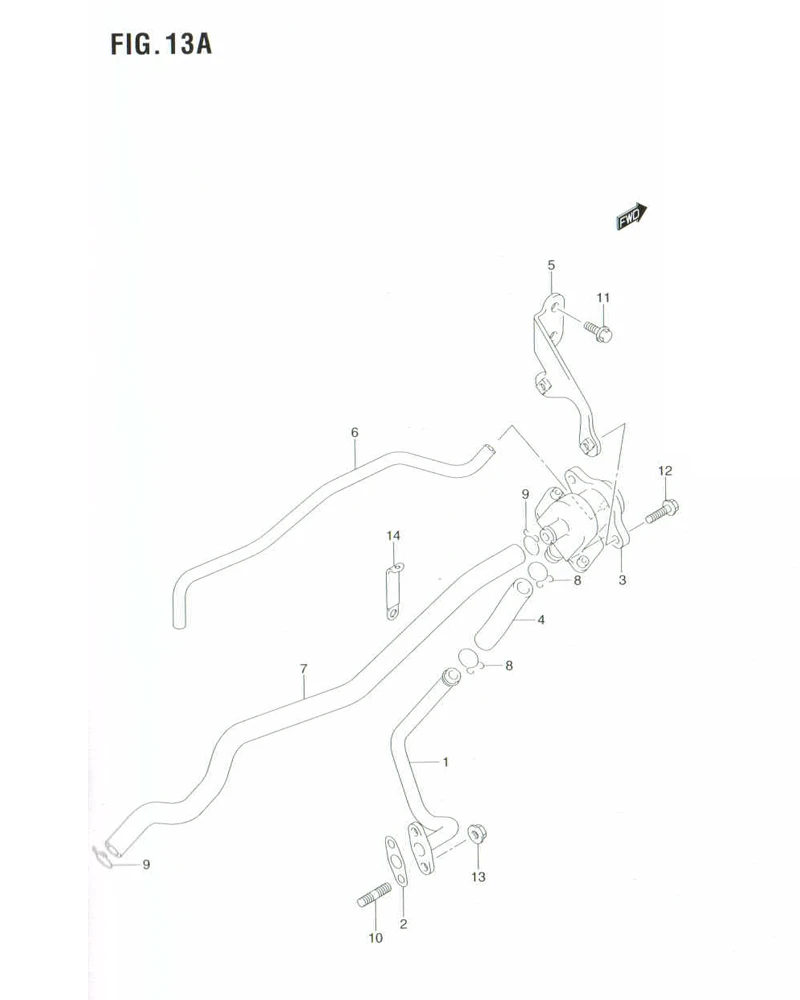

FIG. 13A 2ND AIR (MODEL K6/K7)

FIG. 13A 2ND AIR (MODEL K6/K7)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 18410-34G00-000		 PIPE, 2ND AIR 1 -
2 18441-20E10-000
SUB: 18441-20E00-000		 GASKET, 2ND AIR PIPE 1 Rp4.500
3 18450-34G00-000 VALVE ASSY, 2ND AIR 1 Rp310.000
4 18461-34G01-000 HOSE, 2ND AIR VALVE 1 Rp14.500
5 DISCONTINUE
SUB: 18610-34G00-000		 BRACKET, 2ND AIR V 1 -
6 09352-40703-230
SUB: 09352-40703-600		 HOSE, 2ND AIR VALVE VAC 1 Rp11.000
7 09355-11165-600 HOSE, 2ND AIR CLNR 1 Rp119.000
8 09401-13409-000 CLIP, 2ND AIR VALVE HOSE 2 Rp8.500
9 09401-15101-000 CLIP, 2ND AIR CLNR HOSE 2 Rp3.000
10 01421-0616B-000 BOLT, 2ND AIR PIPE STUD 2 -
11 01550-0612B-000 BOLT, 2ND AIR VALVE BRKT 2 Rp16.500
12 01550-0620B-000 BOLT, 2ND AIR VALVE 2 Rp3.500
13 08316-1006A-000
SUB: 08316-1006B-000		 NUT, 2ND AIR PIPE 2 Rp2.000
14 DISCONTINUE
SUB: 36651-45F30-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
