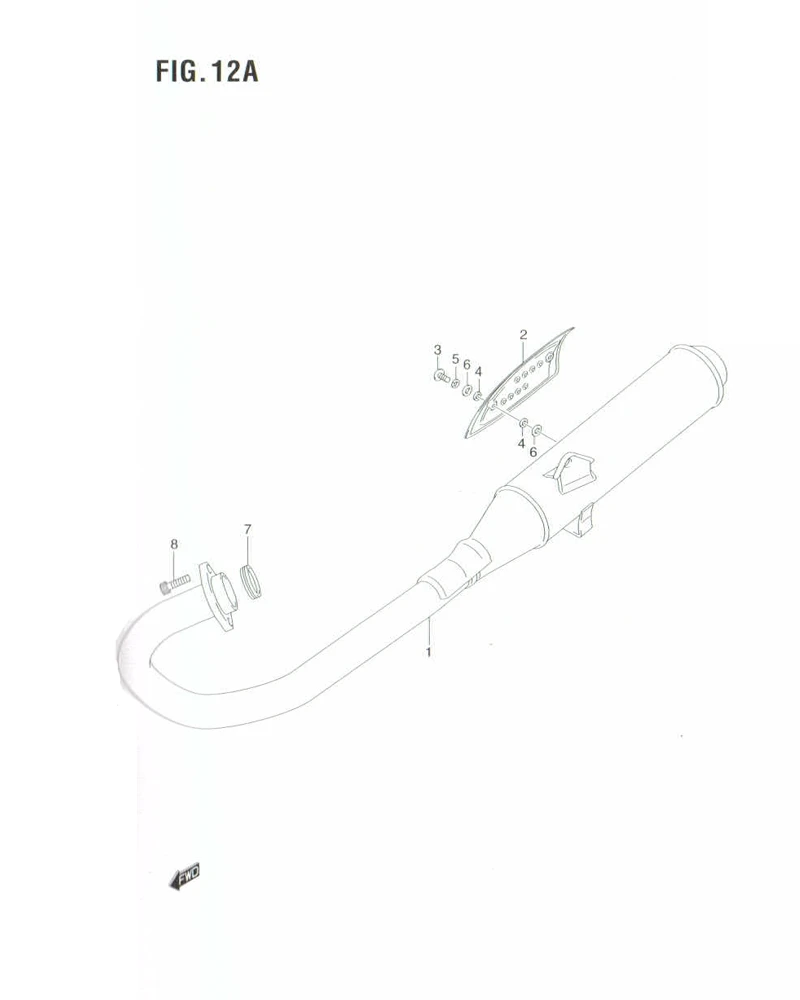

FIG. 12A MUFFLER (MODEL K6/K7)

FIG. 12A MUFFLER (MODEL K6/K7)
No No. Part Description Qty Price Per Pcs Remarks
1 14305-45F70-000 MUFFLER 1 Rp1.912.500
2 14791-45F20-000
SUB: 14791B45F20N000		 COVER, MUFFLER BODY 1 Rp78.500
3 09139-06078-000 SCREW 2 Rp8.500
4 DISCONTINUE
SUB: 09168-06001-000		 WASHER 4 -
5 DISCONTINUE
SUB: 08321-0106A-000		 WASHER 2 -
6 08322-0106A-000 WASHER 4 Rp2.500
7 14181H14D00H000
SUB: 14181-14D00-000		 GASKET, EXHAUST (NA) 1 Rp12.500
8 07130-0825A-000
SUB: 07130-0825B-000		 BOLT, EXHAUST PIPE 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
