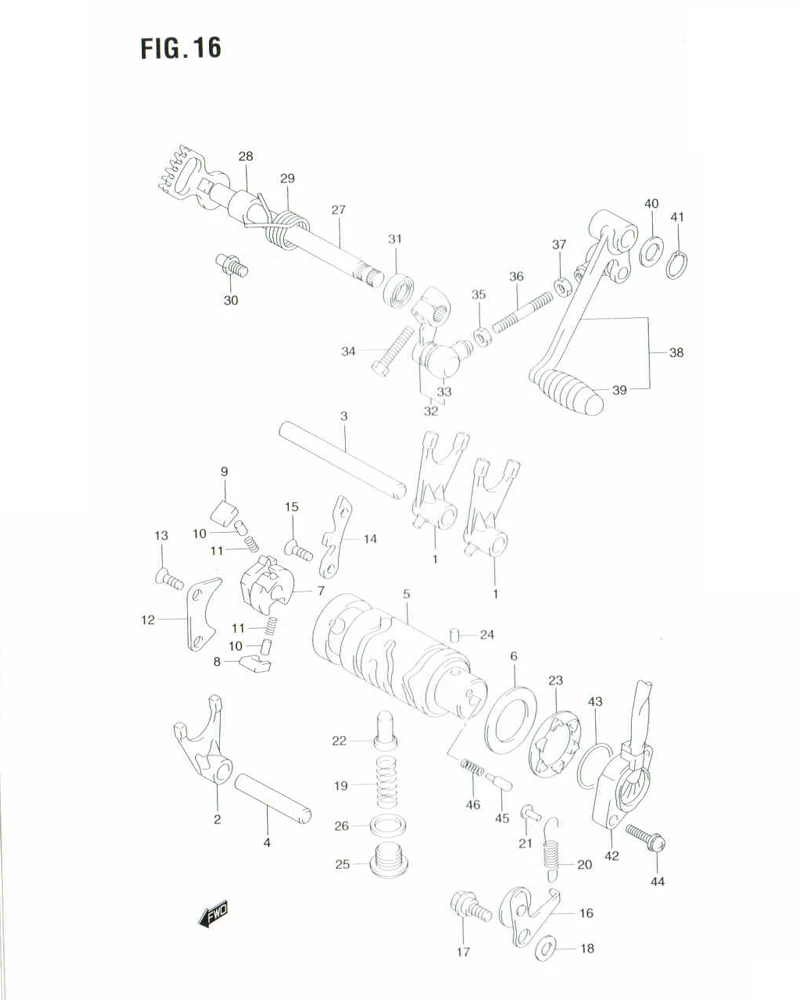

FIG. 16 GEAR SHIFTING

FIG. 16 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1 25211-05210-000 FORK, GEAR SHIFTING NO.1 2 Rp49.000
2 25231-05210-000 FORK, GEAR SHIFTING NO.3 1 Rp51.500
3 25411-26H00-000
SUB: 25411-05201-000		 SHAFT, FORK NO.1 1 Rp29.500
4 DISCONTINUE
SUB: 25421-35403-000		 SHAFT, FORK NO.2 1 -
5 25310-05340-000 CAM, GEAR SHIFTING 1 Rp160.500
6 DISCONTINUE
SUB: 09181-25251-000		 WASHER (25X40X1.0) 1 -
7 25322-31320-000 GEAR, CAM DRIVEN 1 Rp70.000
8 25323-34201-000 PAWL, NO.1 1 Rp41.000
9 25324-34201-000 PAWL, NO.2 1 Rp41.000
10 09261-05013-000 PIN 2 Rp5.000
11 09440-04003-000 SPRING 2 Rp10.500
12 25331-30001-000 LIFTER, PAWL 1 Rp29.500
13 02122-0612A-000 SCREW 2 Rp3.500
14 DISCONTINUE
SUB: 25341-05200-000		 GUIDE, CAM 1 -
15 02122-0612A-000 SCREW 2 Rp3.500
16 25350-44A00-000 STOPPER, CAM 1 Rp28.000
17 09111-06054-000 BOLT (6X14.6) 1 Rp6.500
18 08211-06141-000 WASHER 1 Rp9.500
19 09440-11016-000 SPRING 1 Rp4.500
20 09443-08044-000 SPRING 1 Rp8.500
21 DISCONTINUE
SUB: 09223-04001-000		 HOOK 1 -
22 25351-30020-000 STOPPER, NEUTRAL 1 Rp18.000
23 25381-45400-000 PLATE, STOPPER 1 Rp86.500
24 04221-04069-000 PIN 1 Rp7.500
25 09248-14013-000 PLUG, CAM STOPPER 1 Rp13.500
26 09168-14002-000 WASHER (13.8X18.8X0.4) 1 Rp14.000
27 25510-05220-000 SHAFT, GEAR SHIFTING 1 Rp89.500
28 DISCONTINUE
SUB: 09180-12068-000		 SPACER (12X20X15.3) 1 -
29 09444-26013-000 SPRING 1 Rp18.500
30 DISCONTINUE
SUB: 25671-01020-000		 STOPPER, ARM 1 -
31 09283-12010-000
SUB: 09285-12002-000		 OIL SEAL (12X22X9) 1 Rp10.000
32 25520-47030-000 ARM, GEAR SHIFT SHAFT 1 Rp90.500
33 25526-47000-000 .COVER, DUST 1 Rp12.500
34 01500-06207-000 BOLT 1 Rp14.000
35 08310-00067-000 NUT, RH 1 Rp13.000
36 25525-12C20-000 ROD, GEAR SHIFT LINK 1 -
37 09140-06025-000 NUT, LH 1 Rp7.000
38 25600-45F00-000 LEVER ASSY, GEAR SHIFTING 1 Rp113.500
39 25652-16H11-000
SUB: 25652-16500-000		 .RUBBER 1 Rp3.500
40 09160-12011-000 WASHER (12.5X20X1.0) 1 Rp10.500
41 08331-3112A-000 CIRCLIP 1 Rp13.000
42 37720-45F90-000
SUB: 37720-45F00-000		 BASE ASSY, GEAR TERM 1 Rp91.000
43 09280-26005-000
SUB: 09280-26003-000		 O RING (D:2.4,ID:26.2) 1 Rp3.000
44 02112-7520B-000 SCREW 2 Rp16.500
45 09209-05011-000 CONTACT 1 Rp5.500
46 DISCONTINUE
SUB: 09440-04024-000		 SPRING 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
