Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

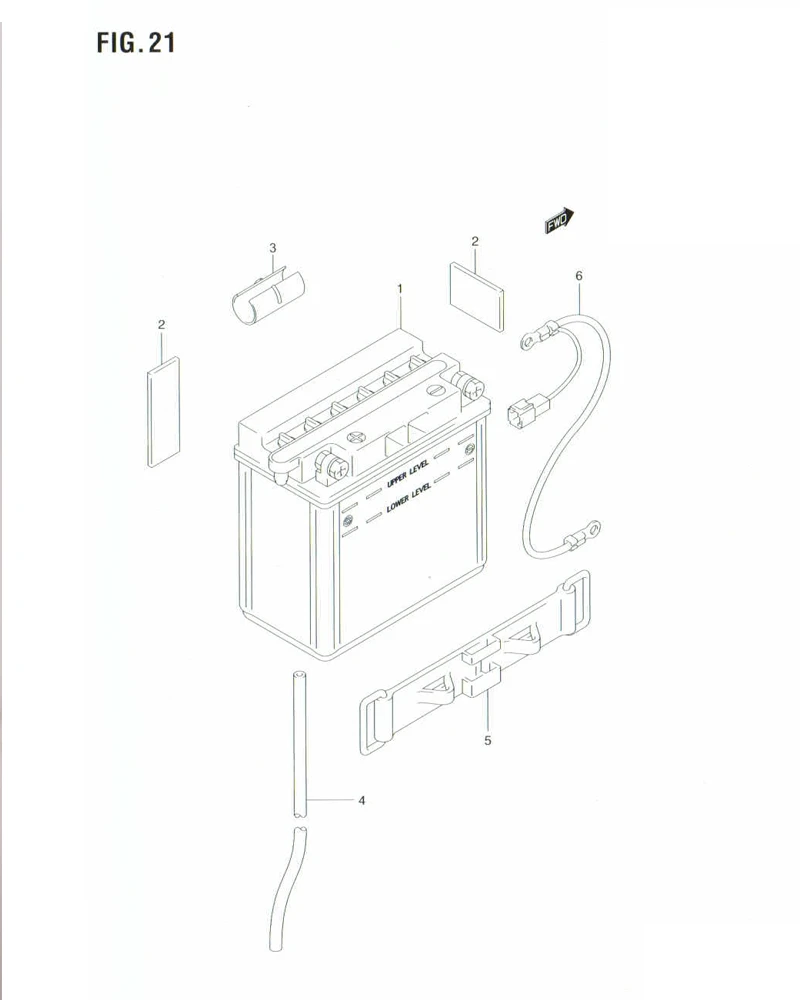

FIG. 21 BATTERY

FIG. 21 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-10310-000 BATTERY (YB7-A,12V,8AH) 1 -
2 33652-38000-000 PROTECTOR (30X40X3) 4 Rp3.000
3 DISCONTINUE
SUB: 33652-05310-000		 PROTECTOR, BATTERY 1 -
4 33680-08420-000
SUB: 33680-08401-000		 HOSE, BATTERY EXHAUST 1 Rp16.500
5 33651-45F12-000
SUB: 33651-45F10-000		 BAND 1 Rp38.000
6 33860-05550-000 LEAD WIRE, BATTERY (-) 1 Rp49.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
