Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

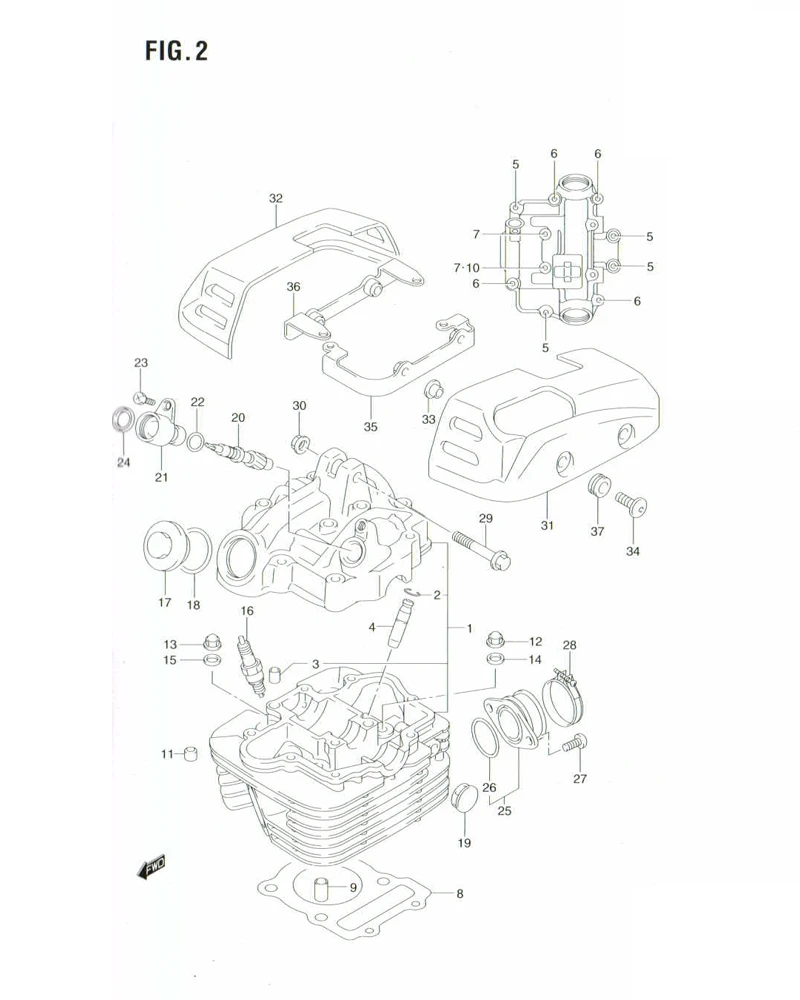

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1-2 111000-12F60000 HEAD ASSY, CYLINDER 1 -
1-1 111000-12F50000 HEAD ASSY, CYLINDER 1 -
1 11151-45000-000 PAD, RUBBER 16 Rp4.000
2 09381-10004-000 .RING, VALVE GUIDE 2 Rp3.000
3 09206-08001-000 .PIN 2 Rp5.500
4 11115-12F70-000 GUIDE, VALVE (OS:0.3 2 Rp179.500
5 01550-06357-000 BOLT (6X35) 4 Rp18.500
6 DISCONTINUE
SUB: 01550-06407-000		 BOLT (6X40) 4 -
7 01550-06607-000 BOLT (6X60) 2 Rp20.000
8 11141-12F50-000 GASKET, CYLINDER HEAD 1 Rp70.000
9 04211-11169-000 PIN, CYLINDER HEAD 2 Rp2.000
10 09168-06023-000 WASHER 1 Rp13.500
11 11151-45000-000 PAD, RUBBER 16 Rp4.000
12 09159-08137-000
SUB: 09159-08074-000		 NUT 2 Rp11.000
13 09159-08137-000
SUB: 09159-08074-000		 NUT 2 Rp11.000
14 09168-08032-000 GASKET (8.5X17X2.3) 2 Rp10.500
15 09168-08032-000 GASKET (8.5X17X2.3) 2 Rp10.500
16-6 09482-00577-000 SPARK PLUG (B7RC) 1 -
16-4 09482-00458-000 SPARK PLUG (NGK,CR9E) 1 Rp143.000
16-2 09482-00578-000 SPARK PLUG (B8RC) 1 -
16-1 09482-00456-000 SPARK PLUG (NGK,CR8E) 1 Rp26.000
16-3 09482-00516-000 SPARK PLUG (NGK, CR7E) 1 Rp157.500
17 11175-18910-000 CAP, INSPECTION 2 Rp32.500
18 09280-30001-000 O RING (D:3.0,ID:29.5) 2 Rp10.000
19 09241-22002-000 PLUG, HEAD 1 Rp29.500
20 26431-05220-000 GEAR, TACHOMETER DRIVEN 1 Rp57.000
21 26441-49000-000 SLEEVE 1 Rp165.500
22 26451H45000H000
SUB: 26451-45000-000		 SEAL BAND 1 Rp12.000
23 09128-05101-000 SCREW 1 Rp9.500
24 09289-05024-000
SUB: 09289-05002-000		 OIL SEAL 1 Rp45.000
25 13101-053A0-000 PIPE ASSY, INTAKE 1 Rp78.500
26 09280-32006-000 .O RING (D:2.4,ID:31.7) 1 Rp5.500
27 02122-0616A-000
SUB: 02122-0616B-000		 SCREW 2 Rp3.500
28 13170-12F50-000 CLAMP 1 Rp18.000
29 09103-08081-000 BOLT (8X50) 1 Rp18.500
30 08319-3108A-000 NUT 1 Rp4.000
31 11171-12F50-000 CAP, CYLINDER HEAD COVER, LH 1 Rp233.000
32 DISCONTINUE
SUB: 11172-12F50-000		 CAP, CYLINDER HEAD COVER, RH 1 -
33 11177-12F50-000 SPACER, HEAD COVER CAP 4 Rp8.000
34 09106-06126-000
SUB: 11178-12F50-000		 BOLT 4 Rp25.500
35 11179-12F50-000 BRACKET, CYLINDER HEAD CAP, LH 1 Rp35.500
36 11179-12F60-000 BRACKET, CYLINDER HEAD CAP, RH 1 Rp35.000
37 11181-12F50-000 CUSHION, HEAD COVER CAP 4 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
