Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

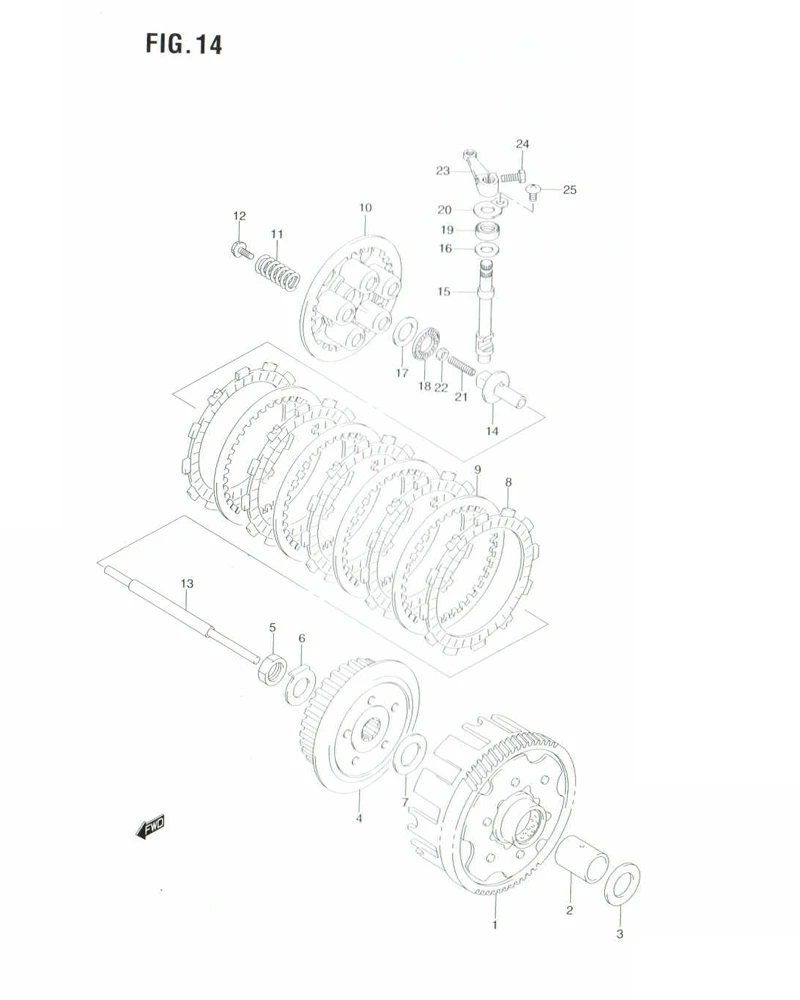

FIG. 14 CLUTCH (FL125RCDM)

FIG. 14 CLUTCH (FL125RCDM)
No No. Part Description Qty Price Per Pcs Remarks
1 21200-05220-000 GEAR ASSY, PRIMARY DRIVE 1 Rp637.000
2 21251H05200H000
SUB: 21251-05200-000		 SPACER, PRI DRIVE 1 Rp56.500
3 08211-20353-000 WASHER 1 Rp15.500
4 21411-05210-000 HUB, SLEEVE 1 Rp135.000
5 09140-16034-000 NUT 1 Rp17.000
6 09169-16009-000
SUB: 09169-16003-000		 LOCK WASHER 1 Rp5.500
7 08211-20352-000 WASHER 1 Rp10.500
8 21441H13A20H000
SUB: 21441-13A20-000		 PLATE, DRIVE 5 Rp45.500
9 21451-19A00-000
SUB: 21451-28000-000		 PLATE, DRIVEN 4 Rp46.500
10 21462-14103-000 DISK, PRESSURE 1 Rp80.000
11 09440-15043-000
SUB: 09440-15014-000		 SPRING 5 Rp4.000
12 09116-05020-000 BOLT (5X16) 5 Rp3.000
13-2 23110-05220-000 ROD, PUSH 1 Rp50.000
13-1 23110-05220-000
SUB: 23110-05203-000		 ROD, PUSH 1 Rp50.000
14 23011H38210H000
SUB: 23121-38210-000		 PIECE 1 Rp51.000
15 23122-05210-000
SUB: 23122-05200-000		 CAM SHAFT 1 Rp76.000
16 09181-10195-000 WASHER (10X20X1.0) 1 Rp6.500
17 09160-15045-000 WASHER (15.5X28X1) 1 Rp23.500
18 09263-15003-000 THRUST BEARING (15X28X2) 1 Rp59.500
19-1 09283-10013-000
SUB: 09282-10007-000		 OIL SEAL (10X20X1.0) 1 Rp19.500
19-2 09283-10013-000
SUB: 09282-10015-000		 OIL SEAL (10X20X6) 1 Rp19.500
20 DISCONTINUE
SUB: 23117-05210-000		 RETAINER, CLUTCH RELEASE 1 -
21 09134-06010-000 SCREW 1 Rp21.000
22 09140-06023-000 NUT 1 Rp11.500
23 23271-46010-000 ARM, RELEASE 1 Rp132.500
24 01500-0616A-000
SUB: 01500-06167-000		 BOLT 1 Rp6.500
25 02142-0610B-000 STOPPER, CLUTCH RELEASE 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
