Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

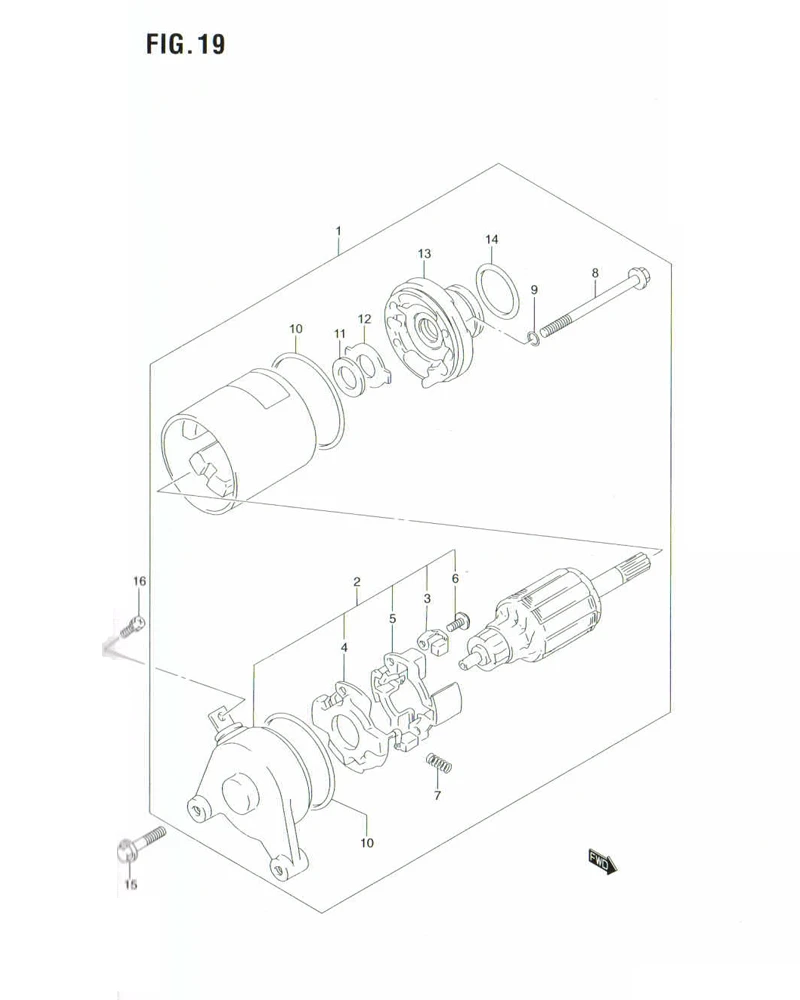

FIG. 19 STARTING MOTOR (DENSO)

FIG. 19 STARTING MOTOR (DENSO)
No No. Part Description Qty Price Per Pcs Remarks
1 31100-05530-000
SUB: 31100-05501-000		 MOTOR ASSY, STARTING 1 Rp555.000
2 DISCONTINUE
SUB: 31175-42A01-000		 .FRAME ASSY, END 1 -
3 31132-32C10-000 ..BRUSH 2 Rp97.500
4 31130-32C20-000 ..BRUSH 2 Rp202.500
5 31133-05530-000
SUB: 31133-32C10-000		 ..HOLDER, BRUSH 1 Rp53.500
6 DISCONTINUE
SUB: 02112-34123-000		 ..SCREW 2 -
7 31135-32C10-000 .SPRING 4 Rp28.500
8 DISCONTINUE
SUB: 31281-32C10-000		 .BOLT 2 -
9 DISCONTINUE
SUB: 31156-38300-000		 .O RING 2 -
10 31264-32C10-000 .O RING 2 Rp5.000
11 31361-38300-000 .SHIM 1 Rp10.500
12 DISCONTINUE
SUB: 31361-32C10-000		 .PLATE LOCK 1 -
13 DISCONTINUE
SUB: 31150-06C00-000		 .BRACKET 1 -
14 09280-24003-000 .O RING (D:3,ID:24.5) 1 Rp4.500
15 01547-06307-000 BOLT 2 Rp7.500
16 DISCONTINUE
SUB: 09137-05004-000		 SCREW 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
