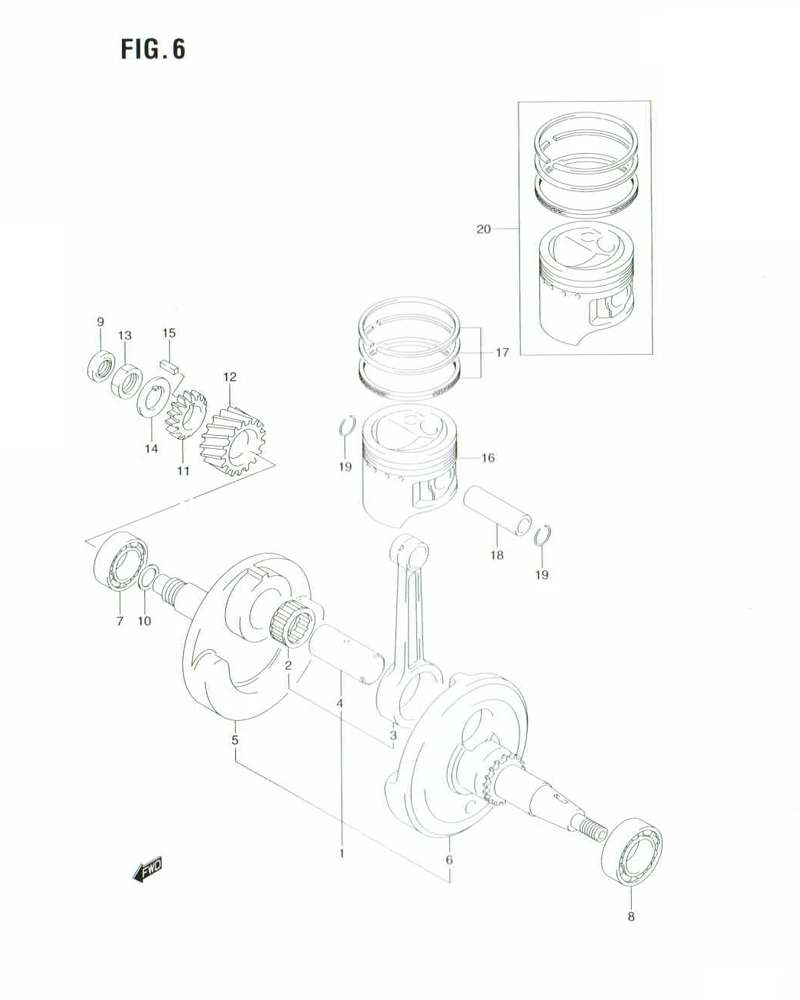

FIG. 6 CRANKSHAFT

FIG. 6 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-12FD1-000 CRANKSHAFT ASSY 1 Rp1.076.500
2 09263-28027-0B0 .BEARING (28X36X15.8) 1 Rp205.000
3 12161-12F80-0B0 .ROD, CONNECTING 1 Rp143.000
4 12211-05241-000 .PIN, CRANK 1 Rp72.000
5 DISCONTINUE
SUB: 12221-05220-000		 .CRANKSHAFT,RH 1 -
6 DISCONTINUE
SUB: 12261-12F50-000		 .CRANKSHAFT, LH 1 -
7 19262-28035-000 BEARING, RH (28X68X18) 1 -
8 09262-35038-000 BEARING, LH (35X72X17) 1 Rp324.000
9 09282-12009-000 OIL SEAL, RH ( 12X21X7) 1 Rp68.000
10-19 09181-28029-000 SHIM, CRANKSHAFT, RH (1.80) 1 Rp14.000
10-18 DISCONTINUE
SUB: 09181-28028-000		 SHIM, CRANKSHAFT, RH (1.75) 1 -
10-17 DISCONTINUE
SUB: 09181-28027-000		 SHIM, CRANKSHAFT, RH (1.70) 1 -
10-16 DISCONTINUE
SUB: 09181-28026-000		 SHIM, CRANKSHAFT, RH (1.65) 1 -
10-15 DISCONTINUE
SUB: 09181-28025-000		 SHIM, CRANKSHAFT, RH (1.60) 1 -
10-14 DISCONTINUE
SUB: 09181-28024-000		 SHIM, CRANKSHAFT, RH (1.55) 1 -
10-13 09181-28211-000 SHIM, CRANKSHAFT, RH (1.50) 1 Rp15.500
10-12 DISCONTINUE
SUB: 09181-28023-000		 SHIM, CRANKSHAFT, RH (1.45) 1 -
10-11 DISCONTINUE
SUB: 09181-28210-000		 SHIM, CRANKSHAFT, RH (1.40) 1 -
10-9 12228-12K00-0R0
SUB: 09181-28209-000		 SHIM, CRANKSHAFT, RH (1.30) 1 Rp10.500
10-8 12228-12K00-0P0
SUB: 09181-28207-000		 SHIM, CRANKSHAFT, RH (1.25) 1 Rp10.500
10-7 12228-12K00-0N0
SUB: 09181-28204-000		 SHIM, CRANKSHAFT, RH (1.20) 1 Rp10.500
10-6 12228-12K00-0M0
SUB: 09181-28202-000		 SHIM, CRANKSHAFT, RH (1.15) 1 Rp10.500
10-5 12228-12K00-0L0
SUB: 09181-28200-000		 SHIM, CRANKSHAFT, RH (1.10) 1 Rp10.500
10-4 12228-12K00-0K0
SUB: 09181-28197-000		 SHIM, CRANKSHAFT, RH (1.05) 1 Rp10.500
10-3 12228-12K00-0J0
SUB: 09181-28194-000		 SHIM, CRANKSHAFT, RH (1.00) 1 Rp10.500
10-2 12228-12K00-0H0
SUB: 09181-28193-000		 SHIM, CRANKSHAFT, RH (0.95) 1 Rp10.500
10-1 12228-12K00-0G0
SUB: 09181-28192-000		 SHIM, CRANKSHAFT, RH (0.90) 1 Rp10.500
10-10 12228-12K00-0S0
SUB: 09181-28022-000		 SHIM, CRANKSHAFT, RH (1.35) 1 Rp10.500
11 16321H05201H000
SUB: 16321-05220-000		 GEAR, OIL PUMP DRIVE 1 Rp53.500
12 21111H05200H000
SUB: 21111-05200-0C0		 GEAR, PRIMARY DRIVE (NT:17) 1 Rp172.500
13 09140-16035-000 NUT 1 Rp21.500
14 09166-16012-000 LOCK WASHER 1 Rp12.500
15 09421-04004-000 KEY, GEAR 1 Rp6.500
16 12111-12F50-0F0 PISTON 1 Rp94.000
17 12140-21F00-000
SUB: 12140-16E00-000		 RING SET, PISTON 1 Rp190.500
18 12151-20E20-000
SUB: 12151-12F00-000		 PIN, PISTON 1 Rp23.000
19 09381-14001-000 CIRCLIP 2 Rp2.500
20 12100-12F50-050 PISTON SET (OS:0.5) 1 Rp792.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
