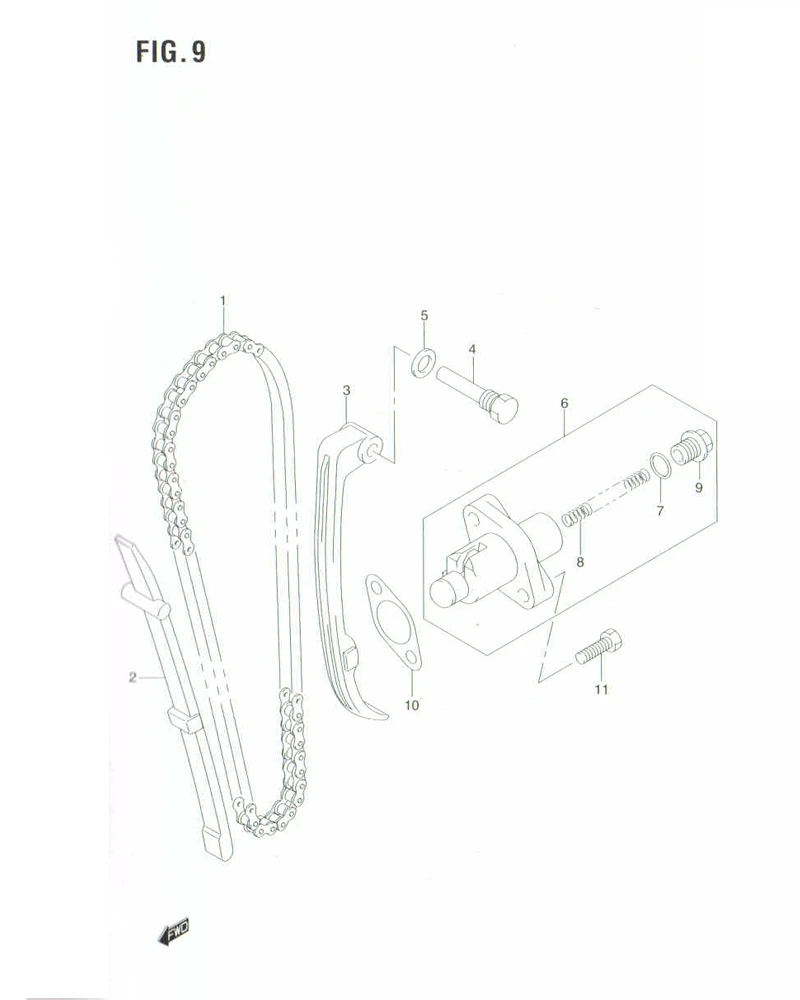

FIG. 9 CAM CHAIN

FIG. 9 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-12F60-000 CHAIN, CAM SHAFT DRIVE 1 -
2 12771-12F60-000 GUIDE, CAM CHAIN 1 -
3 12811-12F60-000 TENSIONER, CAM CHAIN 1 -
4 12812-32400-000 BOLT 1 Rp21.500
5 09168-08016-000 WASHER 1 Rp25.000
6 12830-12FA0-000
SUB: 12830-12F50-000		 ADJUSTER ASSY, TENSIONER 1 Rp94.500
7 12832-12F50-000 .O RING 1 Rp5.500
8 12833-12F50-000 .SPRING 1 Rp11.500
9 12834-12F50-000 .PLUG 1 Rp54.500
10 12837-32430-000
SUB: 12837-32410-000		 GASKET, TENSIONER ADJUSTER 1 Rp6.000
11 01500-0620B-000 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
