Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

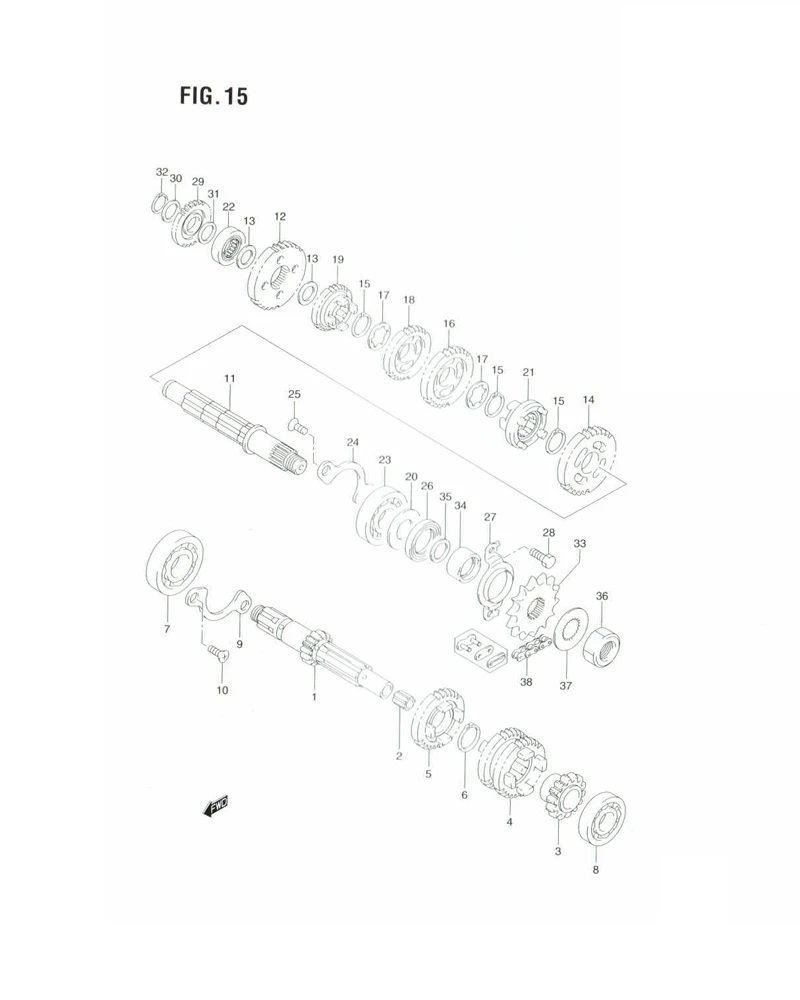

FIG. 15 TRANSMISSION

FIG. 15 TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 24120-12F10-000
SUB: 24121-05260-000		 COUNTERSHAFT (NT:11) 1 Rp380.500
2 24125-38201-000 BUSH 1 Rp34.500
3 24221-25H00-000
SUB: 24221-05310-000		 GEAR, 2ND DRIVE (NT:14) 1 Rp54.000
4 24231-05220-000 GEAR, 3/4 DRIVE (NT:19/21) 1 Rp101.000
5 24251-45F00-000 GEAR, 5TH DRIVE (NT:23) 1 Rp52.000
6 09380-20009-000 CIRCLIP 1 Rp10.000
7 08110-62040-000 BEARING, RH 1 Rp43.000
8 08123-60020-000 BEARING, LH 1 Rp34.000
9 DISCONTINUE
SUB: 24741-05200-000		 HOLDER, BEARING 1 -
10 02122-0612A-000 SCREW 2 Rp3.500
11 24130-05220-000 DRIVE SHAFT 1 Rp126.500
12 24310-05230-000 GEAR, 1ST DRIVEN (NT:33) 1 Rp94.500
13 08211-15251-000 WASHER 2 Rp4.500
14 24320-05240-000 GEAR, 2ND DRIVEN (NT:26) 1 Rp80.000
15 09380-20009-000 CIRCLIP 3 Rp10.000
16 24331-05220-000 GEAR, 3RD DRIVEN (NT:26) 1 Rp73.500
17 09167-2001 WASHER (20.5X25X0.5) 2 -
18 24341-45F00-000 GEAR, 4TH DRIVEN (NT:23) 1 Rp60.000
19 24351-45F00-000 GEAR, 5TH DRIVEN (NT:22) 1 Rp63.000
20 24359-05200-000 WASHER 1 Rp12.000
21 24421-05320-000 WHEEL 1 Rp66.000
22 08110-62020-000 BEARING, RH 1 Rp52.000
23 09262-20069-000
SUB: 08113-62040-000		 BEARING, LH 1 Rp154.500
24 DISCONTINUE
SUB: 24741-05200-000		 HOLDER, BEARING 1 -
25 02122-0612A-000 SCREW 2 Rp3.500
26-1 09283-27010-000 OIL SEAL, LH (27X40X6) 1 Rp57.500
26-2 09283-27030-000
SUB: 09283-27017-000		 OIL SEAL, LH (27X40X8) 1 Rp26.000
27 DISCONTINUE
SUB: 24751-05220-000		 HOLDER, OIL SEAL 1 -
28 01500-0610A-000
SUB: 01500-0610B-000		 BOLT 2 Rp6.500
29 26260-05240-000
SUB: 26260-05210-000		 GEAR, KICK IDLE (NT:26) 1 Rp63.000
30 08211-15201-000 WASHER, R 1 Rp13.500
31 08211-15201-000 WASHER, L 1 Rp13.500
32 08331-31159-000 CIRCLIP 1 Rp14.000
33 27511-41320-000 SPROCKET (NT:14) 1 Rp47.000
34 27531-05220-000 SPACER 1 Rp44.500
35 09280-19005-000 O RING (D:2.40,ID:19) 1 Rp3.500
36 09140-16017-000 NUT 1 Rp20.500
37 09167-20012-000 WASHER (18X38X0,8) 1 Rp5.500
38 27600-29B40-118 CHAIN (RK428FDZ,118LE) 1 Rp148.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
