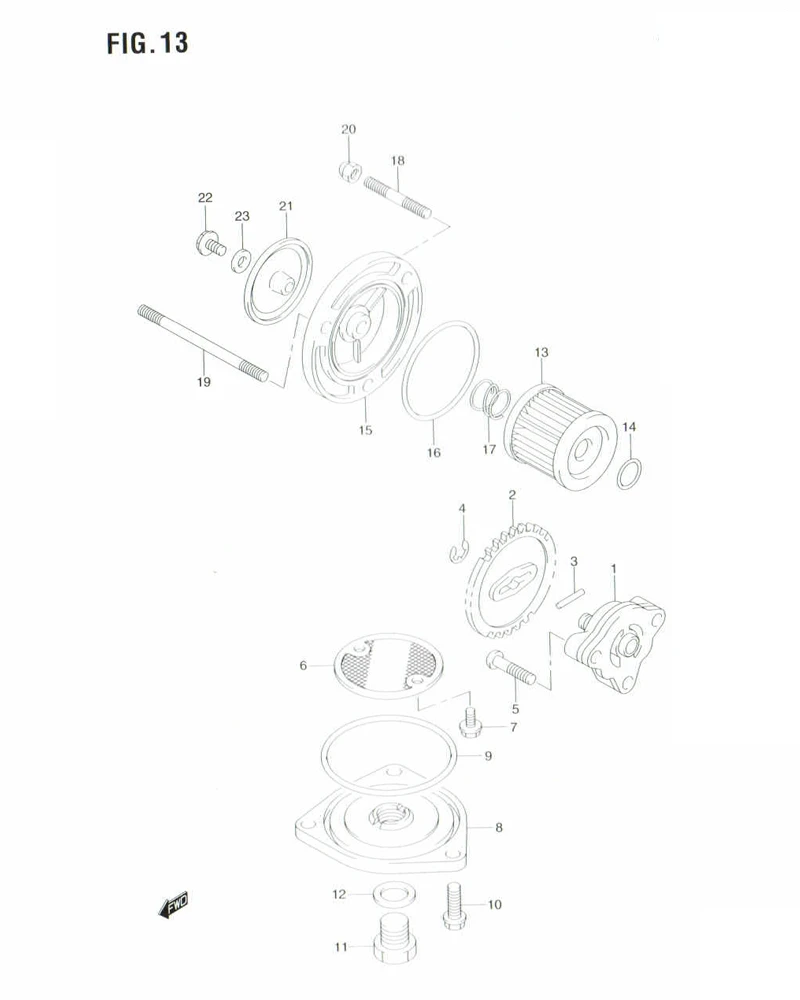

FIG. 13 OIL PUMP

FIG. 13 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-05210-000
SUB: 16400-05201-000		 PUMP ASSY, ENGINE OIL 1 Rp169.000
2 16331-12F10-000
SUB: 16331-12F00-000		 GEAR, DRIVEN (NT:300 1 Rp47.500
3 09261-02001-000 PIN 1 Rp9.000
4 08332-1106A-000
SUB: 08332-1106B-000		 CIRCLIP 1 Rp8.500
5 02112-0625A-000 SCREW 3 Rp4.000
6 16520-05202-000 STRAINER, ENGINE OIL 1 Rp24.000
7 02112-7512A-000 SCREW 2 Rp14.000
8 16523H05200H000
SUB: 16523-05200-000		 CAP, OIL STRAINER 1 Rp56.500
9 09280-60005-000 O RING (D:2.4,ID:60.5) 1 Rp14.000
10 01547-0620B-000 BOLT 3 Rp6.500
11 09247-14043-000 PLUG, DRAIN 1 Rp13.000
12 09168-14002-000 GASKER 1 Rp14.000
13 16510-45H20-000
SUB: 16510-05240-000		 FILTER, ENGINE OIL 1 Rp9.000
14 09280-13004-000 O RING (D:1.9,ID:13) 1 Rp14.000
15 16512-12F50-000 CAP, OIL FILTER 1 Rp59.500
16 09280-54001-000 O RING (D:2.4,ID:52.6) 1 Rp3.000
17 DISCONTINUE
SUB: 09440-18002-000		 SPRING 1 -
18 09108-06128-000 STUD BOLT 2 Rp5.500
19 09108-06133-000 STUD BOLT 1 Rp10.500
20 08313-10067-000 NUT 3 Rp11.500
21 16584-12F70-000 CAP, ENGINE OIL FILLER OUTER 1 Rp101.500
22 02142-0612A-000
SUB: 02142-0612B-000		 BOLT, ENGINE OIL FILLER CAP 1 Rp4.000
23 09168-06023-000 GASKET, OIL FILLER OUTER BOLT 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
