Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

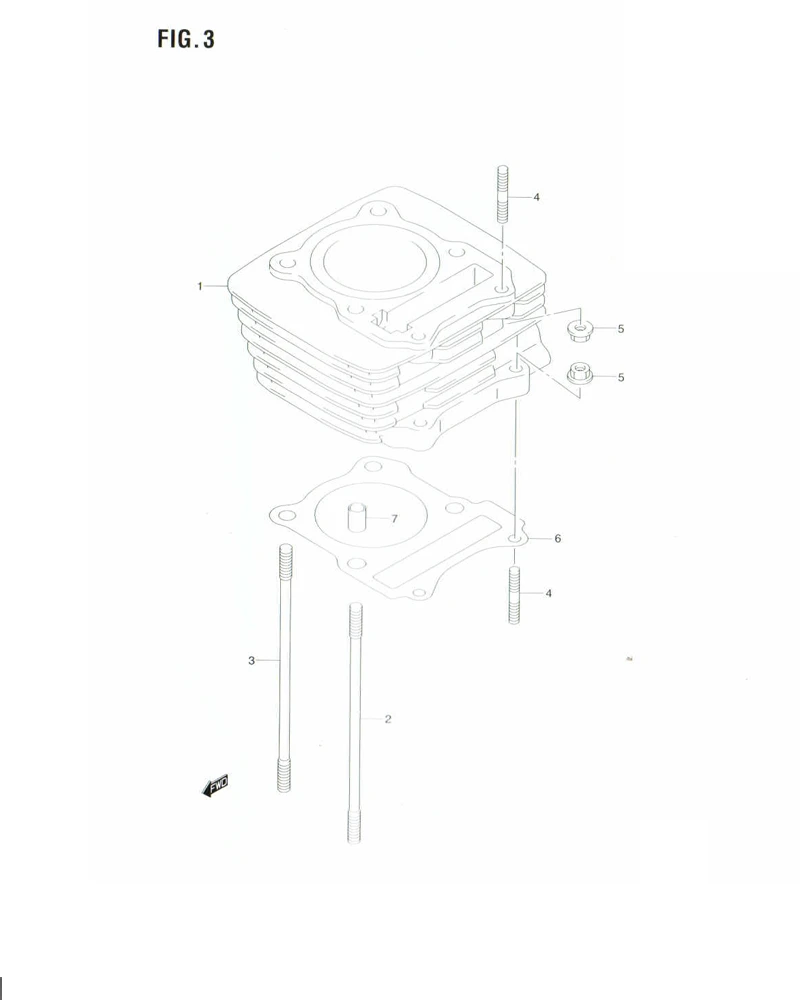

FIG. 3 CYLINDER

FIG. 3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-1 11210-12F50-0F0 CYLINDER 1 Rp931.500
1-2 11210-12F60- 0F0 CYLINDER 1 -
2 09108-08052-000
SUB: 09108-08062-000		 STUD BOLT (L:150) 2 Rp30.000
3 09108-08089-000 STUD BOLT (L:155) 2 Rp30.000
4 01421-0625A-000 STUD BOLT (L:25) 4 Rp7.000
5 08316-10067-000 NUT 4 Rp15.500
6 11241-05321-000
SUB: 11241-05311-000		 GASKET, CYLINDER (NA) 1 Rp11.000
7 04211-11169-000 PIN (L:16) 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
