Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

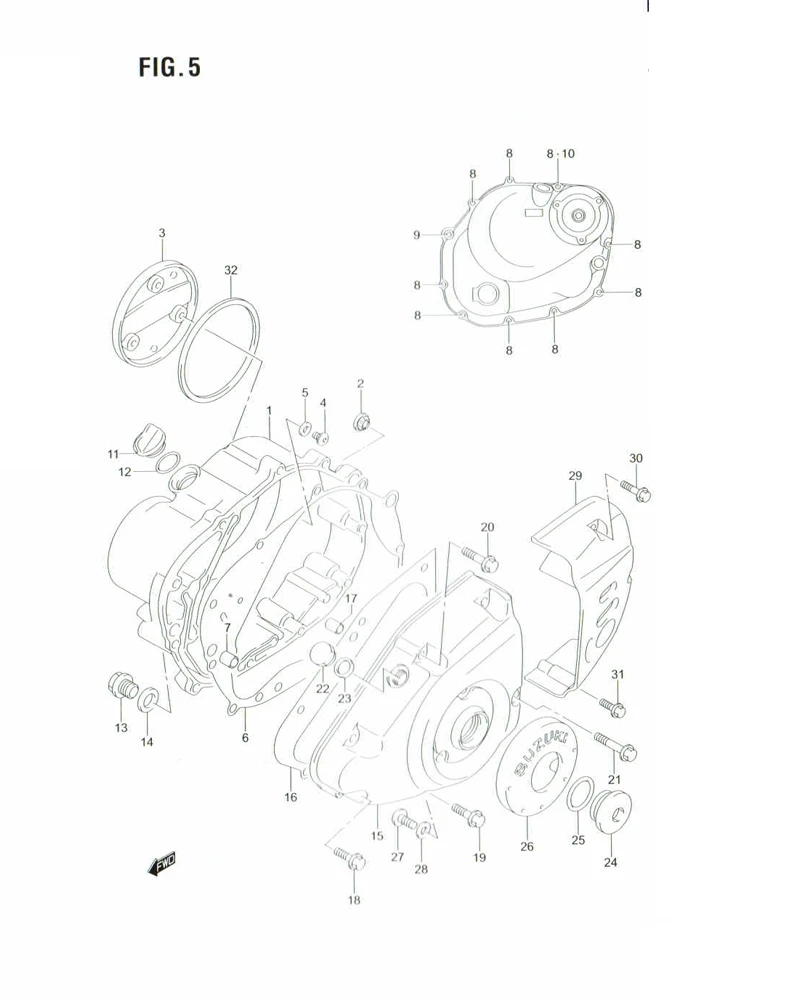

FIG. 5 CRANKCASE COVER

FIG. 5 CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-45F00-000 COVER, CLUTCH 1 Rp570.000
2 11971-45010-000 .LENS, OIL LEVEL 1 Rp33.500
3 11383-12F70-000 CAP, CLUTCH COVER 3 Rp63.500
4 02142-0612A-000
SUB: 02142-0612B-000		 BOLT, CLUTCH COVER CAP 3 Rp4.000
5 09168-06023-000 GASKET 1 Rp13.500
6 11482-05220-000
SUB: 11482-05211-000		 GASKET, CLUTCH COVER 1 Rp109.000
7 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
8 01547-06307-000 BOLT (6X30) 9 Rp7.500
9 01547-0645A-000
SUB: 01547-06457-000		 BOLT (6X45) 1 Rp7.000
10 09168-06023-000 GASKET 1 Rp13.500
11 11971-45F00-000 PLUG, OIL FILLER 1 Rp18.500
12 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
13 09247-14052-000
SUB: 09247-14026-000		 PLUG, OIL CHECK 1 Rp7.500
14 09168-14002-000 GASKET 1 Rp14.000
15 11351-12F51-000
SUB: 11351-12F50-000		 COVER, MAGNETO 1 Rp409.500
16 11483-05320-000
SUB: 11483-05312-000		 GASKET, MAGNETO COVER 1 Rp61.000
17 04211-09129-000 PIN 1 Rp10.500
18 01547-06307-000 BOLT (6X30) 2 Rp7.500
19 01547-06357-000 BOLT (6X35) 2 Rp13.000
20 01547-06407-000 BOLT (6X40) 2 Rp8.000
21 01547-0650A-000
SUB: 01547-06507-000		 BOLT (6X50) 1 Rp7.000
22 09247-12104-000 PLUG, T.D.C 1 Rp17.500
23 09168-12002-000 GASKET 1 Rp10.000
24 09259-26016-000 PLUG 1 Rp38.500
25 09280-22008-000 O RING (D:3.1,ID:22.7) 1 Rp3.500
26 11384-12F70-000 CAP, MAGNETO COVER 1 Rp64.500
27 DISCONTINUE
SUB: 11358-12F50-000		 BOLT, MAGNETO COVER CAP 3 -
28 09168-06023-000 GASKET 3 Rp13.500
29 11361-12F70-000 COVER, ENGINE SPROCKET 1 Rp145.500
30 01547-05357-000 BOLT 2 Rp7.000
31 01547-05257-000 BOLT 1 Rp12.000
32 11389-45F00-000 CUSHION, CLUTCH COVER CAP 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
