Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

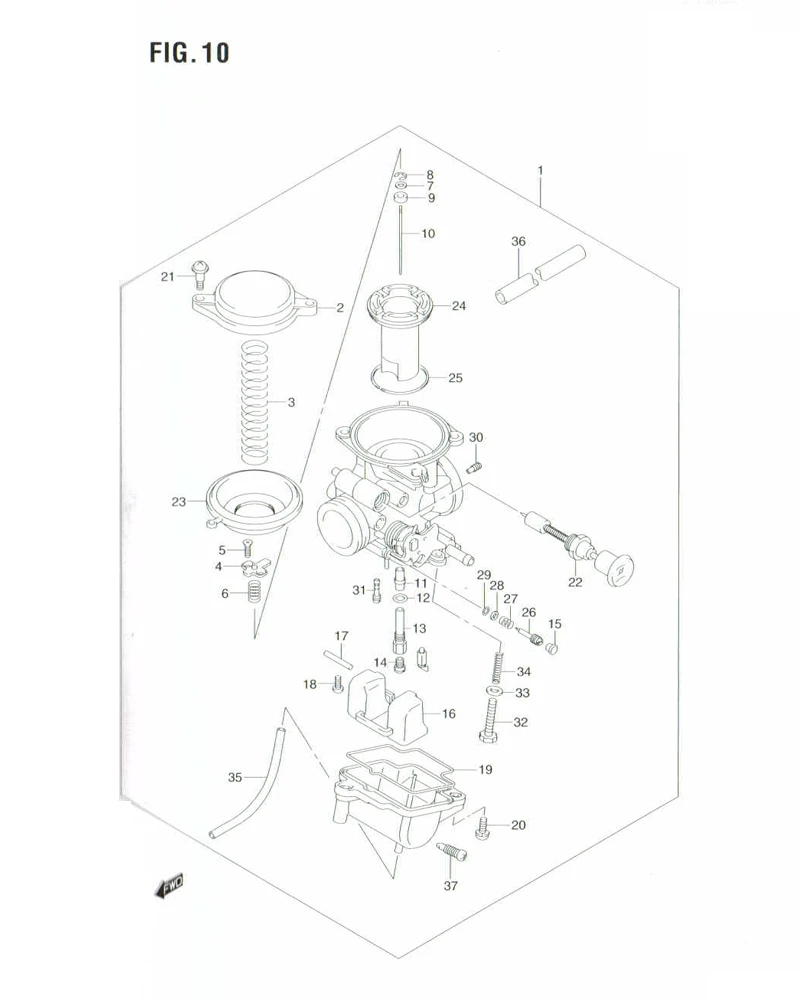

FIG. 10 CARBURETOR (MODEL K5)

FIG. 10 CARBURETOR (MODEL K5)
No No. Part Description Qty Price Per Pcs Remarks
1 13200-054G1-000 CARBURETOR ASSY 1 Rp2.253.500
2 13502-12F00-000 .DIAPHRAGM COVER ASSY 1 Rp57.500
3 13417-47E00-000 .SPRING 1 Rp19.000
4 DISCONTINUE
SUB: 13581-05F00-000		 .PLATE 1 -
5 13603-05F00-000 .SCREW 2 Rp8.000
6 13388-20E20-000 .SPRING 1 Rp30.000
7 13382-46E00-000 .WASHER 1 Rp4.500
8 13394-17E60-000 .E RING 1 Rp12.000
9 13574-05F00-000 .RING 1 Rp11.000
10 13383-054G0-000 .NEEDLE, JET (4DH41-2) 1 Rp78.000
11 DISCONTINUE
SUB: 09494-00907-000		 .JET, NEEDLE (P-0) 1 -
12 13246-43010-000 .O RING 1 Rp21.500
13 13385-05F00-000 .HOLDER, JET 1 Rp79.000
14 09491-22013-000 .JET, MAIN (110) 1 Rp25.000
15 13282-05G00-000 .CAP 1 Rp7.000
16 13240-12FG0-000 .FLOAT ASSY 1 Rp51.000
17 13254-20010-000 .PIN, FLOAT 1 Rp7.500
18 02112-04083-000 .SCREW 1 Rp7.500
19 13251-47E00-000 .GASKET, FLOAT BODY 1 Rp44.000
20 13601-05148-XC0
SUB: 13601-05148-000		 .SCREW 2 Rp22.500
21 13247-33E00-000 .SCREW 2 Rp18.000
22 13411-054A0-000 .PLUNGER ASSY 1 Rp97.000
23 13507-054G0-000 .DIAPHRAGM 1 Rp60.500
24 13500-48F00-000 .VALVE, PISTON 1 Rp621.500
25 DISCONTINUE
SUB: 13504-16E00-000		 .RING 1 -
26 13279-12F20-000 .ADJUSTER (2,5/8) 1 Rp72.500
27 13268-47070-000 .SPRING 1 Rp8.000
28 13291-29900-000 .WASHER 1 Rp6.500
29 13295-29900-000 .O RING 1 Rp8.000
30 09493-25003-000 .JET, AIR (1.25) 1 Rp25.000
31 09492-12007-000 .JET, PILOT (12.5) 1 Rp88.000
32 13267-20E20-000 .SCREW, ADJUSTER 1 Rp45.500
33 DISCONTINUE
SUB: 13386-09410-000		 .PACKING 1 -
34 DISCONTINUE
SUB: 13268-054A0-000		 .SPRING 1 -
35 09351-30001-600
SUB: 09351-30503-600		 .HOSE (3X5X600) 1 Rp33.500
36 09352-40703-230
SUB: 09352-40703-600		 .HOSE (4X7X600) 1 Rp11.000
37 13247-02340-000 .SCREW 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
