Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 46 FRONT MASTER CYLINDERFIG. 1 GASKET SETFIG.2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAM SHAFT - VALVEFIG. 9 CAM CHAINFIG. 10 CARBURETOR (MODEL K5)FIG. 10A CARBURETOR (MODEL K6/K7)FIG. 11 AIR CLEANERFIG. 12 MUFFLER (MODEL K5)FIG. 12A MUFFLER (MODEL K6/K7)FIG. 13 OIL PUMPFIG. 13A 2ND AIR (MODEL K6/K7)FIG. 14 CLUTCH (FL125RCDM)FIG. 15 TRANSMISSIONFIG. 16 GEAR SHIFTINGFIG. 17 KICK STARTERFIG. 18 STARTING MOTOR (DAICHOKOU)FIG. 19 STARTING MOTOR (DENSO)FIG. 20 MAGNETOFIG. 21 BATTERYFIG. 22 ELECTRICALFIG. 23 SPEEDOMETER (MODEL K5/K6)FIG. 23A SPEEDOMETER (MODEL K7)

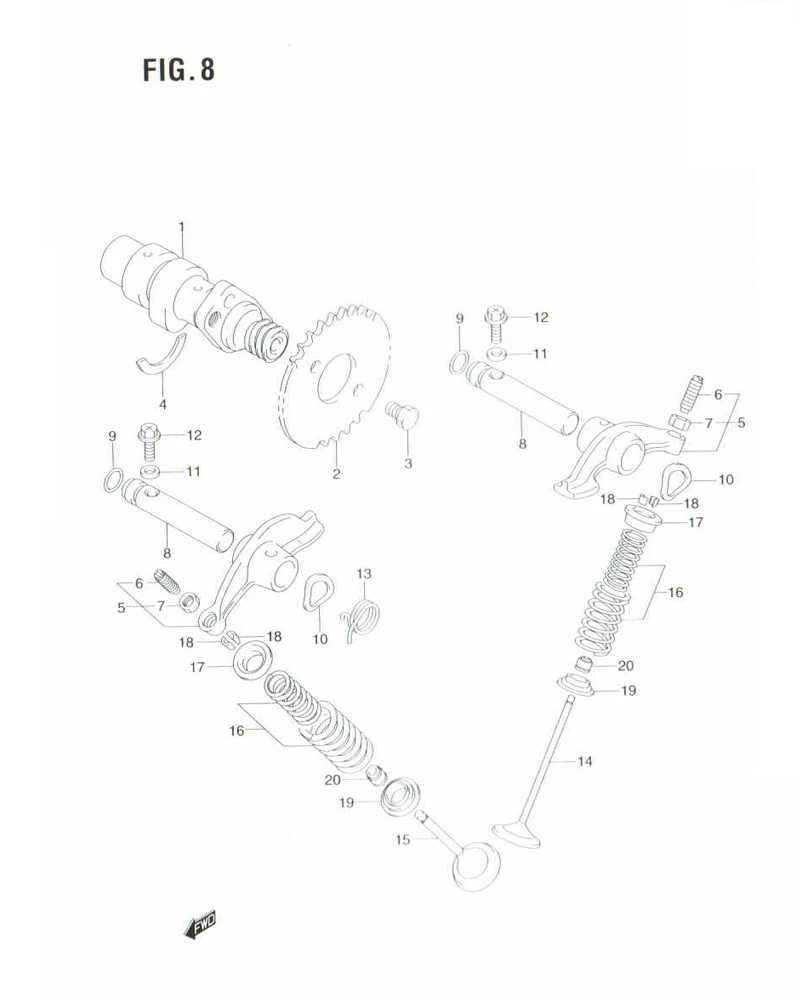

FIG. 8 CAM SHAFT - VALVE

FIG. 8 CAM SHAFT - VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12711-12F50-000 CAM SHAFT 1 Rp309.000
2 12741-12F70-000 SPROCKET 1 Rp52.000
3 DISCONTINUE
SUB: 09111-06032-000		 BOLT (6X10.5) 2 -
4 09390-22022-000 C RING 1 -
5 12850-25C00-000 ARM, VALVE ROCKER 2 Rp234.500
6 12842M32411-000
SUB: 12842-32411-000		 .SCREW 2 Rp11.000
7 12843-32400-000 .NUT 2 Rp19.000
8 12861H05201H000
SUB: 12861-05201-000		 SHAFT, ROCKER ARM 2 Rp41.500
9 09280-09005-000 O RING (D:1.9,ID:8.6) 2 Rp23.000
10 09164-12032-000
SUB: 09164-12025-000		 WAVE WASHER 2 Rp4.500
11 09168-06023-000 GASKET 2 Rp13.500
12 01262-06257-000 BOLT 2 -
13 09448-23002-000 SPRING, VALVE ROCKER ARM EXH 1 Rp7.500
14 12911-12F60-000 VALVE, INTAKE 1 Rp311.000
15 12912-12F60-000 VALVE, EXHAUST 1 Rp512.500
16 12920-26H00-000
SUB: 12920-12F50-000		 SPRING SET, VALVE 2 Rp64.000
17 DISCONTINUE
SUB: 12931-09400-000		 RETAINER, SPRING 2 -
18 12932-36H00-000
SUB: 12932-27A10-000		 COTTER, VALVE 4 Rp10.500
19 12933-39E00-000 SEAT, SPRING 2 Rp40.500
20-1 09289-05011-000 OIL SEAL 2 Rp40.500
20-2 09289-05018-000 OIL SEAL 2 Rp24.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
