SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

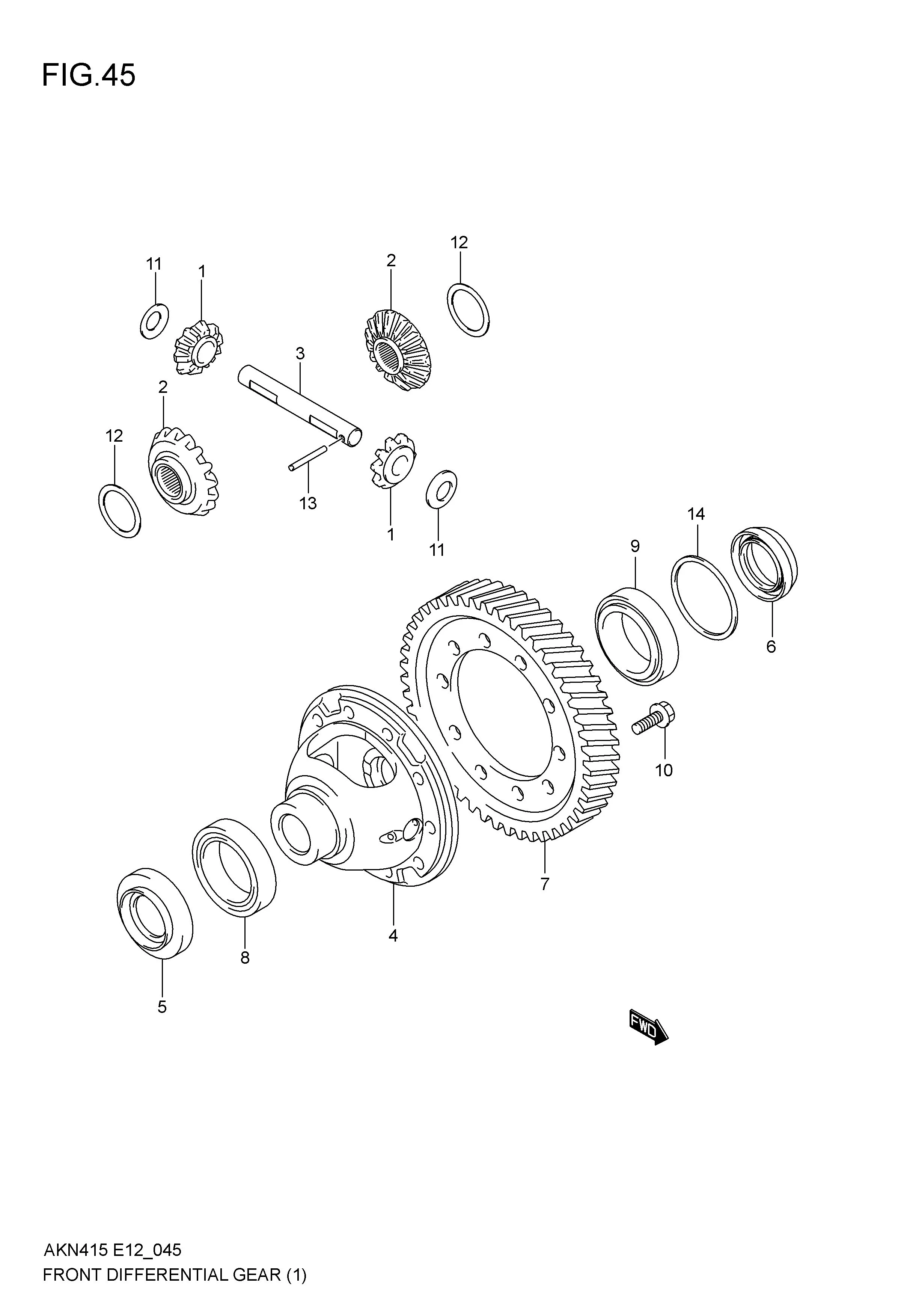

FRONT DIFFERENTIAL GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	27331M60MA1-000	PINION, DIFFERENTIAL	2	Rp139.000
2	27341M60MA2-000	GEAR, DIFFERENTIAL SIDE	2	Rp237.500
3	27351M60MA0-000	SHAFT, DIFF SIDE PINION	1	Rp104.500
4	27411M60MA0-000	CASE, FRONT DIFF	1	Rp1.447.000
5-1	27431M74LB0-000	SEAL, DIFF SIDE OIL, RH	1	Rp106.500	VENDOR:SIGMA FREUDENBERG NOK PVT.
5-2	27431M74LB0-000	SEAL, DIFF SIDE OIL, RH	1	Rp106.500	VENDOR:HI-TECH ARAI
6-1	27432M74LB0-000	SEAL, DIFF SIDE OIL, LH	1	Rp81.500	VENDOR:SIGMA FREUDENBERG NOK PVT.
6-2	27432M74LB0-000	SEAL, DIFF SIDE OIL, LH	1	Rp81.500	VENDOR:HI-TECH ARAI
7	27511M60M01-000	GEAR, FINAL	1	Rp1.701.500
8	27521-73RA0-000 SUB: 27521B77M00N000	BEARING ASSY, DIFF SIDE, RH	1	Rp182.500
9	27524M86J20-000	BEARING ASSY, DIFF SIDE, LH	1	Rp416.000
10	09103-10189-000	BOLT, FINAL GEAR	10	Rp29.000
11	09164-17011-000	WASHER, DIFF SIDE PINION	2	Rp29.000
12-7	09160-38009-000	WASHER (T:1.15)	1	Rp42.500
12-1	09160-38003-000	WASHER (T:0.85)	1	Rp42.500
12-2	09160-38004-000	WASHER (T:0.90)	1	Rp42.500
12-3	09160-38005-000	WASHER (T:0.95)	1	Rp42.500
12-4	09160-38006-000	WASHER (T:1.00)	1	Rp42.500
12-5	09160-38007-000	WASHER (T:1.05)	1	Rp42.500
12-6	09160-38008-000	WASHER (T:1.10)	1	Rp42.500
12-8	09160-38010-000	WASHER (T:1.20)	1	Rp42.500
13	09205M05007-000	PIN, DIFF SIDE PINION SHAFT	1	Rp5.000
14-17	DISCONTINUE SUB: 29541-79JA0-164	SHIM, DIFF SIDE BRG (T:1.64)	1	-
14-18	29541-79JA0-168	SHIM, DIFF SIDE BRG (T:1.68)	1	Rp64.000
14-16	29541-79JA0-160	SHIM, DIFF SIDE BRG (T:1.60)	1	Rp64.000
14-15	DISCONTINUE SUB: 29541-79JA0-156	SHIM, DIFF SIDE BRG (T:1.56)	1	-
14-14	DISCONTINUE SUB: 29541-79JA0-152	SHIM, DIFF SIDE BRG (T:1.52)	1	-
14-13	DISCONTINUE SUB: 29541-79JA0-148	SHIM, DIFF SIDE BRG (T:1.48)	1	-
14-12	DISCONTINUE SUB: 29541-79JA0-144	SHIM, DIFF SIDE BRG (T:1.44)	1	-
14-11	29541-79JA0-140	SHIM, DIFF SIDE BRG (T:1.40)	1	Rp64.000
14-10	29541-79JA0-136	SHIM, DIFF SIDE BRG (T:1.36)	1	Rp64.000
14-9	29541-79JA0-132	SHIM, DIFF SIDE BRG (T:1.32)	1	Rp64.000
14-8	DISCONTINUE SUB: 29541-79JA0-128	SHIM, DIFF SIDE BRG (T:1.28)	1	-
14-7	DISCONTINUE SUB: 29541-79JA0-124	SHIM, DIFF SIDE BRG (T:1.24)	1	-
14-6	DISCONTINUE SUB: 29541-79JA0-120	SHIM, DIFF SIDE BRG (T:1.20)	1	-
14-5	29541-79JA0-116	SHIM, DIFF SIDE BRG (T:1.16)	1	Rp64.000
14-4	29541-79JA0-112	SHIM, DIFF SIDE BRG (T:1.12)	1	Rp62.000
14-3	29541-79JA0-108	SHIM, DIFF SIDE BRG (T:1.08)	1	Rp64.000
14-2	DISCONTINUE SUB: 29541-79JA0-104	SHIM, DIFF SIDE BRG (T:1.04)	1	-
14-1	29541-79JA0-100	SHIM, DIFF SIDE BRG (T:1.00)	1	Rp60.000
