SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

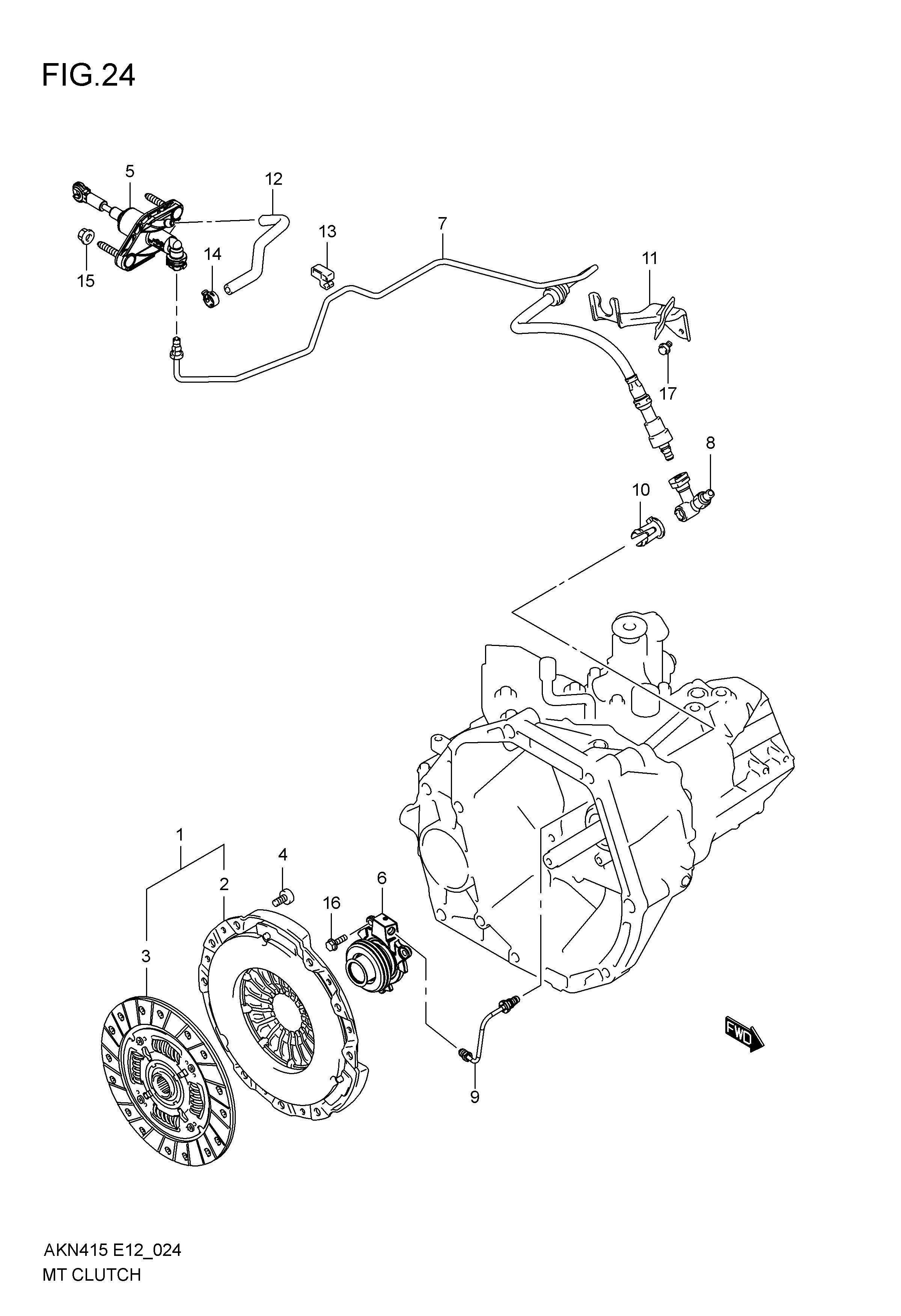

MT CLUTCH (5MT)

MT CLUTCH (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 22011M65M00-000		 COVER SET, CLUTCH 1 -
2 22100M65M00-000 .COVER ASSY, CLUTCH 1 Rp1.272.500
3 22400M65M00-000 .DISC, CLUTCH 1 Rp1.755.500
4 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, CLUTCH COVER 6 Rp6.000
5 23810M68M20-000 CYLINDER ASSY, CLUTCH MASTER 1 Rp736.000
6 23820-79J00-000 CYLINDER ASSY, CLUTCH OPERATING 1 Rp1.233.000
7 23830-61M20-000 PIPE ASSY,CLUTCH OIL RH 1 Rp1.034.500
8 23856-79J00-000 JOINT,CLUTCH OIL 1 Rp345.000
9 23840-86J00-000
SUB: 23840B86J00N000		 PIPE COMP,CLUTCH OIL HOUSING 1 Rp69.500
10 23874-64J00-000 SLEEVE, CLUTCH OIL BLEEDER 1 Rp21.000
11 23870M65M00-000 BRACKET, CLUTCH OIL HOSE 1 Rp31.000
12 23881M65M20-000 HOSE, CLUTCH RESERVOIR RH 1 Rp35.000
13 27978-71L00-000 CLAMP,CLUTCH OIL PIPE 1 Rp35.500
14 09401-12405-000 CLAMP 1 Rp16.500
15 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
16 01550-0620B-000
SUB: 01550B0620BN000		 BOLT 3 Rp3.500
17 02162-0612A-000 BOLT 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
