SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body

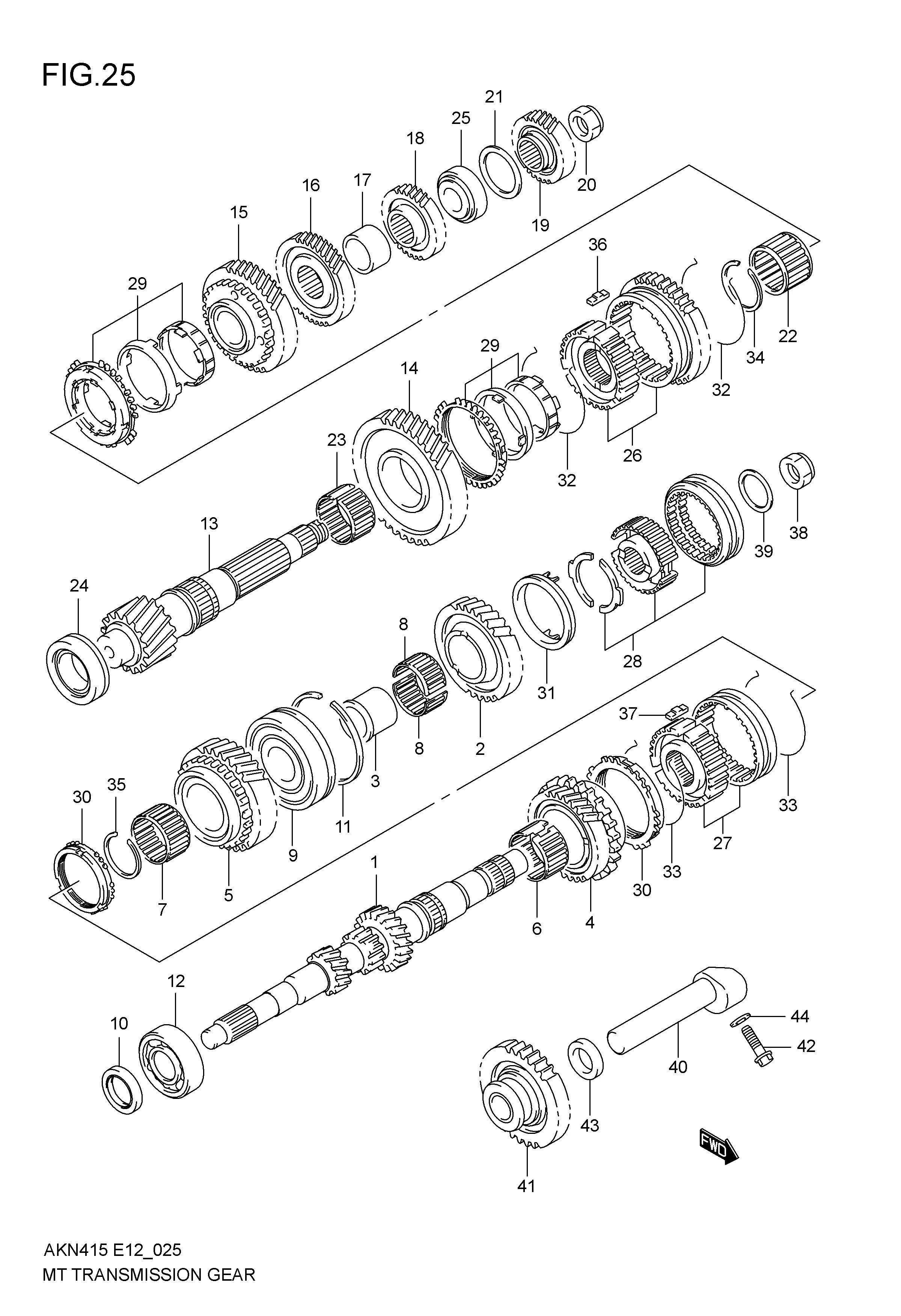

MT TRANSMISSION GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24111M50R00-000	SHAFT,TRANSAXLE INPUT	1	Rp2.088.500
2	24114M58R00-000	GEAR,INPUT SHAFT 5TH	1	Rp479.000
3-1	24119M79MB0-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp51.500	VENDOR:ASPEE SPRINGS LTD.
3-2	24119M79MB0-000	SPACER,INPUT SHAFT 5TH GEAR	1	Rp51.500	VENDOR:TIGHTWELL FASTNERS
4	24230M65M00-000	GEAR, INPUT SHAFT 3RD	1	Rp901.500
5	24240M55KA0-000	GEAR, INPUT SHAFT 4TH	1	Rp1.464.500
6	24283M86J00-000	BEARING, 3RD GEAR NEEDLE	1	Rp48.500
7	24284M86J00-000	BEARING, 4TH GEAR NEEDLE	1	Rp47.500
8	24285M79MA0-000	BEARING, 5TH GEAR NEEDLE	2	Rp25.000
9	24165M86J00-000	BEARING, INPUT SHAFT,LH	1	Rp195.000
10	24151M86J00-000	SEAL, INPUT SHAFT OIL	1	Rp18.500
11	09380-72002-000	RING, INPUT SHAFT,L SNAP	1	Rp42.500
12	24155M86J00-000	BEARING, INPUT SHAFT RIGHT	1	Rp186.500
13	24131M60M00-000	SHAFT, TRANSMISSION COUNTER	1	Rp2.047.000
14	24311M86JA0-000	GEAR, COUNTERSHAFT 1ST	1	Rp1.467.500
15	24321M86JA0-000	GEAR, COUNTERSHAFT 2ND	1	Rp1.386.500
16	24331M65M00-000	GEAR, COUNTERSHAFT 3RD	1	Rp686.500
17	24336M86J00-000	SPACER, 3RD & 4TH GEAR	1	Rp50.500
18	24341M55KA0-000	GEAR, COUNTERSHAFT 4TH	1	Rp421.500
19	24351M60M00-000	GEAR, COUNTERSHAFT 5TH	1	Rp352.000
20	09159-20009-000	NUT, COUNTERSHAFT	1	Rp74.000
21-8	09181-41011-000	SHIM (T:1.00)	1	Rp47.500
21-1	09181-41004-000	SHIM (T:0.65)	1	Rp44.000
21-2	09181-41005-000	SHIM (T:0.70)	1	Rp44.000
21-3	09181-41006-000	SHIM (T:0.75)	1	Rp44.000
21-4	09181-41007-000	SHIM (T:0.80)	1	Rp47.500
21-5	09181-41008-000	SHIM (T:0.85)	1	Rp44.000
21-6	09181-41009-000	SHIM (T:0.90)	1	Rp44.000
21-7	09181-41010-000	SHIM (T:0.95)	1	Rp44.000
21-9	09181-41012-000	SHIM (T:1.05)	1	Rp44.000
21-10	09181-41013-000	SHIM (T:1.10)	1	Rp44.000
21-11	09181-41014-000	SHIM (T:1.15)	1	Rp44.000
21-12	09181-41015-000	SHIM (T:1.20)	1	Rp44.500
22	24382M86J20-000 SUB: 24382M86J00-000	BEARING, 2ND GEAR NEEDLE	1	Rp117.000
23	24381M86J20-000	BEARING, 1ST GEAR NEEDLE	1	Rp56.500
24	09265-30021-000	BEARING ASSY, COUNTERSHAFT,RH	1	Rp321.000
25	09265-25041-000	BEARING ASSY, COUNTERSHAFT,LH	1	Rp283.500
26	24400M56RA0-000 SUB: 24400M86JA0-000	HUB ASSY, LOW SPEED SYNC	1	Rp736.500
27	24410M74LB0-000 SUB: 24410M74LA1-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.077.000
28	24420M79MA0-000	HUB ASSY, 5TH SPEED SYNC	1	Rp2.376.500
29	24430M86J00-000	RING ASSY, LOW GEAR SYNC	2	Rp909.500
30	24432M86J00-000	RING, HIGH SPEED SYNC	2	Rp139.000
31-1	24435M79MA0-000	RING, 5TH SPEED SYNC	1	Rp241.500	VENDOR:KYOWA NATESAN SYNCHRO PVT. LTD
31-2	24435-84A20-000	RING, 5TH SPEED SYNC	1	Rp280.500
32	24441-70C00-000	SPRING, LOW SPEED SYNC	2	Rp23.000
33	24442-70C00-000	SPRING, HIGH SPEED SYNC	2	Rp23.000
34	24451M78L00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp6.000
35	24452M86J00-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp10.000
36	24471-83M00-000	KEY, LOW SPEED SYNC	3	Rp37.500
37	24472-60B00-000	KEY, HIGH SPEED SYNC	3	Rp25.000
38	09159-20009-000	NUT, 5TH SPEED SYNC HUB	1	Rp74.000
39	09160M21022-000	WASHER, 5TH SPEED SYNC HUB	1	Rp5.500
40	DISCONTINUE SUB: 24551-70C02-000	SHAFT, TRANSAXLE REV GEAR	1	-
41	24560-70C60-000	GEAR, REVERSE IDLER	1	Rp924.000
42	24565M53M00-000	BOLT, REVERSE SHAFT	1	Rp9.500
43	09161-18004-000	WASHER, REVERSE GEAR SHAFT	1	Rp34.500
44	09168M08030-000	WASHER, REVERSE SHAFT BOLT	1	Rp6.500
