SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

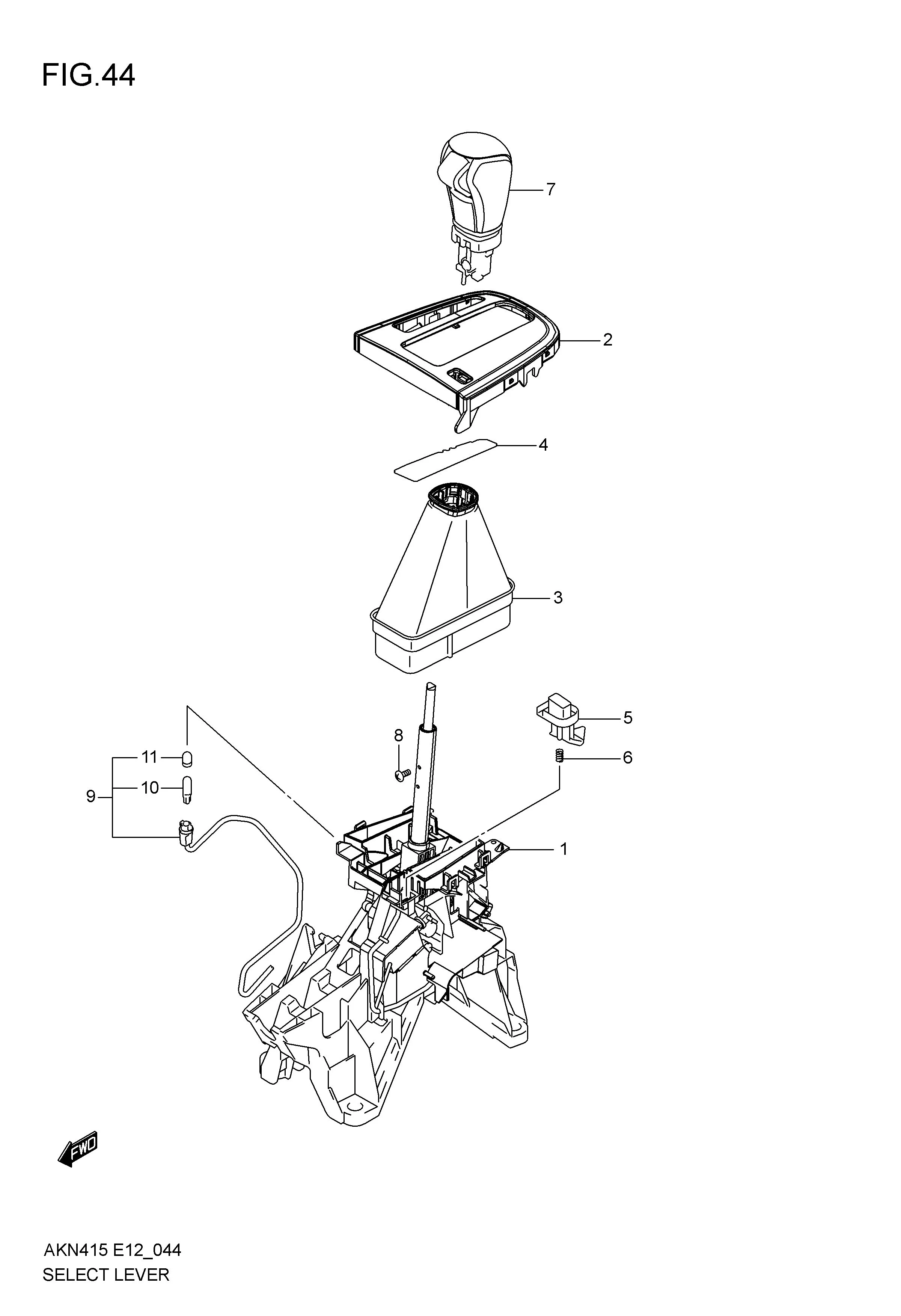

SELECT LEVER (6AT)

SELECT LEVER (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 28110M54PJ0-000 LEVER, SELECT 1 Rp1.539.500
2 28151M61M10-5PK INDICATOR, SELECT LEVER (BLACK) 1 Rp246.000
3 28152M61M10-W9J BOOT, SELECT LEVER (BLACK) 1 Rp672.500
4 28153M61M50-000 PLATE, SELECT POSITION 1 Rp323.500
5 28156M61M10-5PK BUTTON, SHIFT LOCK RELEASE (BLACK) 1 Rp77.500
6 28157M61M10-000 SPRING, SHIFT LOCK RELEASE 1 Rp45.500
7 28160M61M51-GJL
SUB: 28160M61M50-GJL		 KNOB ASSY, SELECT LEVER(BLACK-/SILVER) 1 Rp554.000
8 28166M61M10-000 SCREW, SELECT LEVER KNOB 2 Rp24.500
9 28180M65M50-000 LAMP ASSY, SELECT LEVER ILLUM 1 Rp264.000
10 28181M66M30-000 .BULB, ILLUM LAMP 1 Rp65.500
11 28182M66M30-000 .FILTER, ILLUM LAMP 1 Rp44.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
