SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

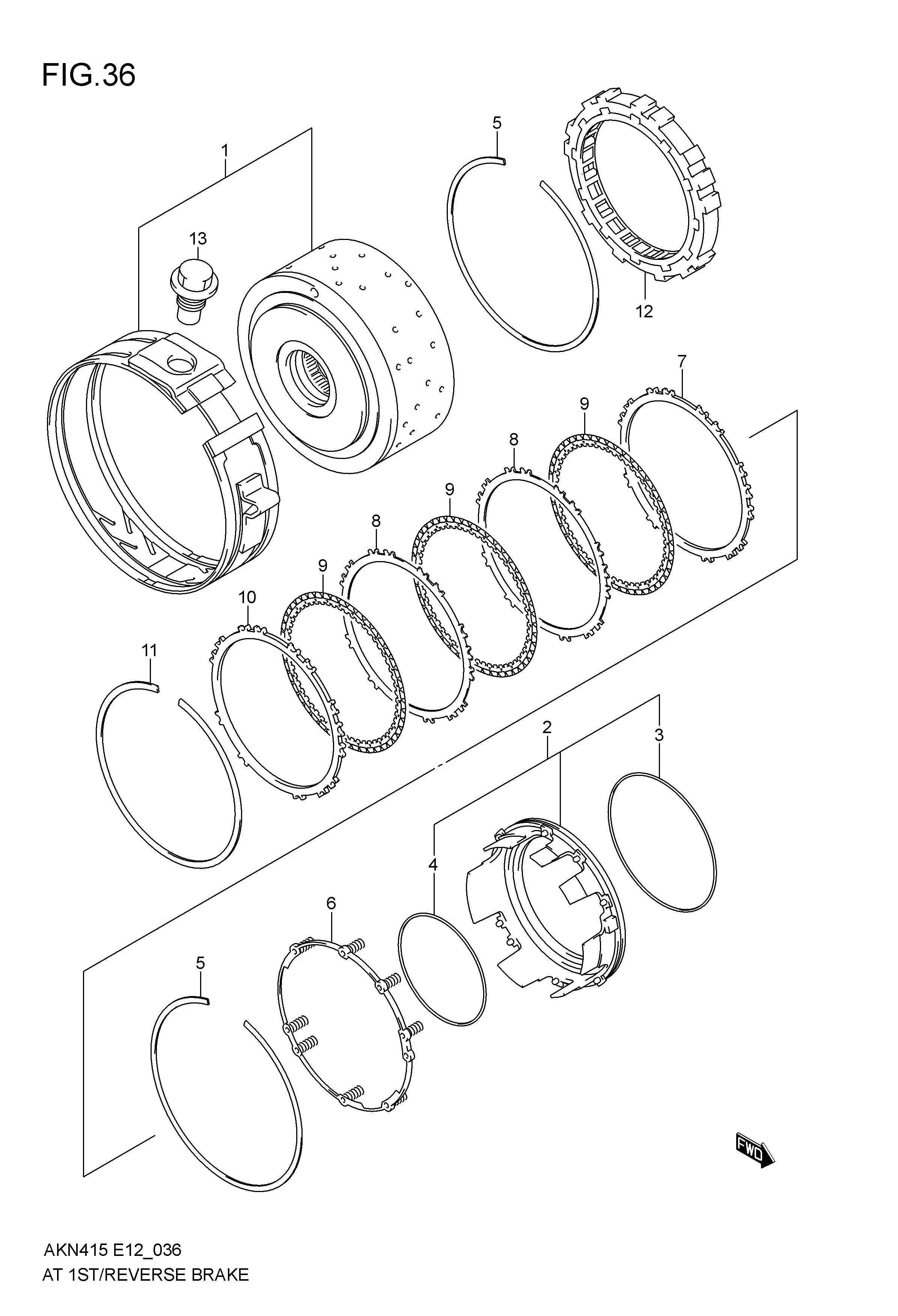

AT IST/REVERSE BRAKE (6AT)

AT IST/REVERSE BRAKE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 26800-78M10-000 CLUTCH ASSY, REVERSE 1 Rp10.657.500
2 26826-78MT0-000 PISTON SET, 1ST & REVERSE BRAKE 1 Rp1.124.500
3 26812-78M10-000 .O RING, PISTON OUTER 1 Rp208.500
4 26813-78M10-000 .O RING, PISTON INNER 1 Rp136.000
5 26814-78M10-000 RING, 1ST & REV BK SNAP NO.2 2 Rp120.500
6 26815-78M10-000 SPRING, 1ST & REV BK RTN 1 Rp245.000
7 26821-78M10-000 FLANGE, 1ST & REV BK NO.2 1 Rp1.090.000
8 26822-78M10-000 PLATE, 1ST & REV BK 2 Rp284.500
9 26823-78M10-000 DISC, 1ST & REV BK 3 Rp210.000
10 26824-78MT0-000 FLANGE SET, 1ST & REV 1 Rp1.884.000
11 26825-78M10-000 RING, 1ST & REV BK SNAP NO.1 1 Rp105.000
12 26851-78M10-000 CLUTCH ASSY, ONE WAY 1 Rp5.165.500
13 26771-78M10-000 BOLT, BRAKE BAND ANCHOR 1 Rp205.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
