SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

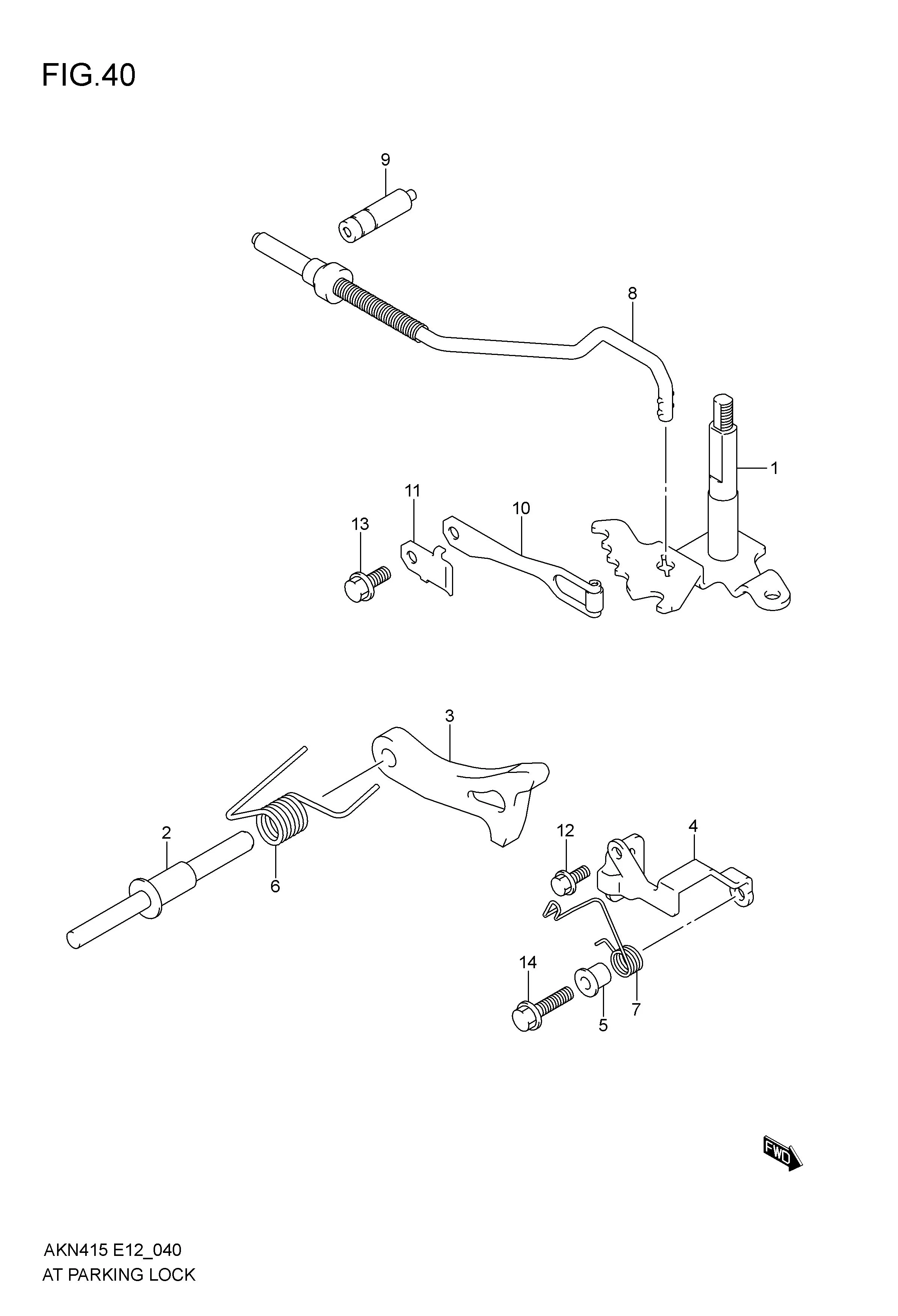

AT PARKING LOCK (6AT)

AT PARKING LOCK (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 25910-78M10-000 LEVER, MANUAL VALVE 1 Rp844.500
2 25911-78M10-000 SHAFT, PARKING LOCK PAWL 1 Rp144.000
3 25912-78M10-000 PAWL, PARKING LOCK 1 Rp637.000
4 25914-78M10-000 BRACKET, PARKING LOCK PAWL 1 Rp165.000
5 25915-78M10-000 SLEEVE, SPRING GUIDE 1 Rp66.000
6 25918-78M10-000 SPRING, PARKING LOCK PAWL 1 Rp96.500
7 25919-78M10-000 SPRING, PARKING GUIDE 1 Rp167.000
8 25920-78M10-000 ROD, PARKING LOCK 1 Rp480.500
9 25925-59J10-000 PIN, PARKING LOCK 1 Rp200.500
10 25961-78M10-000 SPRING, MANUAL DETENT 1 Rp264.500
11 25962-78M10-000 COVER, MANUAL DETENT SPR 1 Rp76.500
12 DISCONTINUE
SUB: 25991-60G10-000		 BOLT,PARKING LOCK PAWL BRACKET 1 -
13 DISCONTINUE
SUB: 25991-60G10-000		 BOLT,PARKING LOCK PAWL BRACKET 1 -
14 DISCONTINUE
SUB: 29985-57B00-000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
