SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

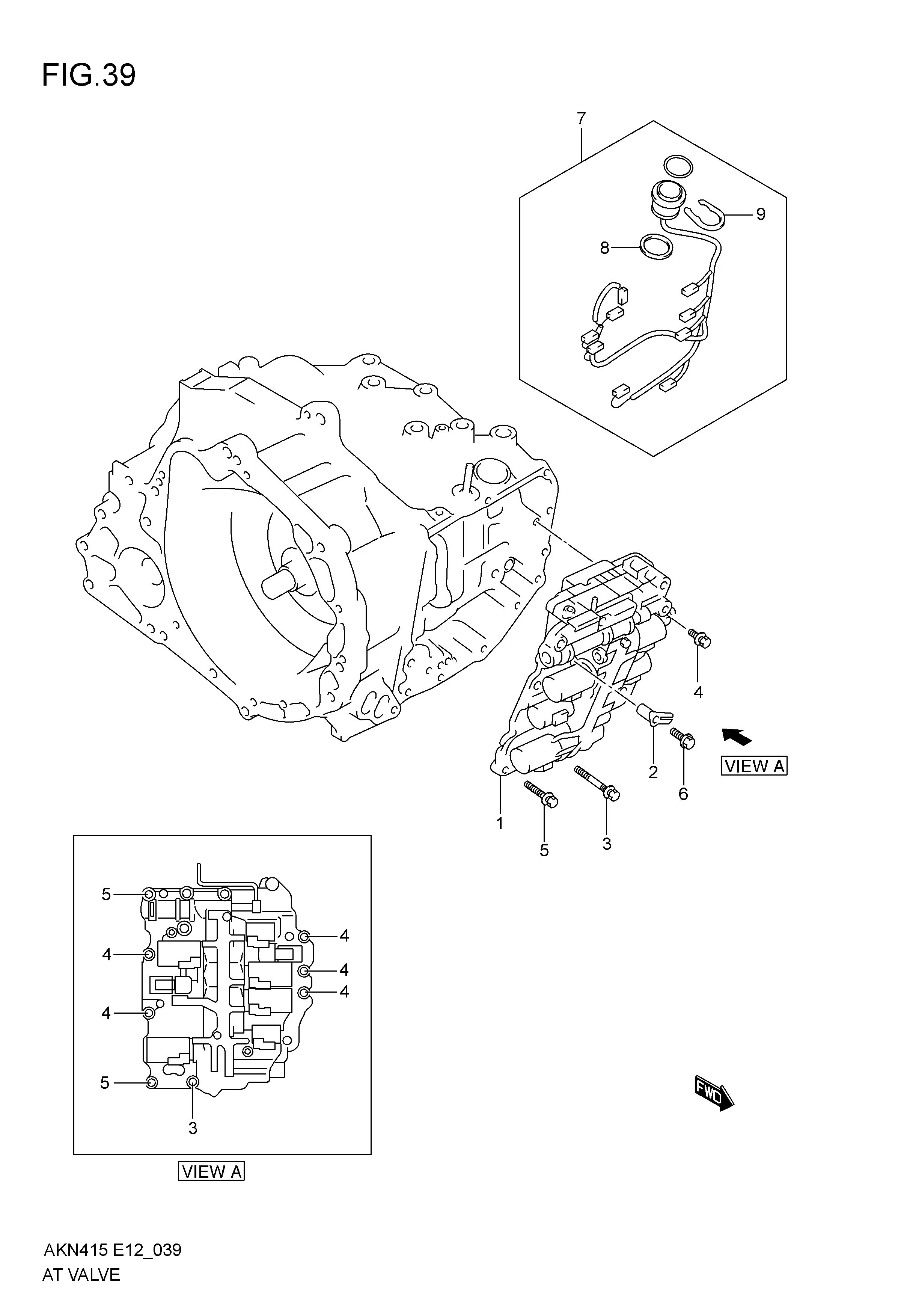

AT VALVE (6AT)

AT VALVE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 26500-78M10-000 BODY ASSY, T/M VALVE 1 Rp25.584.500
2 26512-78M10-000 CLAMP, TEMPERATURE SENSOR 1 Rp60.000
3 26586-73KR0-000 BOLT, T/M VALVE BODY ASSY NO.1 1 Rp83.000
4 26587-78M10-000 BOLT, T/M VALVE BODY ASSY NO.2 5 Rp57.500
5 26588-78M10-000 BOLT, T/M VALVE BODY ASSY NO.3 2 Rp57.500
6 29982-57B00-000 BOLT 1 Rp73.500
7 24772-78MT0-000 HARNESS SET, TRANSMISSION WIRE 1 Rp2.381.500
8 24771-78M10-000 .GASKET, TRANSAXLE CASE 1 Rp133.000
9 24772-78M10-000 .PLATE, T/M WIRE HARN LOCK 1 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
