SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

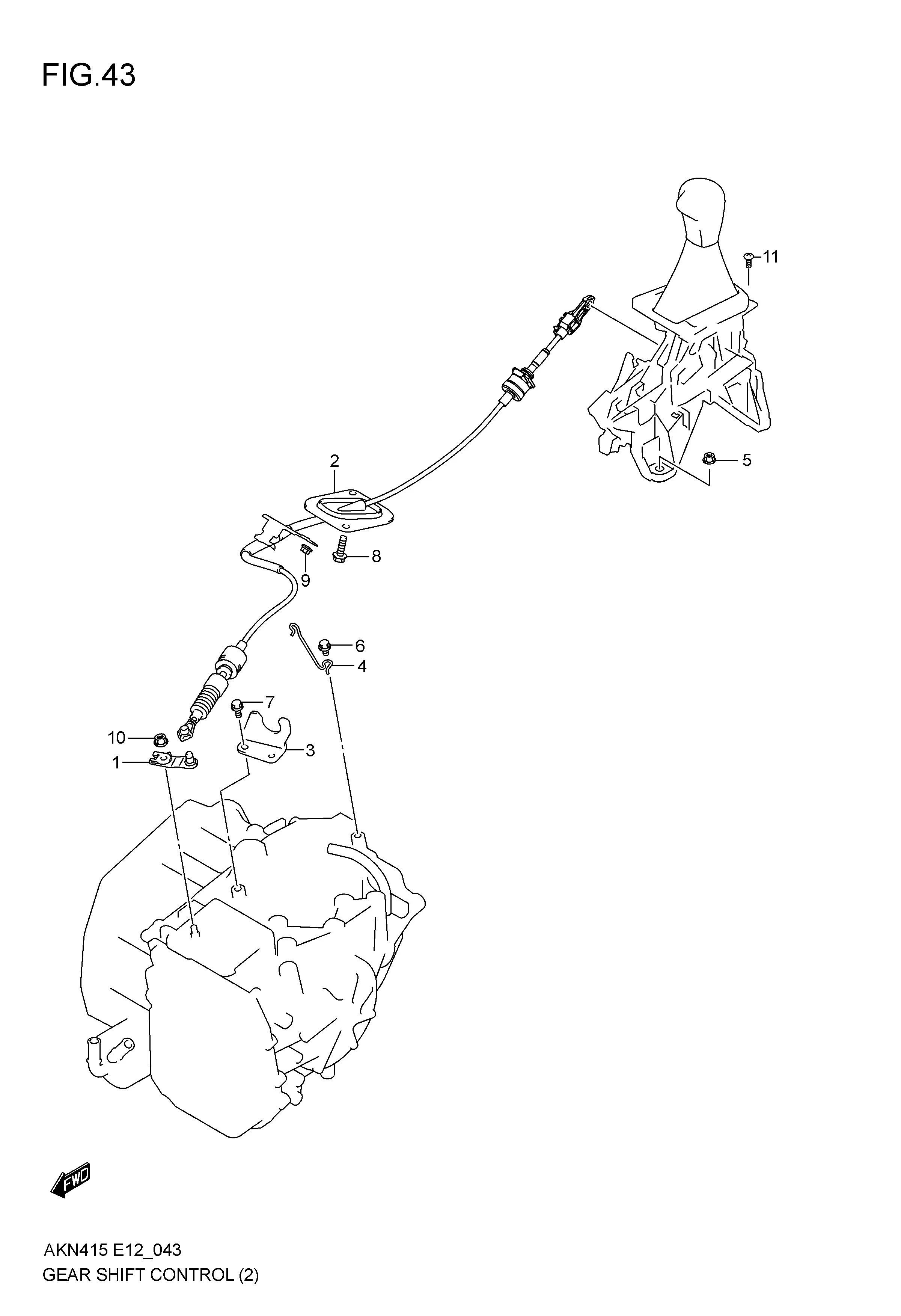

GEAR SHIFT CONTROL (6AT)

GEAR SHIFT CONTROL (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 25970M50R10-000 LEVER, MANUAL SELECT 1 Rp147.500
2 28210M65M10-000 CABLE ASSY, SELECT 1 Rp860.000
3 28221M50R10-000 BRACKET, SELECT CABLE 1 Rp33.000
4 28225M65M00-000 CLAMP, SELECT CABLE 1 Rp10.500
5 09159-08127-000
SUB: 09159M08153-000		 NUT 4 Rp11.000
6 01550-0812C-000 BOLT 1 Rp21.000
7 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
8 02162-0620A-000 BOLT 2 Rp5.500
9 08316-1006A-000 NUT 2 Rp2.000
10 08361-3508A-000 NUT 1 Rp14.000
11 03141-0516B-000 SCREW,FRONT CONSOLE 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
