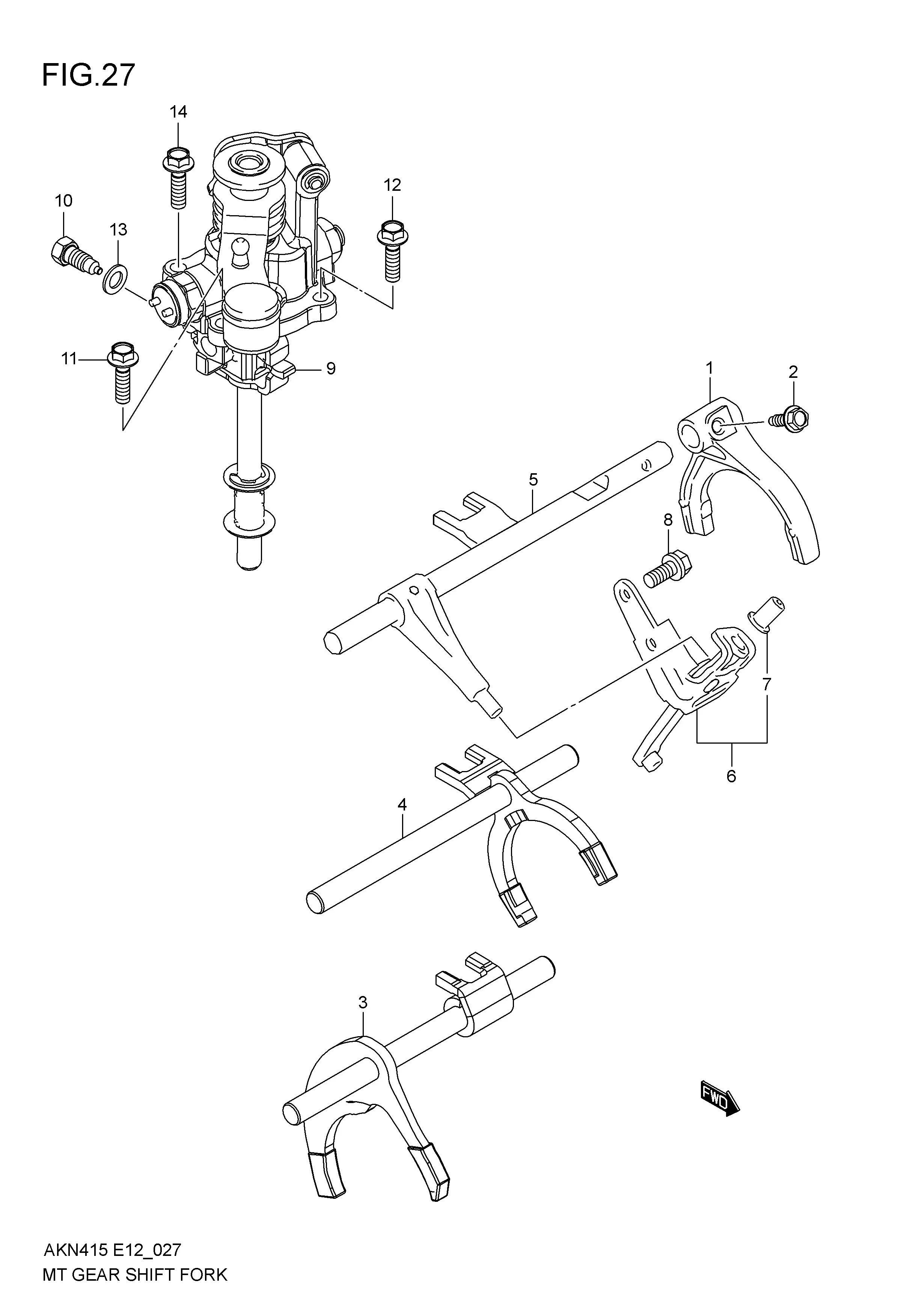

No	No. Part	Description	Qty	Price Per Pcs
1	25231M86J00-000	FORK, 5TH GEAR SHIFT	1	Rp89.500
2	25291-70C00-000	BOLT, GEAR SHF FORK SHAFT	1	Rp19.500
3	25401M86JA0-000	SHAFT, LOW SPEED GEAR SHIFT	1	Rp915.000
4	25402M86JA0-000	SHAFT, HIGH SPEED GEAR SHIFT	1	Rp670.500
5	25403M79MA0-000	SHAFT, 5TH & REV GR SHIFT	1	Rp621.500
6	25460M79MA0-000	LEVER, REVERSE GEAR SHIFT	1	Rp112.500
7	25250M53M20-000	.LOCATING, REV SHIFT	1	Rp20.500
8	01570-0820B-000	BOLT,REVERSE GEAR SHIFT LEVER	2	Rp31.000
9	25010M58R21-000 SUB: 25010M79M00-000	SHAFT ASSY, GEAR SHIFT & SELECT	1	Rp1.853.500
10	DISCONTINUE SUB: 25321-86G00-000	BOLT, GEAR SHF INTERLOCK	1	-
11	09103M08541-000	BOLT,GEAR SHF GUIDE CASE NO.3	1	Rp10.000
12	09103-08366-000	BOLT,GEAR SHF GUIDE CASE NO.2	2	Rp25.500
13	08322M0110A-000	WASHER,GEAR SHF INTLK BOLT	1	Rp4.500
14	01550-0825A-000	BOLT,GEAR SHF GUIDE CASE NO.1	1	Rp3.500
