SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

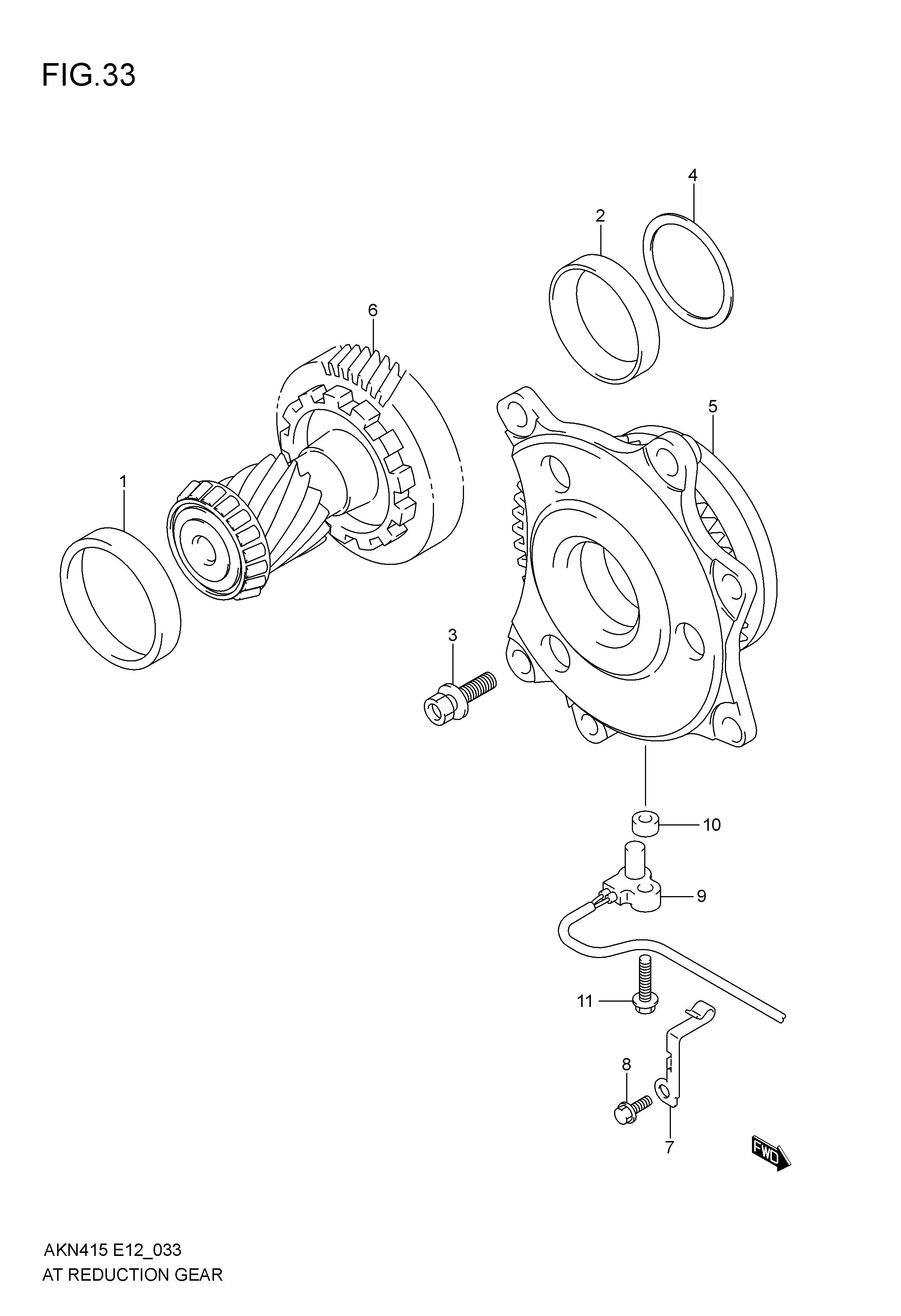

AT REDUCTION GEAR (6AT)

AT REDUCTION GEAR (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24142-78M10-000 RACE, BEARING OUTER NO.1 1 Rp364.000
2 24143-78M10-000 RACE, BEARING OUTER NO.2 1 Rp364.000
3 24144-78M10-000 BOLT, COUNTER DRIVE GEAR 6 Rp66.000
4 24147-78MT0-000 SHIM SET, COUNTERSHAFT BRG 1 Rp2.612.500
5 24611-54P10-000 GEAR, COUNTER DRIVE 1 Rp9.742.500
6 24631-65M70-000 GEAR ASSY, PNN & CNTR DRIVEN 1 Rp6.839.500
7 24727-78M10-000 CLAMP, WIRING 1 Rp47.000
8 DISCONTINUE
SUB: 25991-60G10-000		 BOLT,MANUAL DETENT SPRING COMP 1 -
9 26132-78M10-000 SENSOR, SPEED OUTPUT 1 Rp1.458.000
10 26142-54P10-000 SPACER, SPEED OUTPUT SENSOR 1 Rp119.000
11 29971-57B00-000 BOLT 1 Rp69.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
