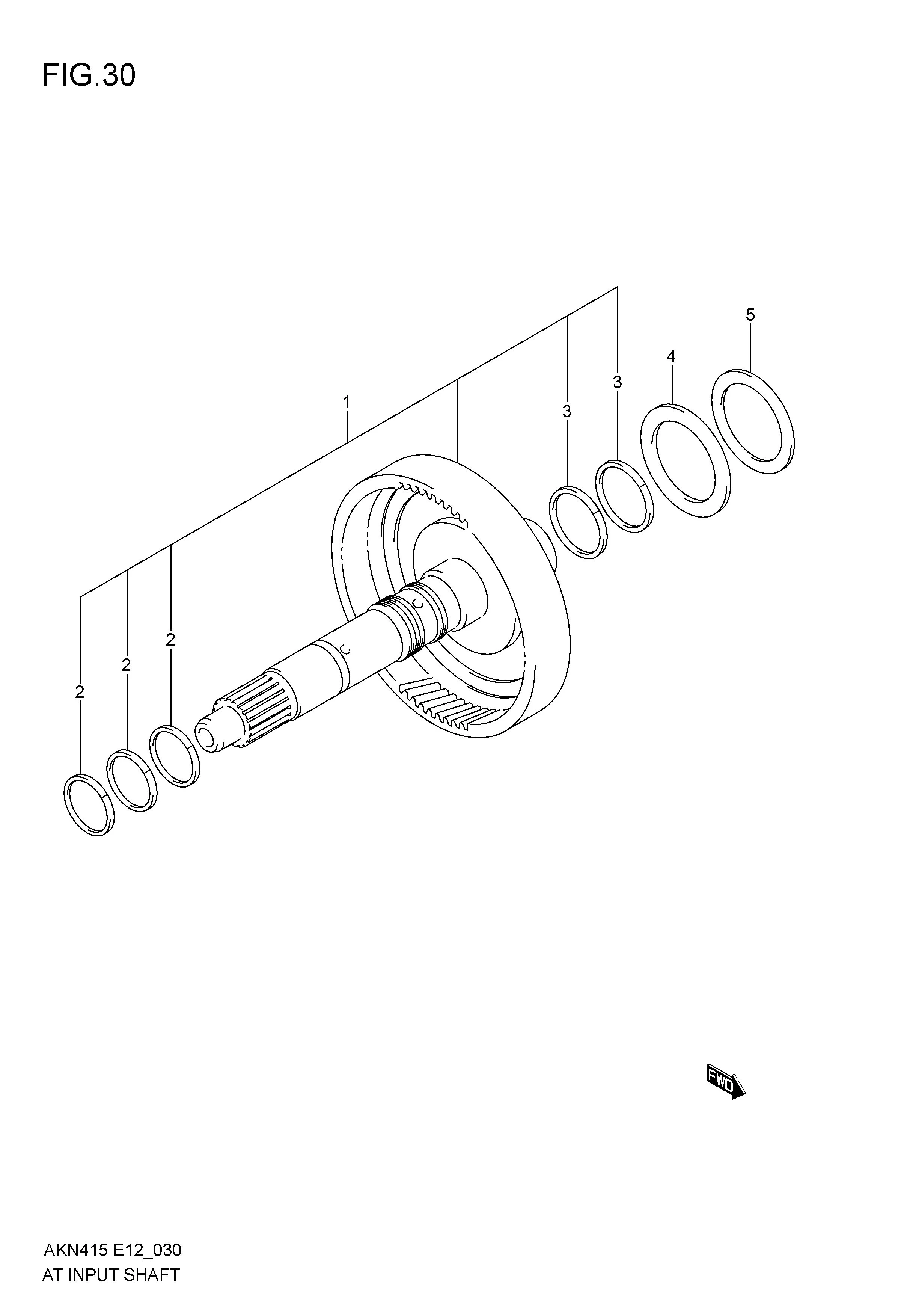

AT INPUT SHAFT (6AT)

AT INPUT SHAFT (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24100-78MT0-000 SHAFT SET, INPUT 1 Rp4.081.000
2 24191-78M10-000 .RING, INPUT SHAFT OIL SEAL NO. 1 3 Rp80.000
3 24192-78M10-000 .RING, INPUT SHAFT OIL SEAL NO. 2 2 Rp80.000
4 24122-78M10-000 BEARING, INPUT SHAFT THR 1 Rp372.000
5 24123-78M10-000 RACE, INPUT SHAFT THR BEARING 1 Rp55.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
