SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

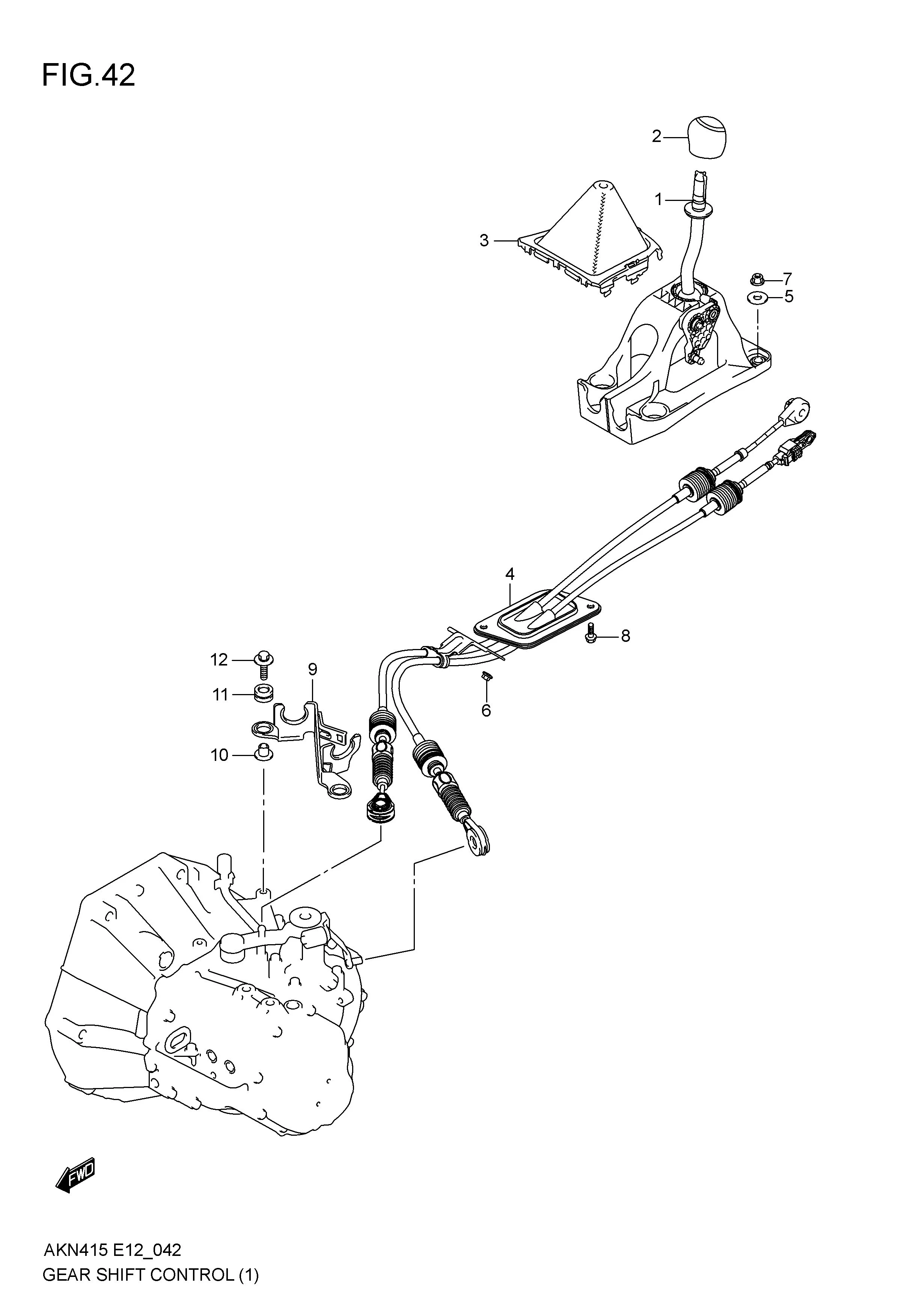

GEAR SHIFT CONTROL (5MT)

GEAR SHIFT CONTROL (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 28100M71M00-000 LEVER ASSY, GEAR SHF CONT 1 Rp639.500
2 28113M79M41-C48
SUB: 28113M79M00-C48		 KNOB, GEAR SHIFT CONT LEVER 1 Rp155.000
3 28130M65M01-5PK
SUB: 28130M65M00-5PK		 BOOT, SHIFT LEVER 1 Rp112.000
4 28300M65M40-000 CABLE ASSY, SHIFT & SELECT CONT 1 Rp1.290.000
5 09160-08151-000 WASHER,GR SHF CONT CABLE GUIDE 4 Rp16.500
6 08316-1006A-000 NUT,GR SHIFT CONT CABLE CLAMP 2 Rp2.000
7 09159-08127-000
SUB: 09159M08153-000		 NUT,SHIFT LEVER 4 Rp11.000
8 02162-0620A-000 BOLT,CONT CABLE GROMMET COVER 2 Rp5.500
9 28391M50R00-000 BRACKET, T/M CONT CABLE 1 Rp117.500
10 28392M55KD0-000 SPACER, T/M CONT CABLE BRACKET 3 Rp8.000
11 28393M79M00-000 CUSHION, T/M CONT CABLE BRACKET 3 Rp20.500
12 09118-08167-000 BOLT,T/M CONT CABLE BRACKET 3 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
