SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

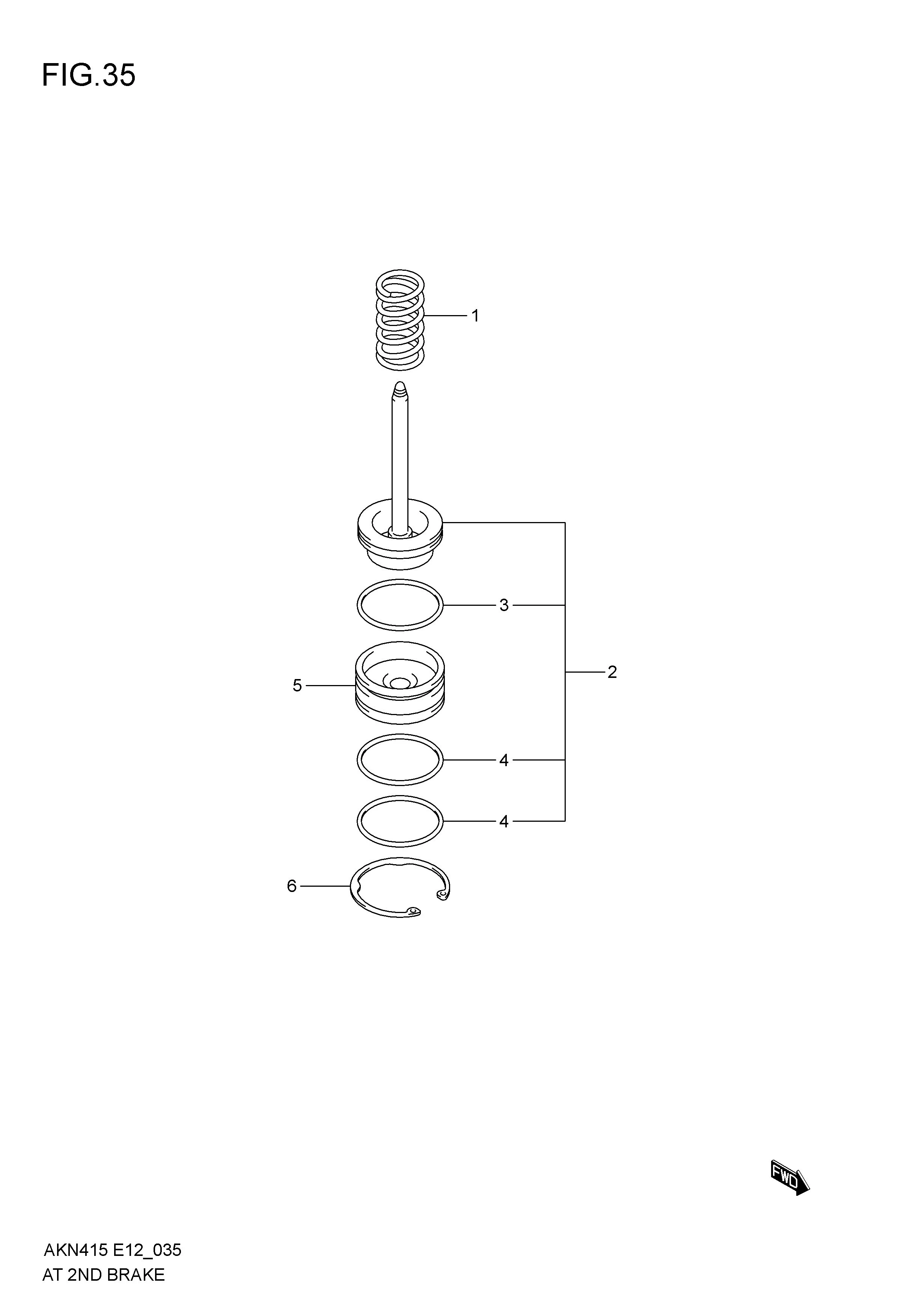

AT 2ND BRAKE (6AT)

AT 2ND BRAKE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 26732-78M10-000 SPRING, B1 BRAKE PISTON 1 Rp117.000
2 26731-78MT0-000 PISTON SET, B1 BRAKE 1 Rp2.853.000
3 26733-78M10-000 .O RING, B1 BRAKE PISTON 1 Rp38.500
4 26733-78M10-000 .O RING, B1 BRAKE PISTON 2 Rp38.500
5 26751-78M10-000 COVER, BRAKE PISTON 1 Rp381.000
6 26752-78M10-000 RING, BRAKE PISTON COVER SNAP 1 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
