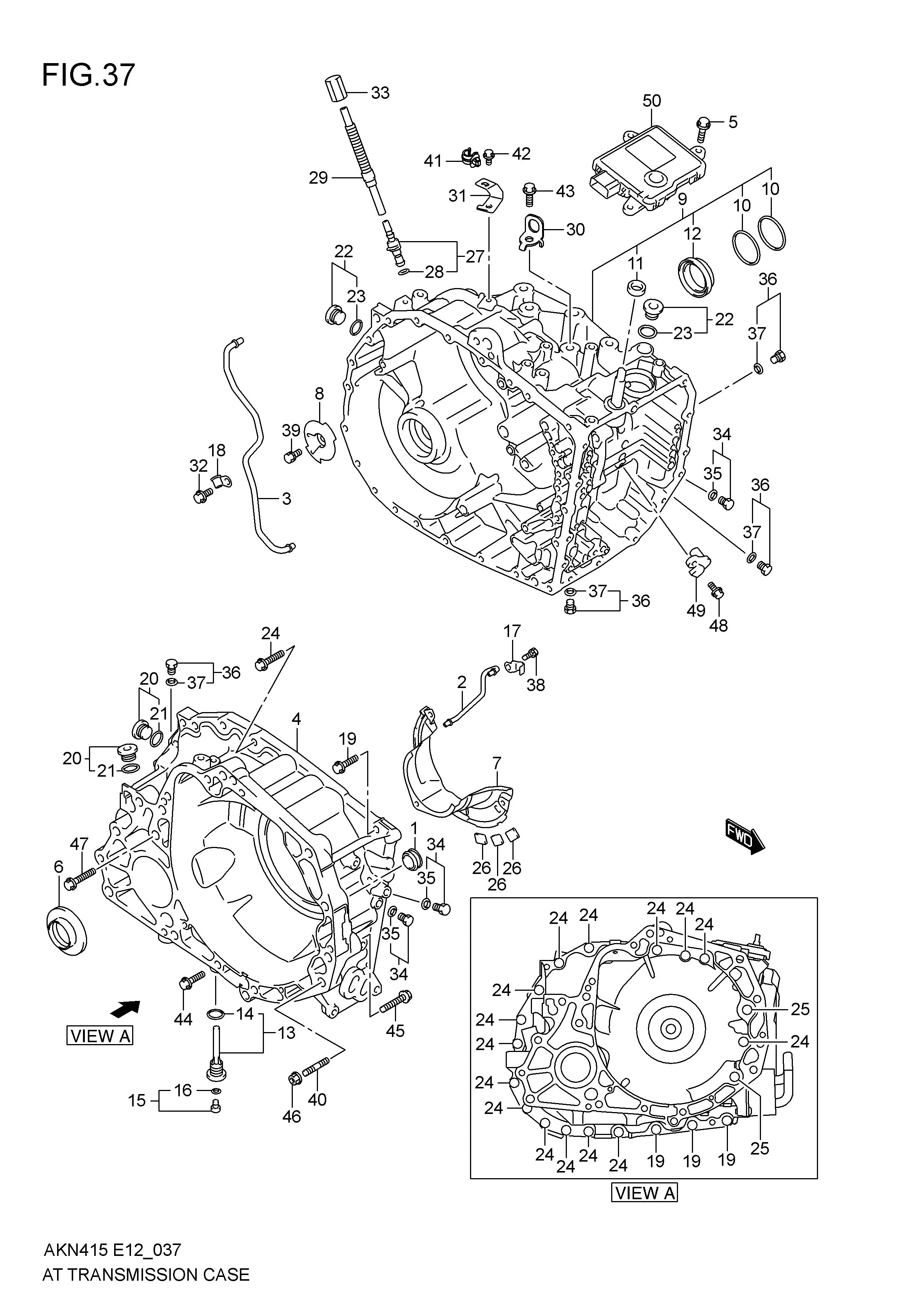

AT TRANSMISSION CASE (6AT)

No	No. Part	Description	Qty	Price Per Pcs
1	22641-54P10-000	CAP,HOUSING	1	Rp93.500
2	24700-78M10-000	TUBE, DIFF GEAR LUB APPLY	1	Rp321.500
3	24701-78M10-000	TUBE, TRANSAXLE LUB APPLY	1	Rp208.000
4	24710-78MT0-000	HOUSING SET,TORQUE CONVERTER	1	Rp16.628.000
5	22893-79C10-000	BOLT	3	Rp22.500
6	27611-78M10-000	SEAL, DIFF SIDE OIL RH	1	Rp207.000
7	24711-78M10-000	PLATE, OIL RESERVOIR LOCK	1	Rp267.000
8	24712-78M10-000	PLATE, TRANSMISSION CASE	1	Rp106.500
9	24720-78MT0-000	CASE SET, TRANSAXLE	1	Rp21.982.000
10	24715-78M10-000	.RING, CLUTCH DRUM OIL SEAL	2	Rp244.000
11	25981-60G10-000	.OIL SEAL	1	Rp73.000
12	27612-78M10-000	.SEAL, DIFF SIDE OIL LH	1	Rp174.500
13	24721-78MT0-000	PLUG SET, DRAIN NO.1	1	Rp203.000
14	29726-57B00-000	.O-RING	1	Rp107.000
15	24722-78MT0-000	PLUG SET, DRAIN NO.2	1	Rp113.500
16	29738-57B00-000	.O-RING	1	Rp47.500
17	24725-59J10-000	CLAMP, DIFF RH BRG LUB PIPE	1	Rp40.000
18	24725-59J10-000	CLAMP, DIFF RH BRG LUB PIPE	1	Rp40.000
19	24725-79C10-000	BOLT, T/C HOUSING NO.1	4	Rp26.500
20	24726-59JT0-000	PLUG SET, NO.1	2	Rp113.500
21	DISCONTINUE SUB: 24842-60G10-000	.O-RING	2	-
22	24726-59JT0-000	PLUG SET, NO.1	2	Rp113.500
23	DISCONTINUE SUB: 24842-60G10-000	.O-RING	2	-
24	24729-60G10-000	BOLT	16	Rp61.000
25	24729-60G10-000	BOLT	2	Rp61.000
26	DISCONTINUE SUB: 24745-59J00-000	MAGNET, OIL CLEANER	3	-
27	24776-78MT0-000	PLUG SET, BREATHER	1	Rp85.000
28	24774-78M10-000	.O RING, BREATHER PLUG	1	Rp61.000
29	24775-78M10-000	HOSE, BREATHER	1	Rp247.500
30	24855-54P10-000	HOOK, TRANSMISSION	1	Rp31.000
31	24860-50R10-000	BRACKET, BREATHER HOSE	1	Rp41.500
32	DISCONTINUE SUB: 25991-60G10-000	BOLT,TRANSAXLE LUB APPLY TUBE	1	-
33	27991-65D01-000	PLUG, BREATHER	1	Rp22.500
34	29849-57BT0-000	PLUG SET, NO.2	3	Rp137.000
35	29738-57B00-000	.O-RING,NO.2 PLUG	3	Rp47.500
36	29849-57BT0-000	PLUG SET, NO.2	4	Rp137.000
37	29738-57B00-000	.O-RING,NO.2 PLUG	4	Rp47.500
38	29970-57B00-000	BOLT,OIL RESERVOIR LOCK PLATE	3	Rp83.000
39	29970-57B00-000	BOLT,TRANSMISSION CASE PLATE	1	Rp83.000
40	09108-12012-000	STUD BOLT	1	Rp35.000
41	09403-11320-000	CLAMP	1	Rp21.500
42	01550-0612C-000	BOLT	1	Rp19.500
43	01550-1020C-000	BOLT	1	Rp38.000
44	01550-1035C-000	BOLT	2	Rp34.500
45	01550-1255A-000	BOLT	4	Rp31.000
46	08316-1012A-000 SUB: 08316B1012AN000	NUT	1	Rp6.500
47	01550-1250B-000	BOLT	2	Rp37.000
48	DISCONTINUE SUB: 25991-60G10-000	BOLT	1	-
49	26131-78M10-000	SENSOR, SPEED INPUT	1	Rp1.448.000
50	38880-65M70-000	CONTROLLER ASSY, AT	1	Rp13.157.500
