SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

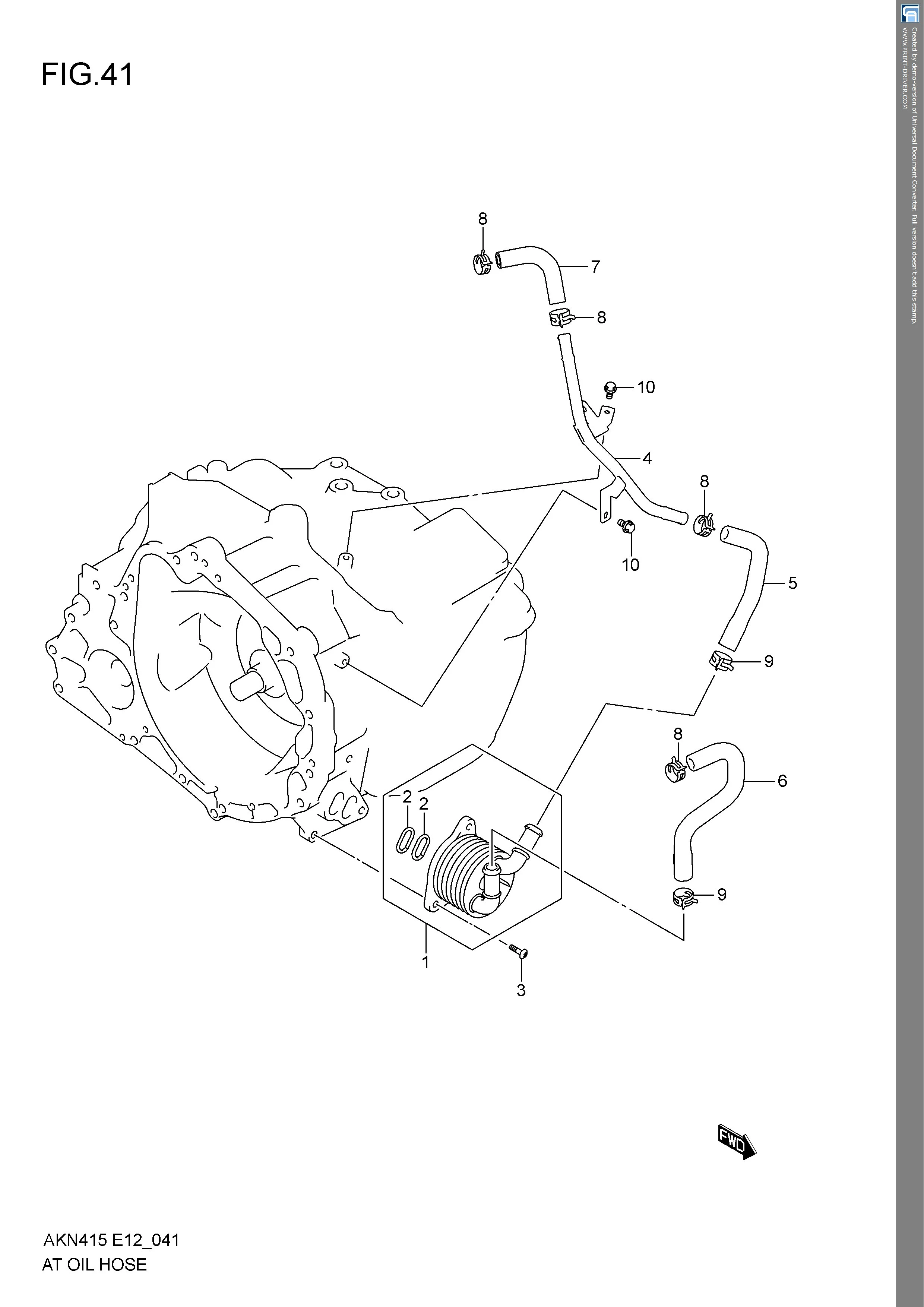

AT OIL HOSE (6AT)

AT OIL HOSE (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24777-78MT0-000 COOLER SET, OIL 1 Rp3.640.000
2 24779-78M10-000 .O RING, OIL COOLER ASSY 2 Rp81.000
3 24778-78M10-000 SCREW, OIL COOLER ASSY 3 Rp37.000
4 22911-54P10-000 PIPE, OIL COOLER 1 Rp650.500
5 22931-54P10-000 HOSE, OIL COOLER NO.1 1 Rp121.000
6 22932-54P10-000 HOSE, OIL COOLER NO.2 1 Rp135.000
7 22933-54P10-000 HOSE, OIL COOLER NO.3 1 Rp86.000
8 11199M68K00-000 CLIP 4 Rp11.000
9 09401-20407-000 CLIP 2 Rp27.000
10 01550-0612B-000 BOLT 2 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
