SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL MT CLUTCH (5MT)MT TRANSMISSION GEAR (5MT)MT TRANSMISSION CASE (5MT)MT GEARSHIFT FORK (5MT)AT TRANSMISSION ASSY (6AT)AT OIL PUMP (6AT)AT INPUT SHAFT (6AT)AT DIRECT CLUTCH (6AT)AT PLANETARY GEAR (6AT)AT REDUCTION GEAR (6AT)AT FORWARD CLUTCH (6AT)AT 2ND BRAKE (6AT)AT IST/REVERSE BRAKE (6AT)AT TRANSMISSION CASE (6AT)AT OIL PAN (6AT)AT VALVE (6AT)AT PARKING LOCK (6AT)AT OIL HOSE (6AT)GEAR SHIFT CONTROL (5MT)GEAR SHIFT CONTROL (6AT)SELECT LEVER (6AT)FRONT DIFFERENTIAL GEAR (5MT)FRONT DIFFERENTIAL GEAR (6AT)

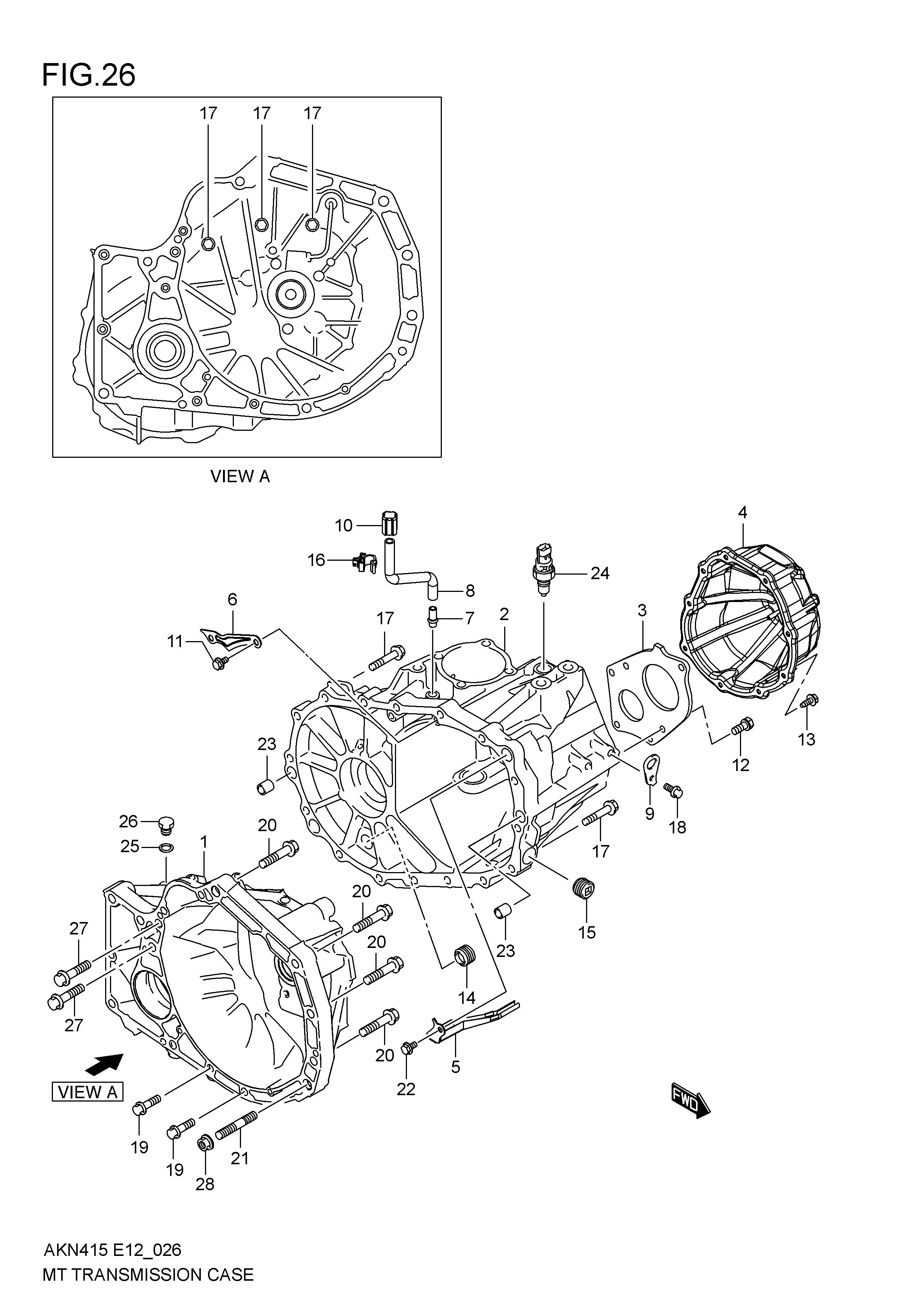

MT TRANSMISSION CASE (5MT)

MT TRANSMISSION CASE (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24711-61MA3-000 CASE, TRANSMISSION RIGHT 1 Rp6.368.000
2 24721M65MA0-000 CASE, TRANSMISSION LEFT 1 Rp6.318.000
3 24725M60MA1-000 PLATE, T/M LEFT BRG STOPPER 1 Rp239.500
4 24730M86J00-000 COVER, TRANSAXLE SIDE 1 Rp140.000
5 DISCONTINUE
SUB: 24810-70C00-000		 GUTTER, INPUT OIL 1 -
6 24815M86J00-000 PLATE, BREATHER COVER 1 Rp8.500
7-1 24821M79F00-000 UNION, BREATHER 1 Rp88.500 VENDOR:K.R.RUBBERITE LTD
7-2 24821M79F20-000 UNION, BREATHER 1 Rp8.000 VENDOR:SERVICES ENGG INDUSTRIES
8 24825M74LA0-000 HOSE, BREATHER 1 Rp12.000
9 24855M65MA0-000 HOOK, T/M 1 Rp9.000
10 27991M79G00-000 PLUG, BREATHER 1 Rp35.000
11 09103M06518-000 BOLT, BREATHER PLATE 2 Rp9.000
12 24728-60MA0-000 BOLT, T/M LH BRG STOPPER PLATE 6 Rp31.000
13 09135-06027-000 BOLT, T/M SIDE COVER 9 Rp15.000
14 09246-16021-000
SUB: 09246-16010-000		 PLUG, T/M OIL DRAIN 1 Rp48.000
15 09246M16009-000 PLUG, T/M OIL 1 Rp14.500
16 24829M68K00-000 CLAMP, BREATHER HOSE 1 Rp6.500
17 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 16 Rp3.500
18 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
19 01550-1250B-000 BOLT 2 Rp37.000
20 01550-1255A-000 BOLT 4 Rp31.000
21 09108-12012-000 BOLT 1 Rp35.000
22 09103M06518-000 BOLT 1 Rp9.000
23 04211M13189-000 PIN, T/M CASE KNOCK 2 Rp9.000
24 37610M68K00-000 SWITCH ASSY, BACK UP LAMP 1 Rp141.000
25 09168-14011-000 GASKET, OIL FILLER PLUG 1 Rp11.500
26 09247-14029-000 PLUG, OIL FILLER 1 Rp15.000
27 01550-1035A-000
SUB: 01550B1035AN000		 BOLT,T/M STIFFENER 2 Rp5.500
28 08316-1012A-000
SUB: 08316B1012AN000		 NUT,BLOCK & T/M CASE 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
