SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPEFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROLFIG.22 LABEL

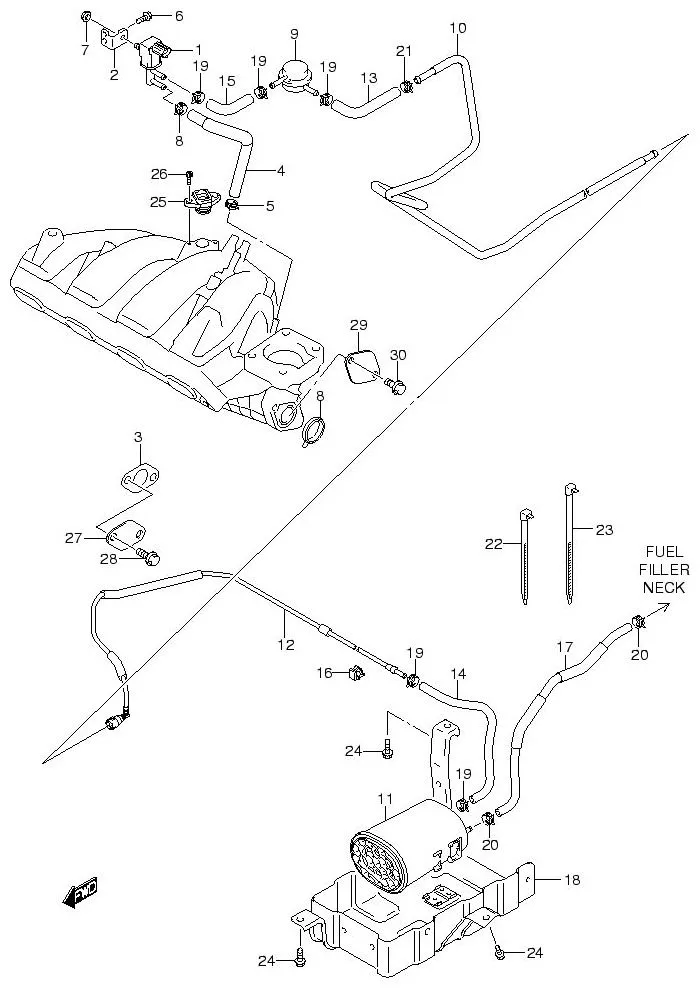

FIG.21 EMISSION CONTROL

FIG.21 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18117-52G00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp840.500
2 DISCONTINUE
SUB: 18417-63J00-000		 BRACKET 1 -
3 18529-69G00-000 GASKET 1 Rp23.500
4 18564-80JA0-000 HOSE, PURGE (VSV TO INMF) 1 Rp103.000
5 09401M11419-000 CLIP 2 Rp6.000
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
8 18534-86G00-000 GASKET, EGR VALVE 1 Rp56.500
9 18145-83E00-000
SUB: 18145M83E00-000		 CHAMBER, PURGE VALVE 1 Rp71.000
10 18351-79J00-000
SUB: 18351B79J00N000		 PIPE, PURGE 1 Rp178.000
11 18560-76A31-000 CANISTER 1 Rp1.041.500
12 18561-80J10-000 PIPE, CSTR PURGE 1 Rp607.500
13 DISCONTINUE
SUB: 18562B80JA0N000		 HOSE, PURGE (PIPE TO CHMB) 1 -
14 DISCONTINUE
SUB: 18562B80J00N000		 HOSE, CSTR PURGE (CSTR TO PIPE) 1 -
15 DISCONTINUE
SUB: 18563B80JA0N000		 HOSE, PURGE (CHMB TO VSV) 1 -
16 DISCONTINUE
SUB: 18568-80J10-000		 CLAMP 2 -
17 DISCONTINUE
SUB: 18569B80J10N000		 HOSE, CSTR AIR SUCTION 1 -
18 DISCONTINUE
SUB: 18570-80J10-000		 BRACKET 1 -
19 09401M11419-000 CLIP 5 Rp6.000
20 09401-12405-000
SUB: 09401-12404-000		 CLIP 2 Rp16.500
21 09401-12410-000 CLIP 1 Rp15.000
22 DISCONTINUE
SUB: 09407-13402-000		 CLAMP (L:130) 1 -
23 DISCONTINUE
SUB: 09407-29402-000		 CLAMP (L:290) 1 -
24 01551-0816C-000 BOLT 3 Rp13.500
25 DISCONTINUE
SUB: 18591-80JB0-000		 GASKET, MAP SENSOR 1 -
26 DISCONTINUE
SUB: 07130-0516A-000		 BOLT 2 -
27 DISCONTINUE
SUB: 18491-80GA0-000		 PLATE, EGR VALVE 1 -
28 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
29 18492-60J00-000 PLATE, EGR PIPE 1 Rp40.500
30 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
