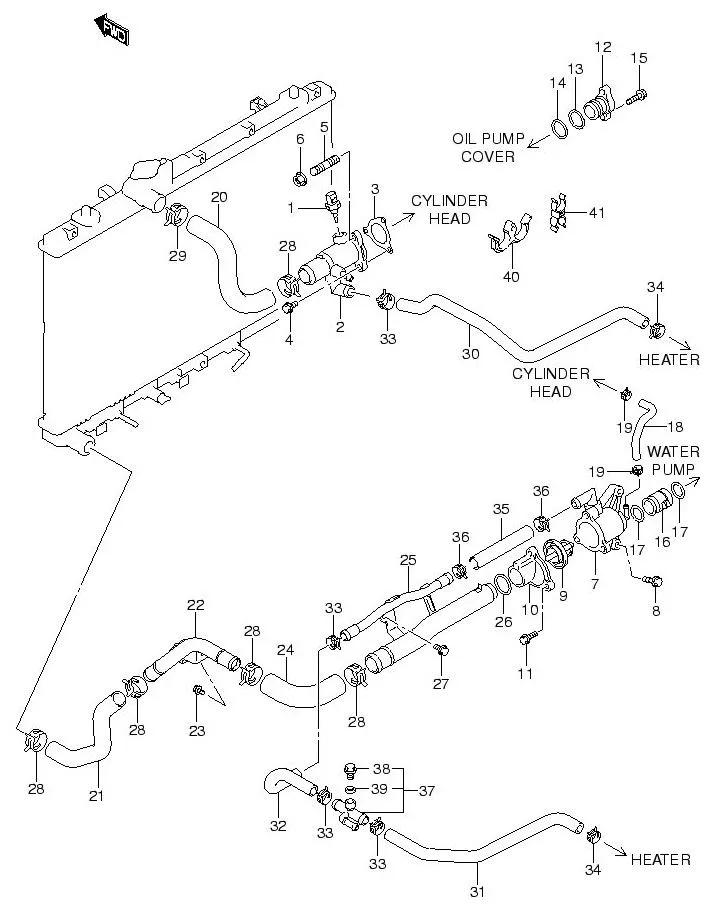

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17570-86G00-000 CAP, WATER OUTLET 1 Rp408.000
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
5 01421-0825A-000 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
7 17690-80JA0-000 CASE, THERMOSTAT 1 Rp757.000
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
9 17670-65D00-000 THERMOSTAT, WTR (82C) 1 Rp301.500
10 17561-80JA0-000 CAP, WATER THERMOSTAT 1 Rp205.500
11 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
12 17581-69G00-000 CAP, WATER OUTLET 1 Rp319.000
13 17582-54D00-000 O-RING, NO.1 (D:3.5,ID:30.7) 1 Rp29.000
14 17583-54D00-000 O-RING, NO.2 (D:3.8,ID:27.7) 1 Rp32.000
15 01550-0845A-000 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, CASE WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 2 Rp2.500
18 17698-63J00-000 HOSE, WATER BYPASS 1 Rp67.500
19 09401-12410-000 CLIP 2 Rp15.000
20 17852-80JA0-000
SUB: 17852B80JA0N000		 HOSE, RADIATOR INLET 1 Rp45.500
21 17854-80JA0-000
SUB: 17854B80JA0N000		 HOSE, RADIATOR OUTLET 1 Rp56.500
22 17860-80JA0-000 PIPE, WTR INLET NO.2 1 Rp356.500
23 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
24 DISCONTINUE
SUB: 17853B69G00N000		 HOSE, WATER INLET 1 -
25 17840-86G00-000 PIPE, WATER INLET NO.1 1 Rp549.000
26 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 1 Rp2.500
27 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
28 09401-35403-000 CLIP 5 Rp46.000
29 09401-35403-000 CLIP 1 Rp46.000
30 17871-81K00-000
SUB: 17871B81K00N000		 HOSE, HEATER INLET 1 Rp37.500
31 17872-81K00-000
SUB: 17872B81K00N000		 HOSE, HEATER OUTLET NO.1 1 Rp39.500
32 17874-63J00-000 HOSE, HEATER OUTLET NO.2 1 Rp93.000
33 09401-21405-000 CLIP 4 Rp25.000
34 09401-21405-000 CLIP 2 Rp25.000
35 17873-81K00-000
SUB: 17873B69G00N000		 HOSE, WATER BYPASS 1 Rp16.500
36 09401-21405-000 CLIP 2 Rp25.000
37 17879-86G00-000 UNION, HEATER 1 Rp165.000
38 17568-50F00-000 •UNION, AIR VENT 1 Rp35.500
39 09168-06026-000 •GASKET (6.4X11.5X0.8) 1 Rp20.000
40 DISCONTINUE
SUB: 09408-00117-000		 CLIP 1 -
41 09408-00166-000 CLAMP 1 Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
